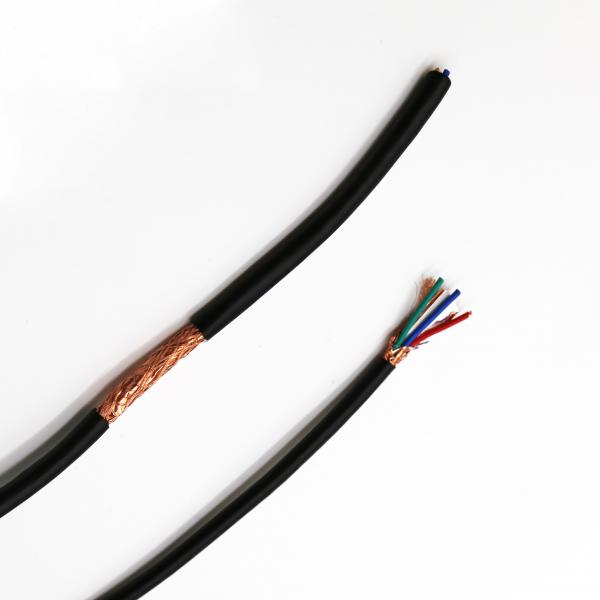

YSLY-CY Cable Multi Core PVC Insulated And PVC Sheathed Flexible Cable With Screen RVVP Cable
YSLY-CY Cable Multi Core PVC Insulated And PVC Sheathed Flexible Cable With Screen RVVP Cable image
Brand Name :
JHY CABLE
Model Number :
YSLY-CY (rvvp)
Certification :
ROHS/CCC/VDE/CE/UL/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
10kilometer
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 kilometr per Day
Delivery Time :
7-10 Days
Packaging Details :
100m/Roll
Conductor Material :
Copper
Rated Voltage :
300/500V,300/300V
Conductor :
Class 5 fine annealed copper wires
Insulation :
PVC
Shielded :
Al foil + tinned copper wire braiding
working temperature :
-15~70°c
Nominal Area(mm2) :
0.5,0.75,1.0,1.5,2.5,4,6
Standard :
IEC60227, BS6500, VDE0281, GB/T 5023, JB/T8734
MOQ :
10000m
YSLY-CY Cable Multi Core PVC Insulated And PVC Sheathed Flexible Cable With Screen RVVP Cable
Production Description
| Brand Name | JHY CABLE |
| Original Country | China |
| Conductor | Class 5 fine annealed copper wires |
| Pruduct Photo | |
| Insulation | PVC |
| Shield | Al foil + tinned copper wire braiding or PVC bedding + tinned copper wire braiding |
| Sheath | PVC |
| Rated Voltage | 300/500v,300/300v |
| Working Temperature | -15 to 70 ℃ |
| Packing | 100m/roll or as request |
| OEM order | YES |
| Standard | IEC60227, BS6500, VDE0281, GB/T 5023, JB/T8734 |
Production Application
These screened cables are used inside as power or control cables for installations and connections on machine tools or static or dynamic apparatus.
Product photo
Technical Date:
Company Introduction
SHENZHEN JINHUANYU WIRE AND CABLE CO., LTD, was established in 1993, is a professional manufacturer with research, development, production, sales and service of Electric Wires, Power Cables, Communication Cables, and other Wire and Cables. The company is located in Songgang Street, Baoan District, Shenzhen City, Guangdong Province, China.
Jinhuanyu Cables
1) Bare Conductor, Bare Copper Wire, Bare Aluminum Wire.
2) 450/750V and below PVC Insulateted Electrical Wires and Power Cables.
3) 450/750V XLPE (Cross linked polyethylene) Insulated Electrical Wires and Power Cables.
4) 0.6/1kV PVC Insulated Power Cables.
5) 0.6/1kV XLPE (Cross linked polyethylene) Insulated Power Cables.
6) 8.7/15kV, 3.6/6kV, 6/10kV, 12/20kV, 18/30kV, 26/35kV XLPE(Cross linked polyethylene) Insulated Power Cables.
7) 450/750V and below Control Cables.
8) 1kV Aerial Bundled Cables.
9) 10kV Aerial Bundled Cables.
10) Aluminum Cables, AAC (All Aluminum Cables), AAAC (All Alloy Aluminum Cables), ACSR (Aluminum Conductor Steel Reinforced Cables).
11) Fire Resistant Cables, Fire Retardant Cables, Fire Rated Cables, LSZH (Low Smoking Zero Halogen) Cables, RoHs Cables, and Environmental Protection Cables.
12) Other Special Electrical Wires and Power Cables: Irradiation Cross-linked Cables, Frequency Converter Cables, Corrugated Aluminum Armored Cables, Rubber Cables and other Wires and cables.
13) Communication Cables:
a. Network Cables: Cat 5, Cat 5e, Cat 6 Cables;
b. Telephone Cables: 2 Pairs, 4 Pairs, 8 Pairs Cables;
c. Coaxial Cables: SYV75-5, SYWV75-5, RG 6, RG 11, RG 59 Cables.
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. Website: Http://www.sz-hy.cn Website on alibaba.com: sz-jhy.en.alibaba.com |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China YSLY-CY Cable Multi Core PVC Insulated And PVC Sheathed Flexible Cable With Screen RVVP Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Flexible Electrical Cable, sheathed electrical cable, shielded electrical cableSimilar Or Related
-
