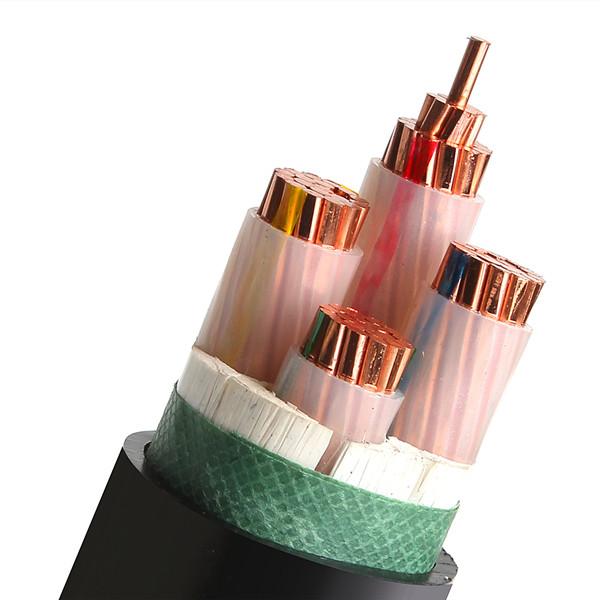

YJV 4x95mm2 XLPE Insulated Power Cables
YJV 4x95mm2 XLPE Insulated Power Cables image
Brand Name :
Hongyan, Hong Xin Yan
Model Number :
YJV-4x95mm2
Certification :
ISO, CE, CCC, RoHS.
Place of Origin :
Shenzhen City, China.
MOQ :
200 meters each size/specification in an order.
Price :
USD29.3031 per meters.
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10,000 meters per week.
Delivery Time :
Within 7-10 working days as soon as we received the deposit.
Packaging Details :
Wooden drum with IPPC as per ISPM 15 policy, or others packing type according to customer request.
Product Name :
U-1000 R02V Copper Conductor XLPE Insulated YJV 4x95mm2 Power Cables
Product Keywords :
U-1000 R2V, R02V, YJV 4x95mm2, BS 7889, 6181X, 6182X, 6183X, 6184X, 6185X, YJV power cable, CV power cable, CU/XLPE/PVC, CU/XLPE/PVC/PVC cable.
Product Conductor :
Plain Annealed Copper Wire, Strand Class 2.
Insulated Material :
XLPE (Cross-Linked Polyethylene)
Insulated Colour :
Brown, Blue, Black, Yellow/Green.
Sheath Material :
Polyvinyl Chloride (PVC)
Voltage Rate :
0.6/1kV, 600/1000V
Production Standard :
GB/T 12706-2020, IEC 60502, BS 7870.
Product Size :
4×95 mm2
Sheath Colour :
Black, or Others.
U-1000 R02V Copper Conductor XLPE Insulated YJV 4x95mm2 Power Cables
PRODUCTS KEY-WORDS
U-1000 R2V, R02V, YJV 4x95mm2, BS 7889, 6181X, 6182X, 6183X, 6184X, 6185X, YJV power cable, CV power cables, CU/XLPE/PVC, CU/XLPE/PVC/PVC cables.
PRODUCTS APPLICATION
U-1000 R02V Copper Conductor XLPE Insulated YJV 4x95mm2 Power Cables, Plain Annealed Copper Wire, XLPE Insulated, PVC Inner Sheath, Without Armored, PVC Sheathed YJV Power Cables, 0.6/1kV, meet to GB/T 12706, IEC 60502, BS 7870.
It suitable for installation in areas with reduced risk of mechanical damage; on tray, in free air or clipped direct. Suitable also for conduit and wiring installations when mechanical protection is required.
PRODUCTS STRUCTURE
| Items No. | Description of Cables |
| Product Name |
U-1000 R02V Copper Conductor XLPE Insulated YJV 4×95 mm2 Power Cables. |
| Conductor Material | Plain Anneal Copper Wire, Strand Class 2. |
| Conductor Structure | 4C, 19/2.50mm. |
| Insulation Material | XLPE (Cross-Linked Polyethylene) |
| Insulation Thickness | 1.1 mm. |
| Insulation Colour | Brown, Bluel, Black, Yellow/Green. |
| Inner Sheath Material | PVC (Polyvinyl Chloride) |
| Sheath Material | PVC (Polyvinyl Chloride) |
| Sheath Thickness | 2.1 mm. |
| Core Numbers | 4 Cores, 4C. |
| Size Range | 4 x 95 mm2. |
| Refer Out Diameter | 36.0 mm. |
| Refer Net Weight | 4085 kgs/km. |
| Voltage Rate | U0/U: 0.6/1kV, 600/1000V, Um: 1.2kV, 1200V. |
| Working Temperature |
Maximum Operating: +90ºC Maximum Short-Circuit: +250°C |
| Bending Radius | Minimum: 20 x overall diameter. |
| Production Standard | GB/T 12706-2020, IEC 60502, BS 7870. |
PRODUCTS REMARK
—The above information is for reference only, please refer to the exact technical parameters according to the actual product.
—The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
—Shenzhen Hongyan: Focus on Quality, Foremost Service.
—Shenzhen Hongyan: It's your Production Base, Overseas Warehouse, Purchase Consulant, Marketing Assistant in Wire and Cables industry.
COMPANY VIEW
WHY CHOOSE US?
1) Reasonable Price, Over-value Products, Quickly Delivery, Foremost Services.
2) ISO9001, CCC, CB, CE, RoHS, National Hi-Tech Enterprises, and other certificates.
3) The supplier for State Grid Corporation of China, China Southern Power Grid more than 3 years.
4) Access to 2 expressways within 15 minutes, to Shenzhen airport or seaport within 1.5 hours.
5) 2 professional engineers, 8 rigorous QC staff, total 208 experienced workers.
6) Familiar with international standards, such as GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL and other standards; Can be customized according to customer requirements of various wire and cables.
MAIN PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
PRODUCTS PACKING
PRODUCTS WAREHOUSE
PRODUCTS SHIPMENT
FAQ
1. Are you the manufacturer or trading company?
Shenzhen Hongyan Wire Industry Co., Ltd, is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit our company, we'll pick you up in Shenzhen airport or high-speed Railways Station.
2. How can I get a sample to test your quality?
Shenzhen Hongyan can provide the free sample to you, but you will pay the express charges.
3. What's your Minimum Order Quantity?
For electrical wire, the MOQ is 3000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, we suggests that the MOQ of electrical wires should be more than 5000 meters, and the MOQ of power cable should be more than 500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
We are China YJV 4x95mm2 XLPE Insulated Power Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 4x95mm2 XLPE Insulated Power Cables, 4x95mm2 yjv22 cable, XLPE Insulated Power Cables, YJV XLPE Insulated Power CablesSimilar Or Related
