XLPE Quadruplex Overhead Service Drop Cable For 120 Volt Outdoor Lighting

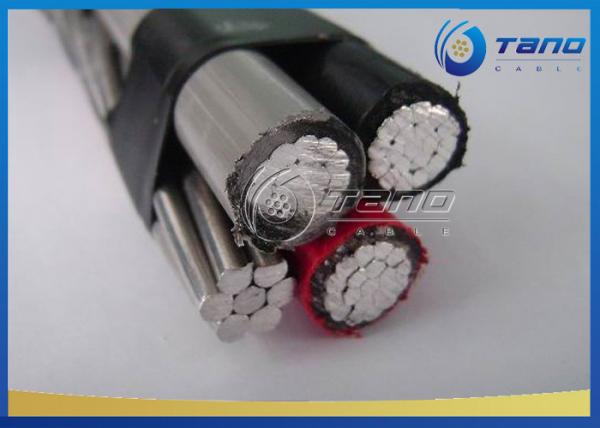

XLPE Quadruplex Overhead Service Drop Cable For 120 Volt Outdoor Lighting image
Brand Name :
TANO CABLE
Model Number :
Quadruplex Service Drop Cable
Certification :
ISO
Place of Origin :
CHINA
MOQ :
3000M
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 km Per Month
Delivery Time :
5-30 working days
Packaging Details :
By roll, wooden drum or steel-wooden drum
conductor :
Aluminum, ACSR
insulation :
XLPE
voltage :
0.6/1kV
application :
overhead
name :
Quadruplex Service Drop Cable
certification :
ISO
TANO CABLE 2/0 3/0 4/0 6AWG Aluminum Wire Conductor XLPE Quadruplex Service Drop ABC Cable
APPLICATION
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLP) XLPE insulated conductors.
CONSTRUCTION
Phase Core Conductor: Hard drawm Aluminum Wire
Neutral Conductor: ACSR
Insulation: XLP
DESCRIPTION
Tano Cable's duplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Tano Cable's duplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
TECHNICAL SPECIFICATION
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | 1 | 45 | 6 | 43252 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 43252 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 43252 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 43252 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 43252 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 43252 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 43252 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 43252 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 43252 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 43252 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 43118 | 8680 | 1568 | 1568 | 370 | 280 |
| *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP). +Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun. |
||||||||||
FACTORY OVERVIEW
PACKING
THE THIRD PARTY INSPECTION
WORK SHOP OVERVIEW
We are China XLPE Quadruplex Overhead Service Drop Cable For 120 Volt Outdoor Lighting manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
