XLPE PVC Insulation Concentric Cable , Concentric Neutral Cable Aluminum Copper Conductor

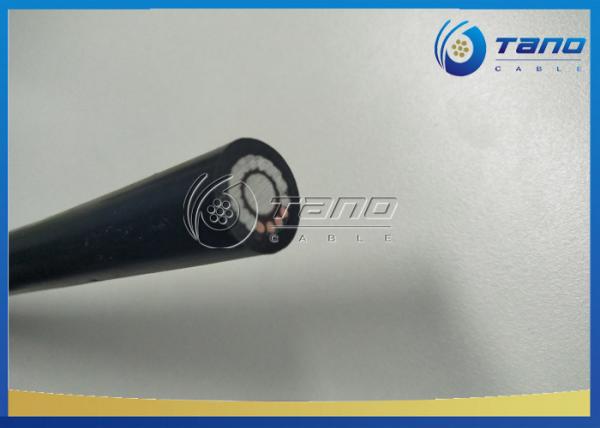

XLPE PVC Insulation Concentric Cable , Concentric Neutral Cable Aluminum Copper Conductor image
Brand Name :
TANO CABLE
Model Number :
Concentric cable
Certification :
CE
Place of Origin :
zhengzhou, China
MOQ :
5000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000KM per Month
Delivery Time :
7-20 working days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
conductor :
aluminum /copper/Aluminum Alloy Wire S8000
Neutral Conductor :
aluminum /copper/Aluminum Alloy Wire S8000
insulation :
XLPE
sheath :
XLPE
Feature :
High Reliability
Standard :
ASTM
XLPE PVC Insulation Concentric Cable , Concentric Neutral Cable Aluminun Copper Conductor
Application
The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 75ºC and its voltage of service for all the applications is 600V.
Technical Specification
Type 1: ASTM Standard Circular Type Concentric Cables
1. Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2. Insulation: XLPE
3. Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
4. Binder Tape: Polyester Tape or Semi-conducting Tape
5. Outer Sheath: XLPE
Technical Particulars
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | Approx.Weight | ||||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km | kg/km | kg/km |
| 2×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 | 101 |
| 2×10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 | 77 |
Type 2: ASTM Standard Flat Type Concentric Cables
1. Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2. Insulation: XLPE
3. Inner Sheath:PVC
4. Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
5. Binder Tape: Polyester Tape or Semi-conducting Tape
1. Outer Sheath: XLPE
Technical Particulars
| Size | Phase Conductor | XLPE Insulation | Inner Sheath | Neutral Conductor |
XLPE Sheath | Approx.Weight | |||||
| Structure | O.D | Thickness | O.D | Thickness | Structure | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | mm | mm | mm | mm | No./mm | mm | mm | kg/km | kg/km | kg/km |
| 3×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 0.7 | 65/0.41 | 1.14 | 16.59×10.62 | 396 | 227 | 233 |
| 3×6 | 7/1.55 | 4.65 | 1.14 | 6.93 | 0.7 | 65/0.52 | 1.14 | 18.73×11.80 | 551 | 297 | 307 |
| 3×4 | 7/1.96 | 4.98 | 1.14 | 8.16 | 0.7 | 65/0.65 | 1.52 | 22.21×14.05 | 830 | 427 | 443 |
| 3×2 | 7/2.47 | 7.41 | 1.14 | 9.69 | 0.7 | 65/0.83 | 1.52 | 25.63×15.94 | 1233 | 587 | 613 |
We are China XLPE PVC Insulation Concentric Cable , Concentric Neutral Cable Aluminum Copper Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
