XLPE Insulation Medium Voltage Cable

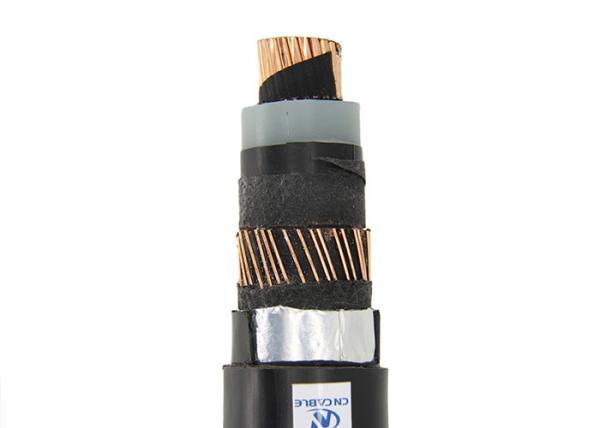

XLPE Insulation Medium Voltage Cable image
Model Number :MV CABLE
Certification :IEC
Place of Origin :Henan
MOQ :1000meters
Payment Terms :L/C, T/T
Delivery Time :20 days
Packaging Details :wooden drum. iron-wooden drum
Conductor :Copper Conductor
Insulation :XLPE
Shield :Copper Tape
Size :400mm
Application :Waterproof cable
Core :Single core
24KV (12/20KV) Single Core Copper Wire Shielded Aluminum Tape Wrapped Waterproof Underground Cable
APPLICATION:The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
CONSTRUCTION
| Conductor | Copper Conductor |
| Insulation | XLPE (Cross-Linked Polyethylene) |
| Shield | Copper Tape |
| Sheath | MDPE (Medium Density Polyethylene)/PVC/XLPE |
| Wrap | Aluminum Tape |
| Conductor Size | 400mm2 |
Advantage:
We can produce according to the required standard.
| 24KV (12/20KV) Single Core 400mm2 Copper Underground Cable | ||||
| Size | Insulation thickness | Outer Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight |
| mm2 | mm | mm | mm | kg/km |
| 240 | 5.5 | 2.1 | 37.6 | 1486 |
| 300 | 5.5 | 2.2 | 40 | 1728 |
| 400 | 5.5 | 2.3 | 43 | 2062 |
| 500 | 5.5 | 2.4 | 46.2 | 2432 |
| 630 | 5.5 | 2.5 | 50 | 2903 |
We are China XLPE Insulation Medium Voltage Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
