XLPE Insulated Overhead Aluminum Triplex Service Drop ABC Cable 2*2/0+2/0AWG

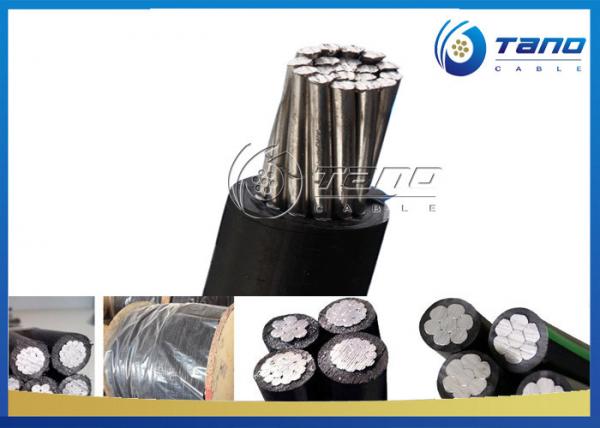

XLPE Insulated Overhead Aluminum Triplex Service Drop ABC Cable 2*2/0+2/0AWG image
Brand Name :
TANO CABLE
Model Number :
triplex service drop cable
Certification :
CCC ISO CE
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Delivery Time :
5-20 days
Packaging Details :
Wood Wood/Steel
Conductor material :
Aluminum
Insulation material :
XLPE,PE/XLPE,XLPE or PVC
Application :
Overhead,overhead power transmission line
Standard :
ASTM,ASTM BS DIN IEC
Rated voltage :
0.6/1KV
Core :
3,Triplex Core
Sample :
free sample available
ASTMB-232 XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG
XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG:
Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
Service Drop Cable: Duplex, Triplex and Quadruplex
Voltage: 600V
I. XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG Application
Used for lighting, outdoor lighting, & temporary service for construction.
II. XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG Operating characteristics
Voltage: 600V phase to phase
Max conductor temperature: 75C (PVC Insulation)
Max conductor temperature: 90C (XLPE Insulation)
III. XLPE Insulated Overhead Aluminum triplex service drop ABC Cable 2*2/0+2/0AWG Installation:
For service at 600 volts or less (phase to phase) at a maximum conductor temperature of 75C for Polyethylene insulation or 90C for Cross-Linked (XLPE) insulation
IV. Specifications
B-230 Aluminum Wire, 1350-H19 for electrical purposes
B-231 Aluminum Conductors, concentric-lay-stranded
B-232 Aluminum Conductors, concentric-lay-stranded, coated steel reinforced(ACSR)
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B-498 Zinc-coated Steel Core Wire for Aluminum Conductors, steel reinforced(ACSR/AZ)
Service Drop cable meets or exceeds all aplicable requierements ofANSI/ICEA S-76-474.
1.STANDARDS
National : ICEA S-76-474
2.DESCRIPTION
Duplex Overhead Secondary Distribution Cable assemblies consist of one insulated phase conductor and a bare neutral conductor. They are intended for use either as a service drop cable between a power pole and the service entrance, or as a secondary distribution cable between poles. Their use should be limited to circuits not exceeding 600 volts phase-to-phase and a 90°C normal conductor temperature.
3.Phase Conductor Construction
The phase conductor is aluminum alloy 1350-H19 hard-drawn, compressed concentric-lay-stranded.
4.Neutral Conductor Construction
5.Cable assemblies are available with the following neutral conductors:
Aluminum conductors, coated-steel reinforced (ACSR), concentric-lay-stranded
Aluminum alloy 1350-H19 hard-drawn, concentric-lay-stranded
Aluminum alloy 6201-T81, concentric-lay-stranded
6.Insulation Material
The standard insulation on the phase conductor is black low-density crosslinked polyethylene (XLPE)
Alternatively, black linear low-density polyethylene (LLDPE) insulation with a 75°C temperature rating is available upon request.
7.The XLPE insulation meets the requirements of ANSI/ICEA S-76-474-2004 (Standard for Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts).
The LLDPE insulation meets the requirements of ASTM Standard D1248-05 (Standard Specification for Polyethylene Plastics Molding and Extrusion Materials).
Assembly
8.The insulated phase conductor is twisted around the bare neutral conductor with a right-hand lay length of 25 to 60 times the diameter of the phase conductor.
9.Overhead Secondary Distribution Cable is manufactured and tested in accordance with ANSI/ICEA S-76-474-2004 (Standard for Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600 Volts).
Construction
1.Phase Conductor: Aluminum conductor and compact circular stranded
2.Messenger Conductor: Aluminum alloy conductor and compact circular stranded
3.Insulation: Extruded black weather-resistant Polythylene (PE) or Cross-linked Polythylene(XLPE)
4.Completed cable:Insulated phase conductors shall be held firmly onto the insulated neutral messenger
| duplex Service Drop | AAC | Pekingese | 45 | 162 | 252 | 563 | 78 |
| Collie | 45 | 183 | 273 | 563 | 78 | ||
| Cocker | 60 | 183 | 303 | 563 | 78 | ||
| Dachshund | 45 | 204 | 294 | 881 | 103 | ||
| Spaniel | 45 | 231 | 321 | 881 | 103 | ||
| Cairn | 60 | 231 | 351 | 881 | 103 | ||
| Doberman | 45 | 292 | 382 | 1350 | 136 | ||
| Airedale | 60 | 332 | 452 | — | 158 | ||
| Basset | 60 | 368 | 488 | 1990 | 182 | ||
| Malemure | 60 | 372 | 492 | 1990 | 182 | ||
| AAAC | Chihuahua | 45 | 162 | 252 | 1100 | 78 | |
| Vizsla | 45 | 183 | 273 | 1100 | 78 | ||
| Harrier | 45 | 204 | 294 | 1760 | 103 | ||
| Whippet | 45 | 231 | 321 | 1760 | 103 | ||
| Schnauzer | 45 | 292 | 382 | 2800 | 136 | ||
| Afghan | 60 | 368 | 488 | 4460 | 182 | ||
| heeler | 60 | 372 | 492 | 4460 | 182 | ||
| ACSR | Setter | 45 | 162 | 252 | 1190 | 78 | |
| Shepherd | 45 | 183 | 273 | 1190 | 78 | ||
| Retriever | 60 | 183 | 303 | 1190 | 78 | ||
| Eskimo | 45 | 204 | 294 | 1860 | 103 | ||
| Terrier | 45 | 231 | 321 | 1860 | 103 | ||
| Yorkshire | 60 | 231 | 351 | 1860 | 103 | ||
| Chow | 45 | 292 | 382 | 2850 | 136 | ||
| Labrador | 60 | 332 | 452 | 3550 | 158 | ||
| Bloodhound | 60 | 368 | 488 | 4380 | 182 | ||
| Bull | 60 | 372 | 492 | 4380 | 182 |
|
Code Name |
Phase Conductor | Bare Neutral Messenger |
Weight Per 1000 ft(lbs) |
Rating(Amps) | ||||||
|
Size AWG |
Strand |
Insulation thickness (mls) |
Size AWG |
Strand |
Breaking strength (lbs) |
XLP | POLY | XLP | POLY | |
| AAC NEUTRAL-MESSNGER | ||||||||||
| Clydesdale | 4 | Solid | 45 | 4 | 7 | 881 | 208 | 201.8 | 100 | 80 |
| Pinto | 4 | 7/w | 45 | 4 | 7 | 881 | 223 | 207.9 | 100 | 80 |
| Mustang | 2 | 7/w | 45 | 2 | 7 | 1,350 | 333 | 312.6 | 135 | 105 |
| Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 529 | 504.5 | 180 | 140 |
| Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 2,510 | 649 | 620.5 | 205 | 160 |
| Hanoverian | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 799 | 765.6 | 235 | 185 |
| Oldenburg | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 986 | 946.7 | 275 | 210 |
| Lippizaner | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1,546 | 1,519.2 | 370 | 280 |
| ACSR NEUTRAL-MESSNGER | ||||||||||
| Morochuca | 6 | Solid | 45 | 6 | 6/1 | 1,190 | 152 | 147.4 | 75 | 60 |
| Chola | 6 | 7/w | 45 | 6 | 6/1 | 1,190 | 162 | 151.7 | 75 | 60 |
| Morgan | 4 | Solid | 45 | 4 | 6/1 | 1,860 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/w | 45 | 4 | 6/1 | 1,860 | 241 | 226.1 | 100 | 80 |
| Palomino | 2 | 7/w | 45 | 2 | 6/1 | 2,850 | 362 | 342.6 | 135 | 105 |
| Costena | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4,380 | 575 | 550.6 | 180 | 140 |
| Grullo | 2/0 | 19/w | 60 | 2/0 | 6/1 | 5,310 | 707 | 678.7 | 205 | 160 |
| Suffolk | 3/0 | 19/w | 60 | 3/0 | 6/1 | 6,620 | 872 | 838.9 | 235 | 185 |
| Appaloosa | 4/0 | 19/w | 60 | 4/0 | 6/1 | 8,350 | 1079 | 1039.2 | 275 | 210 |
| Bronco | 336.4 | 19/w | 80 | 336.4 | 18/1 | 8,580 | 1613 | 1568.2 | 370 | 280 |
| Gelding | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8,350 | 1548 | 1494.3 | 370 | 280 |
|
Code Name |
Phase Conductor | Bare Neutral Messenger |
Weight Per 1000 ft(lbs) |
Rating(Amps) | ||||||
|
Size AWG |
Strand |
Insulation thickness (mls) |
Size AWG |
Strand |
Breaking strength (lbs) |
XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Bay | 6 | Solid | 45 | 6 | 7 | 1,110 | 145 | 140.0 | 75 | 60 |
| French Coach | 6 | 7/w | 45 | 6 | 7 | 1,110 | 155 | 144.3 | 75 | 60 |
| German Coach | 4 | Solid | 45 | 4 | 7 | 1,760 | 214 | 208.3 | 100 | 80 |
| Arabian | 4 | 7/w | 45 | 4 | 7 | 1,760 | 229 | 214.4 | 100 | 80 |
| Belgian | 2 | 7/w | 45 | 2 | 7 | 2,800 | 344 | 323.1 | 135 | 105 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 546 | 521.1 | 180 | 140 |
| Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 670 | 641.5 | 205 | 160 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 825 | 791.8 | 235 | 185 |
| Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 1019 | 979.7 | 275 |
210 |
