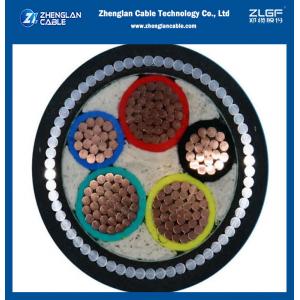

XLPE Insulated Low Voltage Power Cable SWA Armored 70mm2 Copper Aluminum IEC60502 image

Get a Quote Email to us

XLPE Insulated PVC Sheath SWA/STA Armored Copper/AluminumElectric Power Cable IEC60502

Application:

1.The products are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation: Cross-linked polyethylene( XLPE or PVC), XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Circuit Identification: The insulation shall be red, black
Filler: Polypropylene lament with lapped binding tape
Inner Sheath: Polyvinyl chloride (Black)
Armor: SWA/STA
Core-covering: Binding tape
Outer Sheath: Polyvinyl chloride (Black)
Package: Wooden Drum Package or Iron-wooden drum

Product features:

Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape

Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

SWA armored (Galvanized steel wire armoured):

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation thickness Nominal Inner Covering thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.)
mm^2 mm mm mm mm mm mm
4×4 2.3 1 1 1.25 1.8 18.5
4×6 2.8 1 1 1.25 1.8 19.7
4×10 3.6 1 1 1.25 1.8 22.3
4×16 4.5 1 1 1.6 1.8 24.5
4×25 5.6 1.2 1 1.6 1.9 28.2
4×35 6.7 1.2 1 1.6 2.0 31.1
4×50 8.0 1.4 1 2.0 2.1 36.7
4×70 9.4 1.4 1.2 2.0 2.3 40.4
4×95 11.0 1.6 1.2 2.5 2.5 46.6
4×120 12.4 1.6 1.4 2.5 2.6 50.6
4×150 13.8 1.8 1.4 2.5 2.7 55.3
4×185 15.3 2 1.4 2.5 2.9 60.6
4×240 17.5 2.2 1.6 2.5 3.1 67.3
4×300 19.5 2.4 1.6 3.15 3.4 74.9
4×400 22.6 2.6 1.8 3.15 3.7 84.4
4×500 25.2 2.8 2 3.15 3.9 92.1
