XLPE Insulated ABC Cable Overhead Duplex wire Aluminum Conductor Aerial Bundle cable

 China XLPE Insulated ABC Cable Overhead Duplex wire Aluminum Conductor Aerial Bundle cable supplier

XLPE Insulated ABC Cable Overhead Duplex wire Aluminum Conductor Aerial Bundle cable image

Get a Quote Email to us

Brand Name :Sanwu Cable
Model Number :ABC cable
Certification :ISO SGS
Place of Origin :Henan,China
MOQ :1000M
Price :Negotiate
Payment Terms :T/T, L/C,
Supply Ability :200 tons per day
Delivery Time :25days
Packaging Details :Wooden drum, reel,or according to customers request.
Conductor :Auminum 1350
Insulation :PVC,PE,XLPE,HDPE
Application :overhead transmission line
Voltage :0.6/1 kv

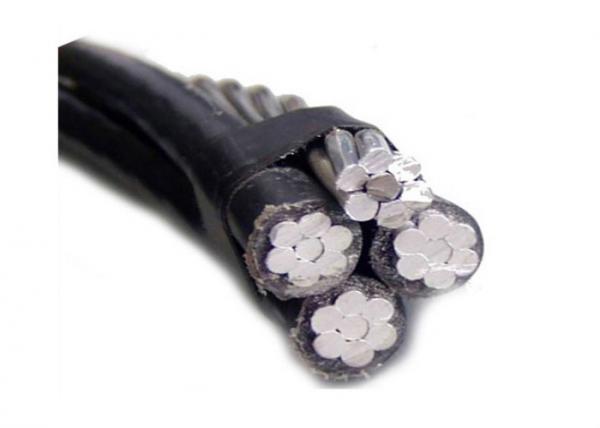

XLPE Insulated ABC Cable Overhead Duplex Triplex Twisted Aluminum Conductor Aerial Bundle

Model NO.
ABC Cable

Material Shape
Flat Wire

Certification
ISO9001, CE

Brand
Luoyang Sanwu

Item Name
XLPE Insulated ABC Electrical Cable

ABC Cable
Aerial Bundle Cable

Layer
Ec Grade Aluminum Wires

Standard
IEC, ASTM, BS, DIN

Cross Area(mm)
25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2

Supplier′s Nature
Manufacturer and Exporter

Manufacturer Experience
Since 2006

Factory Area
200, 081mm2

Export Experience
USA, Philippines, South Africa etc

Transportation Ways
by Sea, Railway Airport

Transport Package
Wooden Drum Steel Wooden Drum or as Your Request

Specification
25mm2 50mm2 75mm2 90mm2 100mm2

Trademark
Luoyang Sanwu

Origin
China

HS Code
85444929

Production Capacity
50000m/Day

Product Description

Aluminium Core XLPE/PE/PVC Insulated Aerial Bunched Cable

Company Information
Luoyang Sanwu Cable has developed into a integrated group company since established in 2006.covering more than10 production workshops with about 210,000 square meters. At present, Luoyang Sanwu Cable possesses over 900 employeesand 1080 million fixed assets


We have one big workshop to produce the raw material: aluminium wire rod anout 800ton/day, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million! So our price is very competitive and can gurantee the delivery time!

Product Description
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.

code Rated Voltage Type ABC
AWG or kcmil Structure
Neutral Wire (ACSR) Phase Wire Cable Cable
Steel Aluminium Conductor Aluminium Dia Dia Dia kg/km
No. Dia No. Dia Dia No. Dia mm
Morochuca 3*6AWG+1*6AWG 1 1.68 6 1.68 5.04 1 4.11 4.11 1.14 6.40 14.62 221
Chola 3*6AWG+1*6AWG 1 1.68 6 1.68 5.04 7 1.55 4.66 1.14 6.95 15.62 227
Morgan 3*4AWG+1*4AWG 1 2.12 6 2.12 6.36 1 5.19 5.19 1.14 7.48 17.37 331
Hackney 3*4AWG+1*4AWG 1 2.12 6 2.12 6.36 7 1.96 5.88 1.14 8.17 18.62 338
Palomino 3*2AWG+1*2AWG 1 2.67 6 2.67 8.02 7 2.47 7.42 1.14 9.71 22.41 511
Costena 3*1/0AWG+1*1/0AWG 1 3.37 6 3.37 10.11 19 1.89 9.47 1.52 12.52 28.77 824
Grullo 3*2/0AWG+1*2/0AWG 1 3.78 6 3.78 11.35 19 2.13 10.63 1.52 13.68 31.61 1015
Suffolk 3*3/0AWG+1*3/0AWG 1 4.25 6 4.25 12.74 19 2.39 11.94 1.52 14.99 34.82 1254
Appaloosa 3*4/0AWG+1*4/0AWG 1 4.77 6 4.77 14.31 19 2.68 13.40 1.52 16.45 38.42 1554
Broneo 3*336.4+1*336.4 1 3.47 18 3.47 17.36 19 3.38 16.90 2.03 20.96 48.43 2321
Gelding 3*336.4+1*4/0AWG 1 4.77 6 4.77 14.31 19 3.38 16.90 2.03 20.96 46.59 2221

Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3)Treated wooden/steel-wooden drums for big diameter cables.

Customer Coming

Welcome come our factory at any time! we trust you will like it!

We are China XLPE Insulated ABC Cable Overhead Duplex wire Aluminum Conductor Aerial Bundle cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
