1kv xlpe insulaed STA armored flame retardant PVC sheathed copper cable 3×50 IEC60502-1

Application:

1kv CU/XLPE/PVC/SWA/PVC power cable 4x25sqmm IEC60502-1 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

1kv xlpe insulaed STA armored flame retardant PVC sheathed copper cable 3×50 IEC60502-1​ Parameters:

nominal cross section (mm²) OD(mm) insulation nominal thickness (mm) YJV22 (XLPE/steel tape armor/PVC) YJV23 (XLPE/steel tape armor/PE) YJV32 (XLPE/fine steel wire armor/PVC) YJV33 (XLPE/fine steel wire armor/PE) current rating(A) size of armor(mm)
OD (mm) weight (kg/km) OD (mm) weight (kg/km) OD (mm) weight (kg/km) OD (mm) weight (kg/km)

in

ground

in Air steel tape (layer*thickness)mm fine steel wire(mm)
1.5 1.38 0.7 14.9 334 14.9 302 16.9 594 16.9 558 45 32 2 x 0.2 0.8
2.5 1.78 0.7 14.9 341 14.9 309 16.9 601 16.9 565 59 42 2 x 0.2 0.8
4 2.25 0.7 14.9 354 14.9 322 16.9 614 16.9 577 77 56 2 x 0.2 0.8
6 2.76 0.7 14.9 365 14.9 333 16.9 625 16.9 588 97 70 2 x 0.2 0.8
10 3.57 0.7 14.9 395 14.9 363 16.9 655 16.9 619 130 97 2 x 0.2 1.25
16 4.5 0.7 15 444 15 411 17 702 17 665 170 125 2 x 0.2 1.25
25 6.3 0.9 15.4 523 15.4 490 17.4 778 17.4 740 220 165 2 x 0.2 1.6

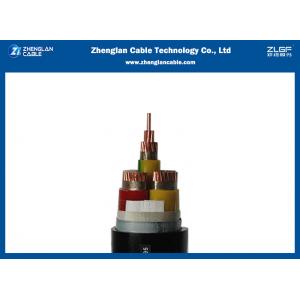

1kv xlpe insulaed STA armored flame retardant PVC sheathed copper cable 3×50 IEC60502-1​ ​images

1kv xlpe insulaed flame retardant LSZH sheathed copper cable 5x25sqmm IEC60502-1​ Test equipment

About zhenglan cable technology co., ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

FAQ about 1kv XLPE insulated PVC sheathed multi core copper cable 4x95sqmm
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
