XLPE HDPE Overhead Insulated ABC Aerial Bundle Cable 15KV -35KV AAC AAAC ACSR Conductor

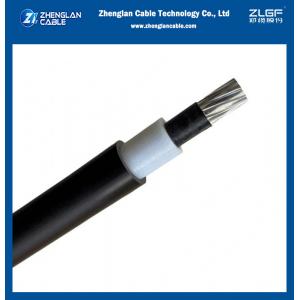

XLPE HDPE Overhead Insulated ABC Aerial Bundle Cable 15KV -35KV AAC AAAC ACSR Conductor image
15KV -35KV AAC AAAC ACSR Conductor XLPE HDPE Overhead Insulated ABC Aerial Bundle Cable
Application:
Covered Aerial MV Cable – Installed with other Covered Aerial MV cables and a supporting messenger through a series of space- maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation, particularly useful in congested areas.
Tree Wire – Used for spans where trees crowd the right-of-way, such as in wooded residential areas, when a minimum of interference with the environment is desired. Covering minimizes power outages due to conductor contact with tree limbs, reducing the need for frequent or severe trimming.
Spacer Cable – Installed with other spacer cables and a supporting messenger through a series of space-maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas.
Features:
Reference standards: ICEA S66-524 MEA
Conductor: Compact stranded AAC/ACSR/AAAC
Single-core : Size 35 mm² up to 240 mm²
Emergency overload conditions 130 °C
Short circuit conditions 250°C
15 kV phase to phase AC TESTING VOLTAGE : 27 kV for 5 minutes
25 kV phase to phase AC TESTING VOLTAGE: 38 kV for 5 minutes
35 kV phase to phase AC TESTING VOLTAGE: 49 kV for 5 minutes
15KV Technical data sheets:
| Nominal cross – sectional area mm² |
Diameter of conductor (Approx.) mm |
Thickness of insulation mm |
Thickness of sheath mm |
Overall diameter (Approx.) mm |
Maximum DC. conductor resistance at 20°C Ω / km |
Minimum insulation resistance at 15.6°C MΩ-km |
Allowable ampacities in free air at 40°C ambient A |
Cable weight (Approx.) kg / km |
| 35 | 6.9 | 1.91 | 1.91 | 16.0 | 0.868 | 1,820 | 151 | 232 |
| 50 | 8.0 | 1.91 | 1.91 | 17.5 | 0.641 | 1,612 | 187 | 291 |
| 70 | 9.8 | 1.91 | 1.91 | 19.0 | 0.443 | 1,445 | 231 | 358 |
| 95 | 11.4 | 1.91 | 1.91 | 21.0 | 0.320 | 1,284 | 281 | 451 |
| 120 | 12.9 | 1.91 | 1.91 | 22.5 | 0.253 | 1,152 | 324 | 552 |
| 150 | 14.1 | 1.91 | 1.91 | 24.0 | 0.206 | 1,070 | 375 | 639 |
| 185 | 15.8 | 1.91 | 1.91 | 25.5 | 0.164 | 980 | 433 | 763 |
| 240 | 18.3 | 1.91 | 1.91 | 28.0 | 0.125 | 874 | 525 | 953 |
Images:
Packages:
Why choose us
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Registered capital of $30 million and factory covers an area of 60,000㎡
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
We are China XLPE HDPE Overhead Insulated ABC Aerial Bundle Cable 15KV -35KV AAC AAAC ACSR Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Overhead Insulated ABC Aerial Bundle Cable, Overhead Insulated Cable, Overhead Insulated Cable 35kV, XLPE HDPE Overhead Insulated CableSimilar Or Related
