Xlpe Covered Overhead Insulated Cable Bare Messenger Conductor IS 14255 -1995

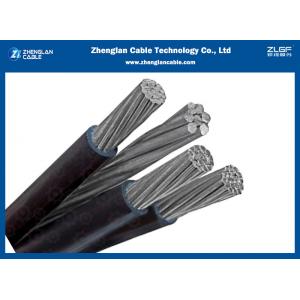

Xlpe Covered Overhead Insulated Cable Bare Messenger Conductor IS 14255 -1995 image
0.6/1kv xlpe covered overhead insulated cable with bare messenger conductor IS:14255 -1995
Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
Insulation: PVC, XLPE, PE
Standards:
GB/T 12527-2008, IEC60502-1, IS:14255-1995
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
Application:
APPLICATION: Used primarily for overhead secondary distribution lines.
Below construction are also commonly used around the world.
A) Duplex Service Drop
Applications:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
B) Triplex Service Drop
Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .
3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
It meets or exceeds the following specifications:
C ) Quadruplex Service Drop
Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
0.6/1kv xlpe covered overhead insulated cable 3×50+NA1x54.6 NFC33209 aerial bundled cable parameters
| SI. No. | Description and Type of Cable | Number of Wires | Thickness of | Approx overall Diameter | Approx Weight of Cable | Breaking | Maximum D.C | AC Current | |||||
| XLPE Insulation | Load of | Resistance | Rating | ||||||||||
| Phase | Messenger | Phase | Messenger | Messenger | Ohms/Km | Amps | |||||||
| mm | mm | mm | Kg/KM | KN (min) | Phase | Messenger | In air at 40°C | ||||||
| With insulated messenger conductor | |||||||||||||
| 1 | 1 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 20 | 165 | 7 | 1.91 | 1.38 | 72 | ||
| 2 | 3 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 22 | 301 | 7 | 1.91 | 1.38 | 64 | ||
| 3 | 1 Cx25 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 22.4 | 195 | 7 | 1.2 | 1.38 | 99 | ||
| 4 | 3 C x 25 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 25 | 390 | 7 | 1.2 | 1.38 | 84 | ||
| 5 | 1 Cx35 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 27.3 | 227 | 7 | 0.868 | 1.38 | 120 | ||
| 6 | 3 C x 35 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 27.4 | 486 | 7 | 0.868 | 1.38 | 105 | ||
| 7 | 1 Cx35 mm2 + 35mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 28 | 259 | 10.1 | 0.868 | 0.986 | 120 | ||
| 8 | 3 C x 35 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 28.4 | 518 | 10.1 | 0.868 | 0.986 | 105 | ||
| 9 | 1 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 29 | 317 | 10.1 | 0.641 | 0.986 | 150 | ||
| 10 | 3 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 32.3 | 692 | 10.1 | 0.641 | 0.986 | 130 | ||
| 11 | 3Cx70 mm2 + 50 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 37.5 | 939 | 14 | 0.443 | 0.689 | 155 | ||
| 12 | 3 C x 70 mm2 + 70 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 39 | 1002 | 19.7 | 0.443 | 0.492 | 155 | ||
| 13 | 3 C x 95 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.5 | 1.5 | 42.7 | 1237 | 19.7 | 0.32 | 0.492 | 190 | ||
| 14 | 3 C x 120 mmz + 70 mm2 (insulated) | 19 | 7 | 1.6 | 1.5 | 46 | 1482 | 19.7 | 0.253 | 0.492 | 220 | ||
| 15 | 3 C x 150 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.8 | 1.5 | 50 | 1791 | 19.7 | 0.206 | 0.492 | 250 | ||
| With bare messenger conductor | |||||||||||||
| 1 | 1 C x 16 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 18.5 | 137 | 7 | 1.91 | 1.38 | 72 | ||
| 2 | 3 C x 16 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 19.3 | 272 | 7 | 1.91 | 1.38 | 64 | ||
| 3 | 1 C x 25 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 19.5 | 167 | 7 | 1.2 | 1.38 | 99 | ||
| 4 | 3Cx25 mm2 + 25mm2(bare) | 7 | 7 | 1.2 | / | 20.5 | 362 | 7 | 1.2 | 1.38 | 84 | ||
| 5 | 1 C x 35 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 22 | 199 | 7 | 0.868 | 1.38 | 120 | ||
| 6 | 3 C x 35 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 23.5 | 458 | 7 | 0.868 | 1.38 | 105 | ||
| 7 | 1 C x 35 mm2 + 35 mm2 (bare) | 7 | 7 | 1.2 | / | 24.6 | 226 | 10.1 | 0.868 | 0.986 | 120 | ||
| 8 | 3Cx35 mm2 + 35 mm2 (bare) | 7 | 7 | 1.2 | / | 25 | 485 | 10.1 | 0.868 | 0.986 | 105 | ||
| 9 | 1 C x 50 mm2 + 35 mm2 (bare) | 7 | 7 | 1.5 | / | 26.6 | 284 | 10.1 | 0.641 | 0.986 | 150 | ||
| 10 | 3Cx50 mm2 + 35mm2(bare) | 7 | 7 | 1.5 | / | 26.8 | 659 | 10.1 | 0.641 | 0.986 | 130 | ||
| 11 | 3 C x 70 mm2 + 50 mm2 (bare) | 7 | 7 | 1.5 | / | 31.2 | 890 | 14 | 0.443 | 0.689 | 155 | ||
| 12 | 3Cx70 mm2 + 70mm2(bare) | 7 | 7 | 1.5 | / | 34.4 | 946 | 19.7 | 0.443 | 0.492 | 155 | ||
| 13 | 3 C x 95 mm2 + 70 mm2 (bare) | 19 | 7 | 1.5 | / | 36 | 1179 | 19.7 | 0.32 | 0.492 | 190 | ||
| 14 | 3 C x 120 mm2 + 70 mm2 (bare) | 19 | 7 | 1.6 | / | 38 | 1425 | 19.7 | 0.253 | 0.492 | 220 | ||
| 15 | 3 C x 150 mm2 + 70 mm2 (bare) | 19 | 7 | 1.8 | / | 40 | 1735 | 19.7 | 0.206 | 0.492 | 250 | ||
Other cross-sections can be offered upon request.
