XLPE Bundled Insulated Aluminium Overhead Cable 0.6/1KV Triplex IEC60502-1

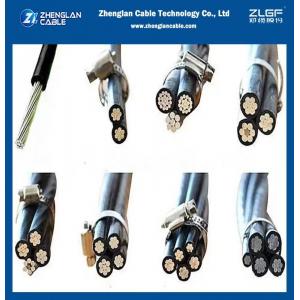

XLPE Bundled Insulated Aluminium Overhead Cable 0.6/1KV Triplex IEC60502-1 image
0.6/1KV Triplex/Quadruplex/Duplex Service Drop overhead wire with Insulated XLPE Bundled Aluminium Overhead Cable
Application:
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.
Conductor:
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR).
4. B-399 Stranded 6201-T81 Aluminum Alloy Conductors.
5. B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Insulation: PVC, XLPE, PE
Standards:
GB/T 12527-2008, IEC60502-1, IS:14255-1995
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
IEC60502-1 ABC cable parameters
| SI. No. | Description and Type of Cable | Number of Wires | Thickness of | Approx overall Diameter | Approx Weight of Cable | Breaking | Maximum D.C | AC Current | |||||
| XLPE Insulation | Load of | Resistance | Rating | ||||||||||
| Phase | Messenger | Phase | Messenger | Messenger | Ohms/Km | Amps | |||||||
| mm | mm | mm | Kg/KM | KN (min) | Phase | Messenger | In air at 40°C | ||||||
| With insulated messenger conductor | |||||||||||||
| 1 | 1 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 20 | 165 | 7 | 1.91 | 1.38 | 72 | ||
| 2 | 3 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 22 | 301 | 7 | 1.91 | 1.38 | 64 | ||
| 3 | 1 Cx25 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 22.4 | 195 | 7 | 1.2 | 1.38 | 99 | ||
| 4 | 3 C x 25 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 25 | 390 | 7 | 1.2 | 1.38 | 84 | ||
| 5 | 1 Cx35 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 27.3 | 227 | 7 | 0.868 | 1.38 | 120 | ||
| 6 | 3 C x 35 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 27.4 | 486 | 7 | 0.868 | 1.38 | 105 | ||
| 7 | 1 Cx35 mm2 + 35mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 28 | 259 | 10.1 | 0.868 | 0.986 | 120 | ||
| 8 | 3 C x 35 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 28.4 | 518 | 10.1 | 0.868 | 0.986 | 105 | ||
| 9 | 1 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 29 | 317 | 10.1 | 0.641 | 0.986 | 150 | ||
| 10 | 3 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 32.3 | 692 | 10.1 | 0.641 | 0.986 | 130 | ||
| 11 | 3Cx70 mm2 + 50 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 37.5 | 939 | 14 | 0.443 | 0.689 | 155 | ||
| 12 | 3 C x 70 mm2 + 70 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 39 | 1002 | 19.7 | 0.443 | 0.492 | 155 | ||
| 13 | 3 C x 95 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.5 | 1.5 | 42.7 | 1237 | 19.7 | 0.32 | 0.492 | 190 | ||
| 14 | 3 C x 120 mmz + 70 mm2 (insulated) | 19 | 7 | 1.6 | 1.5 | 46 | 1482 | 19.7 | 0.253 | 0.492 | 220 | ||
| 15 | 3 C x 150 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.8 | 1.5 | 50 | 1791 | 19.7 | 0.206 | 0.492 | 250 | ||
| With bare messenger conductor | |||||||||||||
| 1 | 1 C x 16 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 18.5 | 137 | 7 | 1.91 | 1.38 | 72 | ||
| 2 | 3 C x 16 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 19.3 | 272 | 7 | 1.91 | 1.38 | 64 | ||
| 3 | 1 C x 25 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 19.5 | 167 | 7 | 1.2 | 1.38 | 99 | ||
| 4 | 3Cx25 mm2 + 25mm2(bare) | 7 | 7 | 1.2 | / | 20.5 | 362 | 7 | 1.2 | 1.38 | 84 | ||
| 5 | 1 C x 35 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 22 | 199 | 7 | 0.868 | 1.38 | 120 | ||
| 6 | 3 C x 35 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | / | 23.5 | 458 | 7 | 0.868 | 1.38 | 105 | ||
| 7 | 1 C x 35 mm2 + 35 mm2 (bare) | 7 | 7 | 1.2 | / | 24.6 | 226 | 10.1 | 0.868 | 0.986 | 120 | ||
| 8 | 3Cx35 mm2 + 35 mm2 (bare) | 7 | 7 | 1.2 | / | 25 | 485 | 10.1 | 0.868 | 0.986 | 105 | ||
| 9 | 1 C x 50 mm2 + 35 mm2 (bare) | 7 | 7 | 1.5 | / | 26.6 | 284 | 10.1 | 0.641 | 0.986 | 150 | ||
| 10 | 3Cx50 mm2 + 35mm2(bare) | 7 | 7 | 1.5 | / | 26.8 | 659 | 10.1 | 0.641 | 0.986 | 130 | ||
| 11 | 3 C x 70 mm2 + 50 mm2 (bare) | 7 | 7 | 1.5 | / | 31.2 | 890 | 14 | 0.443 | 0.689 | 155 | ||
| 12 | 3Cx70 mm2 + 70mm2(bare) | 7 | 7 | 1.5 | / | 34.4 | 946 | 19.7 | 0.443 | 0.492 | 155 | ||
| 13 | 3 C x 95 mm2 + 70 mm2 (bare) | 19 | 7 | 1.5 | / | 36 | 1179 | 19.7 | 0.32 | 0.492 | 190 | ||
| 14 | 3 C x 120 mm2 + 70 mm2 (bare) | 19 | 7 | 1.6 | / | 38 | 1425 | 19.7 | 0.253 | 0.492 | 220 | ||
| 15 | 3 C x 150 mm2 + 70 mm2 (bare) | 19 | 7 | 1.8 | / | 40 | 1735 | 19.7__ | 0.206 | 0.492 | 250 ― | ||
