XLPE Armoured Electrical Wire CU/XLPE/CTS/STA/SWA/PVC 11kV 12kV 15kV 22kV 33kV IEC60502-2

XLPE Insulated Steel Tape Armoured Electric Power Cable CU/XLPE/CTS/STA/SWA/PVC 11kV 12kV 15kV 22kV 33kV Cable IEC60502-2 IEC60502-2

​APPLICATIONS:

MV cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 12/20(24)KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)

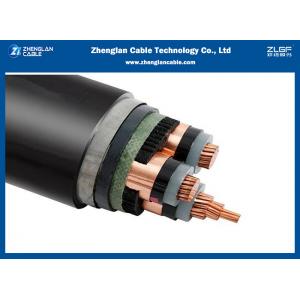

Cable Construction

construction :

1. Conductor: Copper conductor, circular stranded compacted, water blocked.

2. Conductor Screening: Extruded semi-conductive compound.

3. Insulation: XLPE.

4. Insulation Screening: Extruded semi-conductive compound.

5. Waterproof layer: semi-conductive waterproof tape

6. Screen: Copper tapes.

7. Separator: Plastic foil.

8. Core Sheath: PVC/PE.

9. Fillers: Polypropylene filler.

10. Separator: Binder tapes

11. Bedding Layer: Polypropylene strings.

12. Armour: STA/SWA.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

XLPE Insulated Steel Tape Armoured Electric Power Cable CU/XLPE/CTS/STA/SWA/PVC 11kV 12kV 15kV 22kV 33kV Cable​ ​ ​reference technical parameters

Single Core 8.7/15KV Dimensional Data

Single Core 18/30KV Dimensional Data

XLPE Insulated Steel Tape Armoured Electric Power Cable CU/XLPE/CTS/STA/SWA/PVC 11kV 12kV 15kV 22kV 33kV Cable​ ​ images

XLPE Insulated Steel Tape Armoured Electric Power Cable CU/XLPE/CTS/STA/SWA/PVC 11kV 12kV 15kV 22kV 33kV Cable​ ​ ​​​ Package

Cable testing

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided.

FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China

2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.

3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.

4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.

5. What is your MOQ?
Generally for medinum voltage poer cable MOQ is 1500m.
