XLPE 3 Core Armoured Copper Steel Power Cable

 China XLPE 3 Core Armoured Copper Steel Power Cable supplier

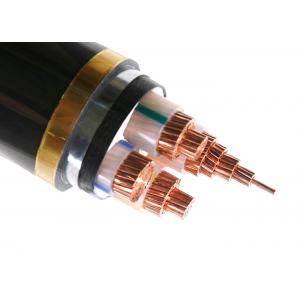

XLPE 3 Core Armoured Copper Steel Power Cable image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :YJV22
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :CHINA
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :15 work days
Packaging Details :Carton
Standard :GB/T 12706.1-2008、GB/T 19666-2005
Color :Black
Rated Voltage :0.6/1kV
Production :Transmission electricity
Feature :PVC Sheath
Material :Copper

Structures:

Stranded bare aluminum conductor, Inner layer of semi-conducting material, Core insulation of cross-linked polyethylene, Outer layer of semi-conducting material, Screen of copper tape, Fillers strip, Yarn, or Paper, Non woven wrapping tape , Extruded PVC inner covering, Galvanized Steel Tape Armour, Overall Sheath polyvinylchloride (PVC) or FR-PVC, PE, LSOH

Applications:

Used in transformer stations, switching blocks, in electric power plants and industrial plants.

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability.

Standards:

International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV32, ZR-YJV72 only)

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV32, ZR-YJV72 only)

Other standards such as BS,DIN and ICEA upon request

Code name:

YJ: XLPE insulation

L: Aluminum conductor

V: PVC sheath

32:Steel wire armoring—3 cores

22:Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV No.of Core Conductor cross-section area(mm2)
xlpe insulation 1 core 3 core 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

Technical data:

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D for single core

12 x cable O.D for multi core

Test voltage 6 / 10 kV [kV] 21 / 5 min.
12 / 20 kV [kV] 42 / 5 min.
18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2

The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.

Packing: Carton

Shippling DHL

We are China XLPE 3 Core Armoured Copper Steel Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
