White Color Bare Overhead Conductors Aluminium Stranded Aluminium Alloy Conductors Steel Reinforced
White Color Bare Overhead Conductors Aluminium Stranded Aluminium Alloy Conductors Steel Reinforced image
Brand Name :
SHANCABLE
Model Number :
ACSR
Certification :
ISO, CCC, CE
Place of Origin :
Shanghai, China
MOQ :
5KM
Price :
USD1-100/Meter
Supply Ability :
500 Kilometers per Month
Delivery Time :
Negotiable
Packaging Details :
Wooden Drum/ Steel Drum
Color :
White
Origin :
CHINA
HS Code :
7614100000
Sample :
Available
Drum Packing :
Steel wooden drum or wooden drum
Standard :
IEC61089, ASTM B231, EN51082

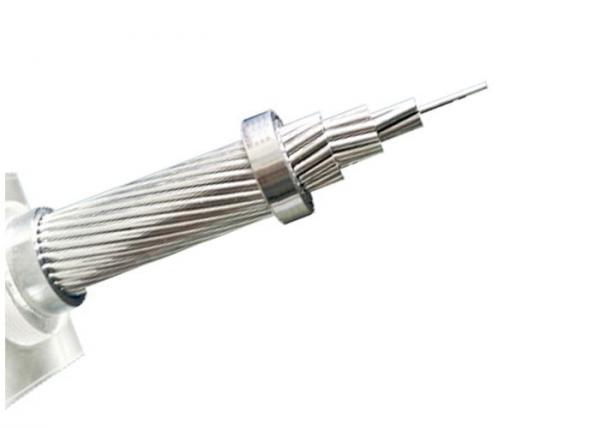

Overhead conductor Aluminium stranded conductors steel-reinforced (ACSR)
Applications
Steel-cored aluminium strands are made of aluminium wires and steel wires, which are suitable for AC overhead transmission lines.
Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
| Code Name |
Nominal | Number/Diameter | Calculated Area mm2 | Diameter mm | Resistance ≤Ω/km |
Force KN |
Weight kg/km |
|||
| AWG or MCM | Al mm |
Steel mm |
Al | Steel | Total | |||||
| Turkey | 6 | 6/1.68 | 1/1.68 | 13.29 | 2.19 | 15.48 | 5.04 | 2.1586 | 5.24 | 54 |
| Swan | 4 | 3/2.12 | 1/2.12 | 21.16 | 3.55 | 24.71 | 6.36 | 1.3557 | 8.32 | 85 |
| Swanate | 4 | 7/1.96 | 1/2.61 | 21.16 | 5.35 | 26.51 | 6.53 | 1.3557 | 10.53 | 100 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 33.61 | 5.61 | 39.22 | 8.01 | 0.8535 | 12.70 | 136 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 33.61 | 8.52 | 42.13 | 8.24 | 0.8535 | 16.11 | 159 |
| Robin | 1 | 6/3.00 | 1/3.00 | 42.39 | 7.10 | 49.49 | 9.00 | 0.6767 | 15.85 | 171 |
| Raven | 1/0 | 6/3.78 | 1/3.37 | 53.48 | 8.90 | 62.38 | 10.11 | 0.5364 | 19.32 | 216 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 67.42 | 11.23 | 78.65 | 11.34 | 0.4255 | 23.62 | 273 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 85.03 | 14.19 | 99.22 | 12.75 | 0.3373 | 29.41 | 343 |
| Penguin | 4/0 | 6/477 | 1/4.77 | 107.23 | 17.87 | 125.10 | 14.31 | 0.2675 | 37.06 | 433 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 135.16 | 7.48 | 142.64 | 15.45 | 0.2133 | 30.27 | 431 |
| Partridge | 266.8 | 26/2.57 | 7/2.00 | 135.16 | 22.00 | 157.16 | 16.28 | 0.2143 | 50.29 | 546 |
| Ostrich | 300 | 26/2.73 | 7/2.12 | 152.00 | 24.71 | 176.71 | 17.28 | 0.1906 | 56.52 | 614 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 170.45 | 9.48 | 179.93 | 17.5 | 0.1691 | 38.23 | 544 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 170.45 | 21.81 | 198.26 | 18.31 | 0.1699 | 62.71 | 689 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 170.45 | 39.81 | 210.26 | 18.83 | 0.1704 | 77.27 | 784 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 201.42 | 11.16 | 212.58 | 18.85 | 0.1431 | 43.99 | 642 |
| Brant | 397.5 | 24/3.27 | 7/2.18 | 201.42 | 26.13 | 227.55 | 19.61 | 0.1438 | 64.69 | 762 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 201.42 | 32.77 | 234.19 | 19.88 | 0.1438 | 72.11 | 814 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 201.42 | 46.97 | 248.39 | 20.44 | 0.1442 | 88.69 | 927 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 241.68 | 13.42 | 255.10 | 20.70 | 0.1193 | 52.16 | 771 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 241.68 | 31.29 | 272.97 | 21.49 | 0.1199 | 76.66 | 915 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 241.68 | 39.42 | 281.10 | 21.79 | 0.1199 | 86.65 | 978 |
| Hen | 477 | 30/3.20 | 7/3.20 | 241.68 | 56.39 | 298.07 | 22.40 | 0.1201 | 105.34 | 1112 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 282.00 | 15.68 | 297.68 | 22.35 | 0.1022 | 60.88 | 899 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 282.00 | 36.58 | 318.58 | 23.22 | 0.1027 | 88.22 | 1067 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 282.00 | 45.94 | 327.94 | 23.55 | 0.1027 | 101.03 | 1140 |
Our Services:
Shanghai Shenghua Cable (Group) Co.,Ltd is a professional wires and cables manufacturer for 20 years in China. we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
About Shenghua:
The biggest cable Manufacturer in China
Listed as No.2 of TOP 10 Cable Manufacturers
3 branch factories listed as Top 10 Cable Factories in China
Originated in 1950 and found in 1997
21 branch factories around China
80–available types of cables
600–sales branches and offices around the world
5000–Employees
1332000 m2–Total spaces
1100000 km–Annual output of cables
10000000000 RMB–Annual sales amount
We are China White Color Bare Overhead Conductors Aluminium Stranded Aluminium Alloy Conductors Steel Reinforced manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Bare Conductor, bare overhead conductors, overhead line ConductorSimilar Or Related
-
Transmission Aluminum Conductor Steel Reinforced Cable CABO CAA DOTTEREL/SWAN/SPARROW/ Penguin Bare ACSR Conductor
-
Bare Conductor ACSR Aluminum Conductor Steel Reinforced / Code:16~1250/AWG Cable (AAAC, AAC, ACSR)
-
Overhead ACSR Bare Conductor according to IEC 61089 (Area AL:125mm2 Steel:6.94mm2 Total:132mm2) (AAC, AAAC, ACSR)
-
Bare Aluminum Wire ACSR Conductor/(Area AL:100mm2 Steel:16.7mm2 Total:117mm2) (AAC, AAAC, ACSR)
