Weave Silk Light Weight Anti Twist Wire Rope Construction Safety Rope Insulated
Weave Silk Light Weight Anti Twist Wire Rope Construction Safety Rope Insulated image

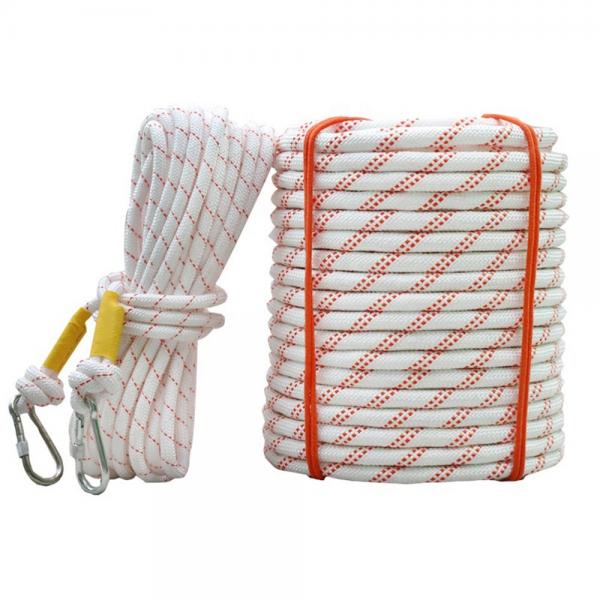

Weave Silk Light Weight Construction Safety Rope Insulated Nylon Rope
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
Quality Control
We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data of Weave Silk Insulated Rope Light Weight Safety Rope
| Item number | Diameter | Linear density (g/m) | After Diameter (mm) | After Linear density (g/m) | Break force (kN) |
| (mm) | |||||
| 18170A | 2 | 2.31 | 3 | 3.2 | 4.3 |
| 18170B | 3 | 4.65 | 4.5 | 7.3 | 8.5 |
| 18170C | 3.5 | 6.78 | 5 | 9.5 | 11.4 |
| 18170D | 4 | 9.31 | 5.5 | 13 | 16.6 |
| 18170E | 4.5 | 11.3 | 6 | 16 | 19 |
| 18170F | 5 | 14 | 7 | 20 | 24.4 |
| 18170G | 6 | 20 | 8 | 28.2 | 31.9 |
| 18170H | 7 | 27 | 9 | 36 | 43.6 |
| 18170J | 8 | 35 | 10 | 48.4 | 58.8 |
| 18170K | 9 | 42 | 11 | 58.5 | 70.3 |
| 18170L | 10 | 56 | 12 | 77 | 92.5 |
| 18170M | 11 | 70 | 13 | 97 | 115 |
| 18170N | 12 | 84 | 14 | 113.4 | 137 |
| 18170P | 13 | 98 | 15 | 132 | 159 |
| 18170Q | 14 | 106 | 16 | 150 | 180 |
| 18170R | 16 | 132 | 18 | 177 | 211 |
| 18170S | 18 | 186 | 21 | 247.3 | 296 |
We are China Weave Silk Light Weight Anti Twist Wire Rope Construction Safety Rope Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
