Waterproof CU Solar Cable 1.5kv 25mm 10mm EN50332-1 Tinned Copper

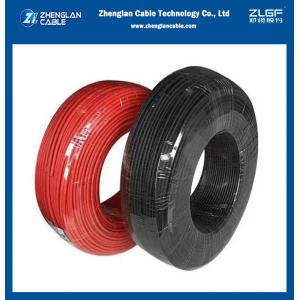

Waterproof CU Solar Cable 1.5kv 25mm 10mm EN50332-1 Tinned Copper image
Waterproof CU solar solar cable 1.5kv 25mm solar cable solar cable 10mm
Solar cables are interconnecting cables for photovoltaic power generation. Solar cables interconnect solar panels and other electronic components of photovoltaic systems. The solar cable is designed to be UV and weather resistant. They can be used in a wide temperature range and are usually placed outdoors.
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
Waterproof CU solar solar cable 1.5kv 25mm solar cable solar cable 10mm CHARACTERISTICS:
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
DC connection:
The individual modules are connected using cables to form a PV generator. The module cables are connected as wires to the generator junction box, and the main DC cables connect the generator junction box to the inverter. To eliminate the risk of ground faults and short circuits, each double insulated positive and negative cable is separated.
Waterproof CU solar solar cable 1.5kv 25mm solar cable solar cable 10mm Technical Date:
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
Waterproof CU solar solar cable 1.5kv 25mm solar cable solar cable 10mm specification:
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1×16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1×25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1×35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |
Waterproof CU solar solar cable 1.5kv 25mm solar cable solar cable 10mm images:
We are China Waterproof CU Solar Cable 1.5kv 25mm 10mm EN50332-1 Tinned Copper manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
