Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding

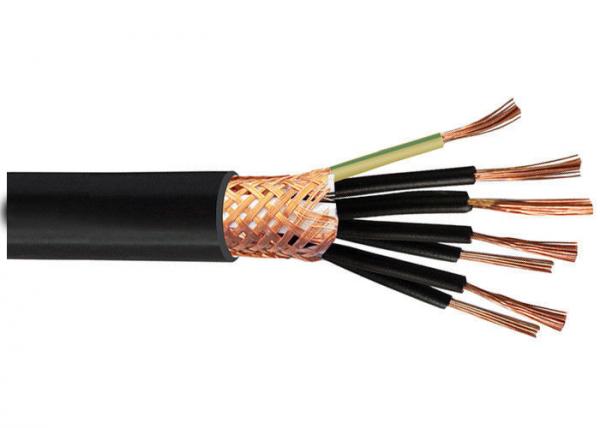

Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding image
Brand Name :
JHY CABLE
Model Number :
KVVP
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer’s request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Up to 600 / 1000V Copper Conductor PVC / XLPE Insulated Braiding Control Cable
1.1 PVC insulated & sheathed control cable is suitable for connecting wires between electric equipment is controling,monitoring loop and including 600V/1000V (A.C.).The product has not only excellent characteristics in electric and mechanical purpose but also in performance of chemical corrosion resistance ,heat-aging ,environmental stress and flame-retardant.The product has simple construction and convenient to use and could be laid with no restriction of different levels.
Our product of PVC insulated and sheathed control cable can be manufactured according to the Chinese standard GB9330-88,which was complied with reference to IEC227 ,IEC 502 and the standards of Germany ,American ,Japan and U.S.S.R for control cable .
1.2 Flame-Retardant control cable
Flame-Retardant control cable is suitable for connecting wires between electric equipments with a special flame-retardant requirement in controling ,monitoring loop and protecting circuit at rated voltage up to 600/1000V (A.C.) .Our flame-retardant control cable ,low smoke halogen free flame-retardant control cable ,low smoke low halogen flame-retardant control cable ,XLPE insulated control cable and XLPE insulated flame-retardant control cable.
| Application | Suitable for the interconnection in controlling, Protecting and measuring system. |
| Number of Core | 2-61cores |
| Rated Voltage |
450/750V confirm to IEC 60227-2007 600/1000V confirm ro IEC 60502-2004 |
| Test Voltage | AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V. |
|
Maximum conductor operating temperature |
90°C for XLPE Insulation 70°C for PVC Insulation |
| Core's recognition |
Up to 5core with color. Above 5core with number. |
| Color of Sheath | Black and customer designated. |
| Manufactured standards | IEC 60227-2007 IEC 60502-2004. |
| Conductor Type |
IEC 60228-2004 class 1 , class 2, and class 5. Nominal Cross-section area: 0.5-10mm2. |
5. Product Image
Company Information:
| OUR SERVICE | |
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
|
We are China Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Flexible Control Cable, industrial control cables, shielded control cableSimilar Or Related
-
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
-

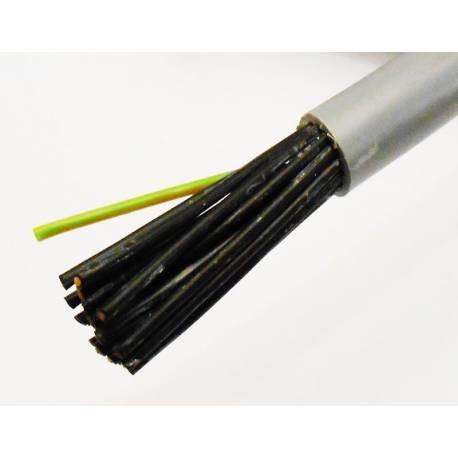

450/750V Multi Cores Shielded Control Cable 1.5mm2 Unarmored Copper PVC Sheath IEC Standard
-

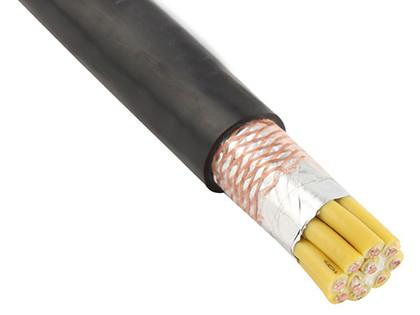

30 Cores Al – Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
-

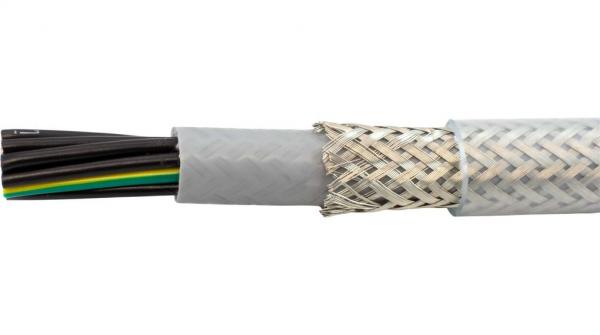

Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
