Unshield PVC Insulated PVC Jacket KVV Control Cable Wire CU/PVC/PVC 450/750V 20×2.5SQ.MM

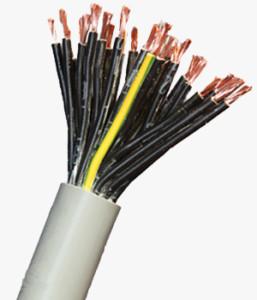

Unshield PVC Insulated PVC Jacket KVV Control Cable Wire CU/PVC/PVC 450/750V 20×2.5SQ.MM image
Brand Name :
JHY CABLE
Model Number :
KVV
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer’s request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
Unshield PVC Insulated and PVC Jacket KVV Control Cables CU/PVC/PVC 450/750V 20×2.5SQ.MM
1. standards
GB/T 9330.1-2008 GB/T9330.2-2008 GB/T 19666-2005
2. application
This product is suitable for AC rated voltage 450/750V and the following control, monitoring circuit and protection circuit and so on.
3. Use characteristics
3.1 The conductor of the cable is the maximum operating temperature of 70.
3.2 Ambient temperature is not less than 0℃
3.3 Cable flame retardant properties meet the requirements of the corresponding indicators in the
GB/T19666-2005 standard.
Similar products
| Model | Name | |
| kvv | zr-kvv | PVC insulated and sheathed control cable |
| kvvp | zr-kvvp | PVC insulated PVC sheathed braided shield control cable |
| kvvp2 | zr-kvvp2 | PVC insulated PVC sheathed copper shield control cable |
| kvv22 | zr-kvv22 | PVC insulated PVC sheathed steel tape armored control cable |
| kvvp2-22 | zr-kvvp2-22 | PVC insulated PVC sheathed copper tape armored control cable |
| kvvp-22 | zr-kvvp-22 | PVC insulated PVC sheathed copper wire armored control cable |
| kvv32 | zr-kvv32 | PVC insulated PVC sheathed steel wire armored control cable |
| kvvr | zr-kvvr | PVC insulated PVC sheathed control flexible cable |
| kvvrp | zr-kvvrp | PVC insulated PVC sheathed braided shield control flexible cable |
Construction
| 1. Conductor material: | Copper Core | |
| 2. Jacket Material | PVC | |
| 3.Insulation Material | PVC | |
| 4.Jacket Colour | Black | |
| 5.Insulation Colour | Red, black, blue, yellow, white, green/yellow, grey, brown, or customer request |
