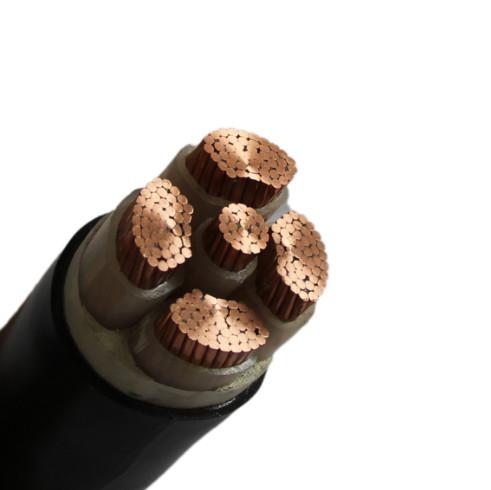

Underground Armoured Power Cable Multi Copper Core Xlpe Insulated Black
This product is copper core AC 1kv-35kv power cable, mainly used for power transmission between equipment, as well as transmission, distribution stations, the use of the State Grid, with complete specifications, the structure of diversified features . Among them, WDZ is a low-smoke halogen-free material with anti-aging, tear-resistant, low smoke, halogen-free and flame retardant properties and can maintain its excellent electrical and mechanical properties in complex environments. More reliable use of performance.
1. Rated voltage U0 / U: 0.6/1kV
2. The cable conductor long term working temperature should not be exceeded:
* Polyvinyl chloride, polyethylene aerial insulated cable 70 °C
* XLPE aerial insulated cable 90 °C
3. When short circuit (Max 5 seconds), the conductor temperature can not be exceed:
* PVC insulated aerial cable 160 °C
* Polyethylene insulated aerial cable 130 °C
* XLPE insulated aerial cable 250 °C
* The ambient temperature of laying cable can not be lower than -20 °C
Multi copper core xlpe insulated underground armoured power cable
| Nominal Section-Area of Conductor(mm2) | Structure of Conductor | Nominal Thik-ness of Sheath (mm) | Overall Diameter | Max. Conductor Resistance at 20º C (Ω /km) | Approx. Weight (kg/km) | ||
| Core no. /Dia. (no. /mm) | Min. | Max. | YH | YHF | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.128 | 1648.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 | 1983.8 | 2020.74 |
| Type | Designation | Application |
| VV | Copper conductor ,PVC insulated ,PVC sheathed power cable | For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
| VLV | Aluminium conductor ,PVC insulated ,PVC sheathed power cable | |
| VY | Copper conductor, PVC insulated, PE sheathed power cable | |
| VLY | Aluminium conductor ,PVC insulated ,PE sheathed power cable | |
| VV22 | Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable | For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
| VLV22 | Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable | |
| VV23 | Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable | |
| VLV23 | Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable | |
| VV32 | Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable | For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
| VLV32 | Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable | |
| VV33 | Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable | |
| VLV33 | Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable | |
| Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied | ||
Multi copper core xlpe insulated underground armoured power cable
We are China Underground Armoured Power Cable Multi Copper Core Xlpe Insulated Black manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
