Under Adverse Conditions Rubber Sheathed Cable 450 / 750V 1.5mm – 400mm

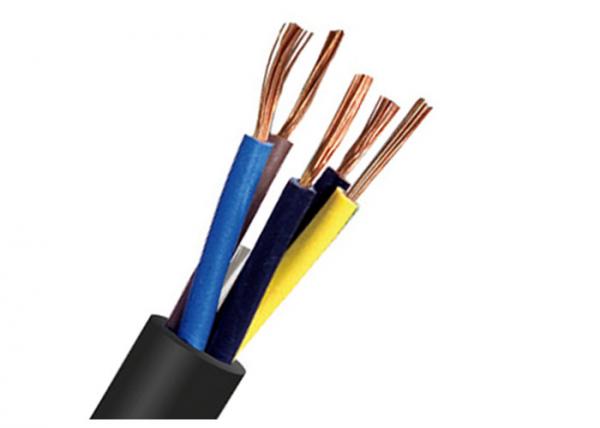

Under Adverse Conditions Rubber Sheathed Cable 450 / 750V 1.5mm – 400mm image
Brand Name :
SHAN CABLE
Model Number :
YC
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
SHANGHAI CHINA
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
Wooden Case
Voltage :
450/750V
Size :
1.5mm2 to 400mm2
Conducotor :
Flexible Copper
Insualtion :
Rubber
Sheathed :
Rubber
Place Of Origin :
Shanghai
Under Adverse Conditions Rubber Sheathed Cable 450 / 750V 1.5mm – 400mm
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color:
Black
Rubber sheathed flexible cable wire:
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Rubber copper wire Working Conditions
1.Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)
2.The long-term working temperature of conductor should be no longer than 65°C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
min | max | Copper | Tinned-Copper | YC | YCW | ||
1×1.5 | 30/0.25 | 5.7 | 7.1 | 13.3 | 13.7 | 51.9 | 54.50 |
1×2.5 | 49/0.25 | 6.3 | 7.9 | 7.98 | 8.21 | 73.7 | 77.39 |
1×4 | 56/0.3 | 7.2 | 9 | 4.95 | 5.09 | 110.5 | 116.03 |
1×6 | 84/0.3 | 7.9 | 9.8 | 3.3 | 3.39 | 132 | 138.60 |
1×10 | 84/0.4 | 9.5 | 11.9 | 1.91 | 1.95 | 220.6 | 231.63 |
1×16 | 126/0.4 | 10.8 | 13.4 | 1.21 | 1.24 | 295.1 | 309.86 |
1×25 | 196/0.4 | 12.7 | 15.8 | 0.78 | 0.795 | 425.6 | 446.88 |
1×35 | 276/0.4 | 14.3 | 17.9 | 0.386 | 0.393 | 589.2 | 618.66 |
1×50 | 396/0.4 | 16.5 | 20.6 | 0.295 | 0.297 | 758.4 | 796.32 |
1×70 | 360/0.5 | 18.6 | 23.3 | 0.272 | 0.277 | 1034.1 | 1085.81 |
1×95 | 475/0.5 | 20.8 | 26 | 0.206 | 0.21 | 1324.7 | 1390.94 |
2×1.5 | 30/0.25 | 8.5 | 11 | 13.3 | 13.7 | 132 | 138.60 |
2×2.5 | 49/0.25 | 10.2 | 13.1 | 7.98 | 8.21 | 203.6 | 213.78 |
2×4 | 56/0.3 | 11.8 | 15.4 | 4.95 | 5.09 | 280.2 | 294.21 |
2×6 | 84/0.3 | 13.1 | 16.8 | 3.3 | 3.39 | 412.2 | 432.81 |
2×10 | 84/0.4 | 17.7 | 22.6 | 1.91 | 1.95 | 669.1 | 702.56 |
2×16 | 126/0.4 | 20.2 | 25.7 | 1.21 | 1.24 | 906.6 | 951.93 |
2×25 | 196/0.4 | 24.3 | 30.7 | 0.78 | 0.795 | 1144.3 | 1201.52 |
2×35 | 276/0.4 | 27.3 | 34.6 | 0.386 | 0.393 | 1505.5 | 1580.78 |
2×50 | 396/0.4 | 31.8 | 40.1 | 0.295 | 0.297 | 2464.2 | 2587.41 |
2×70 | 360/0.5 | 35.8 | 45.1 | 0.272 | 0.277 | 3254.8 | 3417.54 |
2×95 | 475/0.5 | 40.2 | 51 | 0.206 | 0.21 | 4144.3 | 4351.52 |
We are China Under Adverse Conditions Rubber Sheathed Cable 450 / 750V 1.5mm – 400mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
