Unarmoured XLPE Insulated Power Cable 35mm2 Copper Or Aluminum Conductor

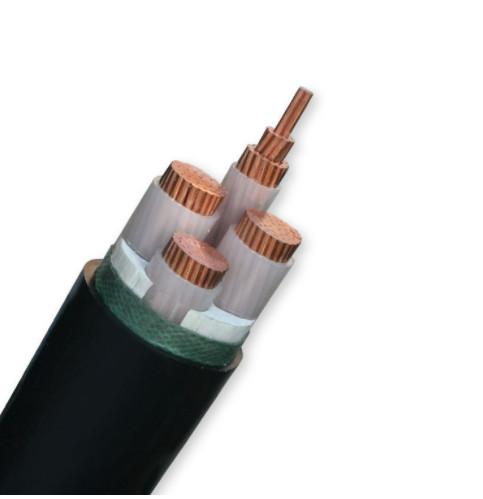

Unarmoured XLPE Insulated Power Cable 35mm2 Copper Or Aluminum Conductor image
Brand Name :
Huanghe
Model Number :
XLPE Insulated Copper Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor Core :
Copper or aluminum
Insulation Material :
XLPE
Outer Sheath Material :
XLPE/PVC
Armoured Type :
unarmoured
Cross Section Area :
35mm2
Standards :
IEC60502,
Colour :
black
Application :
Power Station
Unarmoured XLPE Insulated Power Cable 35mm2 Copper Or Aluminum Conductor
Part 1: Cores and Sections
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
Part 2 : Construction:
Conductor: Solid or stranded Copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Part 4 :Operating Features:
1. The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2. Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Remarks: D means practical external diameter of the cable
35mm2 XLPE Insulated and PVC Sheathed Power Cable Insulated Power Cable
| Item Name | Copper conductor PVC insulated wire | ||
| Type | VV, VLV, VV22, VLV22, VV32, VLV32 | YJLHV, YJLHV60, YJLHV62, YJLHV22, YJHY, YJLHY63, ZC-YJLHV, WDZA-YJHY | YJV, YJLV, YJY, YJLY, YJV22, YJLV22, YJV23, YJLV23, YJV32, YJLV32, YJV33, YJLV33, YJV42, YJLV42, YJV43, YJLV43 |
| Abstract |
PVC insulation, PVC sheathed |
XLPE insulation, Al conductor |
XLPE insulation, PVC sheathed |
| Rated Voltage | ≤3.6/6KV | 0.6/1KV | ≤26/35KV |
| Feature |
1.stable structure 2.easy laying 3.underground laying available |
specifical used in civil building, public building, industrial building, tunnel, cable tray, cable duct, etc. |
1.excellent electric conductivity |
| Conductor Material |
Conductor |
Core Number | Insulation Material | Armor | |
| Cu, Al or as order | 1.5~800 | 1~5 | XLPE, PVC, PE, PO, Plastic or Rubber | non armored, steel tape armored or steel wire armored | |
35mm2 XLPE Insulated and PVC Sheathed Power Cable Insulated Power Cable
We are China Unarmoured XLPE Insulated Power Cable 35mm2 Copper Or Aluminum Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
