UL/VDE Standard Silicone Rubber Insulated Fiberglass Braided Cable Internal Wiring Use
UL/VDE Standard Silicone Rubber Insulated Fiberglass Braided Cable Internal Wiring Use image
Place of Origin :
China
Brand Name :
Sino
Model Number :
fiber
Jacket :
Fiberglass Braided
MOQ :
300 meters
Packaging Details :
Roll/Carton/Spool
Delivery Time :
15~30 days as per order
Payment Terms :
TT
Supply Ability :
100000 meters per week
Type :
Insulated
Application :
internal wiring
Conductor Material :
Tinned/bare copper
Conductor Type :
Stranded
Insulation Material :
Silicone Rubber
Certification :
ISO,CCC
UL/VDE Standard Silicone Rubber Insulated Fiberglass Braided Cable Internal Wiring Use
1) Size: 18/16/14 AWG
2) Temp. range: -100 C~280 C
3) Voltage: 300/500V
Description http://www.electriccablechina.com [email protected]

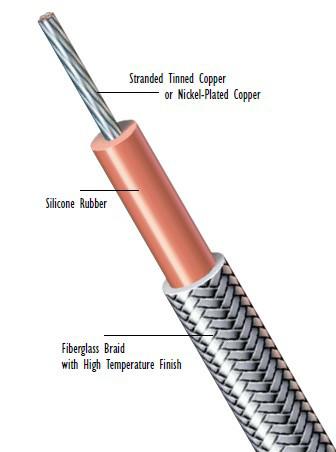

1) Name: Fiberglass Braided Silicone Rubber Wire
2) Style No.: AWM 3071
3) Size: 10AWG~22AWG
Feature
1) Rated Voltage: 300/500V
2) Rated Temperature: -60°C~+200°C
3) Conductor: Tinned Copper, Nickel Copper, Silver Copper
4) Insulation: Silicone Rubber
5) Jacket: Fiber Glass with high temperature finish, surface marking internally or externallly
Applications
Main used for internal wiring in equipment,such as Oven,Air-condition,Microwave Oven etc.
Also applying for home appliance , electric instrument, lighting equipment, lamp, power resistor, medical unit and more in high temperature conditions.
|
Conductor |
Insulation |
Max. Conductor Resistance (Ω/km) |
Reference Weight |
|||||
|
Style |
Size |
Conductor Structure |
Nominal Thickness |
Braid Thickness |
Nominal Diameter |
Max. Diameter |
||
|
3071 |
18 |
16/0.26 |
0.8 |
0.20 |
3.2 |
3.5 |
23 |
17 |
|
16 |
26/0.26 |
0.8 |
0.20 |
3.6 |
3.9 |
14.6 |
23.9 |
|
|
14 |
41/0.26 |
0.8 |
0.20 |
4.0 |
4.4 |
9.9 |
34.2 |
|
|
3074 |
12 |
43/0.32 |
0.8 |
0.20 |
4.6 |
5.0 |
5.38 |
45.9 |
|
3075 |
10 |
35/0.45 |
1.2 |
0.25 |
6.2 |
6.6 |
3.5 |
76 |
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
OEM Service Provide , Contact Pinson [email protected] for details
We are China UL/VDE Standard Silicone Rubber Insulated Fiberglass Braided Cable Internal Wiring Use manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
