U1000R2V Copper Conductor Low Voltage Power Cable XLPE Insulation PVC Power Cable 16 25 120 Mm2

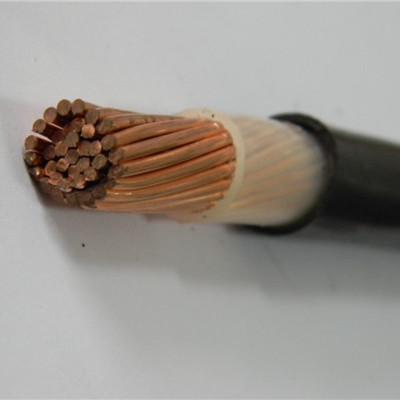

U1000R2V Copper Conductor Low Voltage Power Cable XLPE Insulation PVC Power Cable 16 25 120 Mm2 image
Brand Name :
YIFANG
Model Number :
U1000R2V
Certification :
ISO CCC type test report
Place of Origin :
China
MOQ :
1000m
Price :
USD 1 to 10
Supply Ability :
100000m per week
Packaging Details :
wooden steel drum
Standard :
NF C 32-321
Voltage :
0.6/1kV
Section :
1.5mm2 to 400mm2
Core number :
1 core to 5 cores
Câble U1000R2V Copper conductor XLPE insulation PVC sheath Power cable
U-1000 R2V cable (also known as XV cable) and U-1000 RVFV cable (also known as XAV cable) are rigid unarmoured power and control cables used for the supply of electricity in a wide range of semi-industrial and industrial applications with a voltage rating of 600/1000V. This including lighting remote control and telecontrol installation systems, and other electrical devices.
This range is manufactured in accordance with French Norms (U-1000 R2V: NF C 32-322 / U-100 RVFV: NF C 32-321).
The U-1000 R2V cable can be fixed on cable trays, within conduits or to walls. The U-1000 RVFV is constructed with additional two layers of steel tape armouring and so can also be used outdoors and in direct burial installations or where additional protection against mechanical stresses is required. The U-1000 RVFV is not recommended for burial in areas that are flooded for more than two months per year or in trenches used as drains.
| U-1000 R2V XV | U-1000 RVFV XAV | |
|---|---|---|
| Conductor | 1.5mm2 to 4mm2: Solid copper (Class 1) 6mm2 and above: Stranded copper (Class 2) |
|
| Insulation | Cross-linked Polyethylene (XLPE) | |
| Inner sheath | Polyvinyl Chloride (PVC) | |
| Armour | – | Two steel tapes |
| Outersheath | Flame retardant PVC | PVC |
The smaller sizes are also available with a stranded copper (Class 2) conductor upon request. Cables are available with 2-core, 3-core, 3-core plus earth, 4-core, 5-core and 7-core copper conductors.
The R2V cable has a temperature rating of -10oC to +50oC during installation, before broadening to -25oC to +90oC when fixed. The RVFV has a range of -10oC to +60oC.
Class 2 stranded conductors are available on all sized cables on request.
| No. | CorexSize mm2 |
Min. Conductor Stranding No. | Insulation nominal thickness mm |
Outer Sheath nominal thickness mm |
Approx. cable dia. mm | Approx. Cable Weight kg/km |
Max. conductor DC resistance at 20 ℃ Ohm/km |
| 1 | 4×25 | 7 | 0.9 | 1.8 | 23.1 | 1182 | 0.727 |
| 2 | 5×16 | 7 | 0.7 | 1.8 | 21.6 | 977 | 1.15 |
| 3 | 5×10 | 7 | 0.7 | 1.8 | 18.8 | 667 | 1.83 |
| 4 | 5×6 | 7 | 0.7 | 1.8 | 16.3 | 446 | 3.08 |
| 5 | 5×4 | 1 | 0.7 | 1.8 | 14.0 | 322 | 4.61 |
| 6 | 5×2.5 | 1 | 0.7 | 1.8 | 12.7 | 237 | 7.41 |
| 7 | 3×4 | 1 | 0.7 | 1.8 | 12.0 | 220 | 4.61 |
| 8 | 3×2.5 | 1 | 0.7 | 1.8 | 11.4 | 184 | 7.41 |
| No. | CorexSize mm2 |
Min. Conductor Stranding No. | Insulation nominal thickness mm |
Outer Sheath nominal thickness mm |
Approx. cable dia. mm | Approx. Cable Weight kg/km |
Max. conductor DC resistance at 20 ℃ Ohm/km |
| 1 | 4×240 | 34 | 1.7 | 2.8 | 52.6 | 9543 | 0.0754 |
| 2 | 4×120 | 18 | 1.2 | 2.3 | 37.6 | 4819 | 0.153 |
| 4 | 4×70 | 12 | 1.1 | 2.0 | 30.0 | 2876 | 0.268 |
| 5 | 4×50 | 6 | 1.0 | 1.9 | 25.8 | 2079 | 0.387 |
We are China U1000R2V Copper Conductor Low Voltage Power Cable XLPE Insulation PVC Power Cable 16 25 120 Mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
