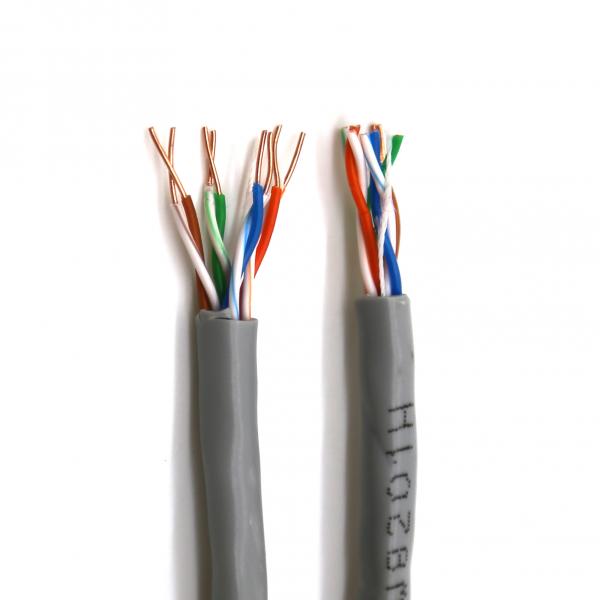

Twisted – Pair Indoor Outdoor HDPE Lan Cable

Twisted – Pair Indoor Outdoor HDPE Lan Cable image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
network cable

Certification :
RoHS/CE/CCC

Place of Origin :
SHENZHEN CHINA

MOQ :
10 boxes

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
20 kilometer/ day

Delivery Time :
10~15 working days

Packaging Details :
305 meters per box or according to the customer’s request.

Conductor :
Plain annealed copper wire

Conductor Size :
0.35mm–0.52mm

Type :
Cat 5e

Insulation Material :
HDPE Insulation

Insulation diameter :
0.88-0.92mm

Jacket Material :
PVC or LSZH

Jacket Outer Diameter :
5.0-5.5mm

Number of Conductor :
4 Pair Twisted

Cable length :
305m/box

unripe rope :
Yes

Certificate :
CE ROHS TIA

Operating Temperature :
-10℃-70℃

Application :
Indoor Network Cable, computer cable

Cat 5e network cable twisted-pair indoor outdoor HDPE lan cable

Production Description:

1. Production Characteristic

Frequency (MHz)	Attenuation (dB/100m)	RL (dB)	Next (dB)	PS Next (dB/100m)
1	2	20	65.3	63.5
4	4.1	23	56.3	54.3
8	5.8	24.5	52.4	50.5
10	6.6	25	51.3	49.2
16	8.2	25	49.3	47.4
20	9.3	25	48.8	46.9
25	10.4	24	45.3	43.4
31.25	11.7	23	43	41.8
62.5	17	21	39.2	37.2
100	22	20	36.3	34.4
155	28.1	19	35.5	33.6
200	32.4	19	31.8	29.9
240	36	18	30.6	28.7
300	41	18	29.2	27
350	44.9	17	28	25.6

2. Core Identification

3. Production Features

Product:	CAT5E UTP FTP SFTP Cable
Conductor:	Solid bare copper
Number of pairs:	4
Nominal conductor dimensions(mm):	0.5
Insulation material:	HDPE
Nominal insulation dimension(mm):	0.88
Color code:	white/blue(ring)&blue, white/orange(ring)&orange, white/green(ring)&green, white/brown(ring)&brown
Separator:	no
Individual shield&material:	no
Outer shield&material:	yes (AL Foil)
Drain wire:	yes(Tinned Copper)
Outer jacket material:	PVC/LSZH
Ripcord:	Per customer's requirement
Nominal cable diameter (mm):	6.2±0.3

4. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

5. Application

Computer Network Cabling Project
Broadband Network Communication
Digital ISDN Network and ATM 155Mbps Network
Ethernet Network
Audio and Data Transmission

6. Tabular data

Construction

	1. Conductor material:	Solid bare copper 0.50mm
	2. Insulation material:	HDPE (High density Polyethylene)
	3. Outer sheath material:	PVC
	4. Rip cord:	Nylon

Packaging

Approx.Weight	Package	Package Dimension(cm)	Outer packing
10.4 kg	305 m per box	36 x 36 x 21	Carton box

7. Product Image

Product compare

Jinhuanyu product other products

Fluke Test Report

8. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

9. Company information

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

We are China Twisted – Pair Indoor Outdoor HDPE Lan Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
