Tuv Approval Pv Dc Cable Xlpo Insulated Tinned Copper 4mm 6mm 10mm 1.5kv

 China Tuv Approval Pv Dc Cable Xlpo Insulated Tinned Copper 4mm 6mm 10mm 1.5kv supplier

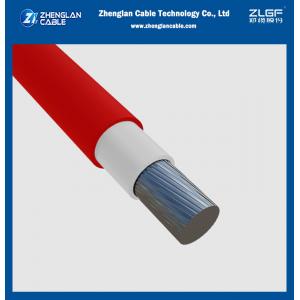

Tuv Approval Pv Dc Cable Xlpo Insulated Tinned Copper 4mm 6mm 10mm 1.5kv image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :TUV Approval XLPO Insulated Tinned Copper Solar Wire 4MM 6MM 10MM 1.5kv PV Cable DC Solar copper cable
Certification :3C,ISO 9001:2015,ISO 14001:2005
Place of Origin :China
MOQ :5000meters single color
Price :Negotiable
Payment Terms :T/T, L/C, ,Western Union
Supply Ability :60000M/DAY
Delivery Time :7-15DAY
Packaging Details :200M/ROLL
Material :Cu
Insulation :XLPO
Outer sheath :XLPO
Size :4mm2
Standard :EN50618, EN50332-1
Voltage :DC 1.5KV

TUV Approval XLPO Insulated Tinned Copper Solar Wire 4MM 6MM 10MM 1.5kv PV Cable DC Solar copper cable

Solar cables are the designated cable used for rooftop PV installations. They are suitable for free hanging, movable, fixed installation and buried in ground in constructional covered systems indoor, outdoor or in hazard explosion areas, in industry and agriculture.

Cable Construction:

Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black

Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement

TUV Approval XLPO Insulated Tinned Copper Solar Wire 4MM 6MM 10MM 1.5kv PV Cable DC Solar copper cable​ CHARACTERISTICS:

Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V

Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC

Temperature Rating Fixed: -40°C to +90°C

Minimum Bending Radius 5 x overall diameter

Maximum Conductor Temperature +120°C (for 20000h)

Flame retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3

TUV Approval XLPO Insulated Tinned Copper Solar Wire 4MM 6MM 10MM 1.5kv PV Cable DC Solar copper cable Technical Date:

Nominal voltage (DC):1.5KV (AC):1.0/1.0KV
Voltage test on completed cable (AC):6.5KV(DC):15KV,5MIN
Ambient temperature -40℃~+90℃
Thermal endurance properties

+120℃,2000h

elongation at break≥50%

Service life >25 (-40℃~+90℃)
Refer toshortcirauit allows the temperature 200℃,5 (S)
Bending radius ≥4×φ (D<8M),≥6×φ (D≥8MM)
Resistance against acid and alkaline solution EN60811-404
Cold bending test EN60811-504
Weathering/U- resistance HD605/A1
0-zone resistance at complete cable EN50396
Test under fire conditions EN60332-1-2

TUV Approval XLPO Insulated Tinned Copper Solar Wire 4MM 6MM 10MM 1.5kv PV Cable DC Solar copper cable specification:

Construction Conductor Construction Conductor Outer Cable Outer Resistance Max. Current Carring Capacity AT 60℃
mm² nxmm mm mm Ω/Km A
1X1.5 30X0.25 1.58 4.60 13.7 30
1X2.5 47X0.25 1.98 5.10 8.21 41
1X4.0 56X0.283 2.35 5.50 5.09 55
1X6.0 84X0.283 3.06 6.30 3.39 70
1X10 142X0.3 4.60 7.80 1.95 98
1×16 228X0.3 5.60 9.20 1.24 132
1×25 361X0.3 6.95 11.30 0.795 176
1×35 494X0.3 8.30 13.30 0.565 218

TUV Approval XLPO Insulated Tinned Copper Solar Wire 4MM 6MM 10MM 1.5kv PV Cable DC Solar copper cable images:

We are China Tuv Approval Pv Dc Cable Xlpo Insulated Tinned Copper 4mm 6mm 10mm 1.5kv manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
