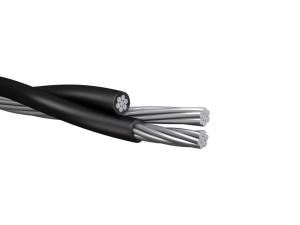

Triplex Service Drop Cable

This triplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
Professional aluminum ABC service drop cable manufacturer from China, Meet your kinds of requirement service drop cables, With over 30 years production experience and 15 years export experience, factory price without any third party.
The cable size can be customized according to your requirement, On-time delivery.

CONSTRUCTION

Two insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR

ADDITIONAL STANDARDS

Service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded,Coated Steel Reinforced (ACSR)
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
ANSI/ICEA S-76-474

Triplex Service Drop Cable Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding Triplex Service Drop Cable chart,Triplex Service Drop Cable sizes,Triplex Service Drop Cable full form,Triplex Service Drop Cable ampacity,Triplex Service Drop Cable diameter and much, much more.

Triplex Service Drop Cable manufactured by GE Cable meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

Triplex Service Drop Cable – Aluminum Conductor AAC

Code* Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000		Allowable Ampacities+
	Size (awg/kcmil）	Strand- ing	Insul. Thick. (mils)	Size (AWG/kcmil)	Strand- ing	Rated Strength (lbs).	XLP	POLY	XLP	POLY
AAC Neutral-Messenger
Patella	6	7	45	6	7	563	103	103	85	70
Oyster	4	7	45	4	7	881	154	154	115	90
Clam	2	7	45	2	7	1350	233	233	150	120
Murex	1/0	7	60	1/0	7	1990	374	374	205	160
Purpura	1/0	9	60	1/0	7	1990	368	368	205	160
Nassa	2/0	7	60	2/0	7	2510	462	462	235	185
Melita	3/0	17	60	3/0	19	3310	562	562	275	215
Portunus	4/0	18	60	4/0	19	4020	696	696	315	245
Nannynose	336.4	19	80	336.4	19	6146	1118	1118	420	325

Triplex Service Drop Cable – Aluminum Conductor ACSR

Code* Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000		Allowable Ampacities+
	Size (awg/kcmil）	Strand- ing	Insul. Thick. (mils)	Size (AWG/kcmil)	Strand- ing	Rated Strength (lbs).	XLP	POLY	XLP	POLY
ACSR Neutral-Message
Paludina	6	1	45	6	6/1	1190	109	109	85	70
Voluta	6	7	45	6	6/1	1190	114	114	85	70
Whelk	4	1	45	4	6/1	1860	--	164	115	90
Periwinkle	4	7	45	4	6/1	1860	172	172	115	90
Conch	2	7	45	2	6/1	2850	262	262	150	120
Neritina	1/0	7	60	1/0	6/1	4380	420	420	205	160
Cenia	1/0	9	60	1/0	6/1	4380	414	414	205	160
Runcina	2/0	7	60	2/0	6/1	5310	520	520	235	185
Triton	2/0	11	60	2/0	6/1	5310	512	512	235	185
Mursia	3/0	17	60	3/0	6/1	6620	635	635	275	215
Zuzara	4/0	18	60	4/0	6/1	8350	789	789	315	245
Limpet	336.4	19	80	336.4	18/1	8680	1167	1167	420	325
ACSR Reduced Neutral-Message
Scallop	4	1	45	6	6/1	1190	--	142	115	90
Strombus	4	7	45	6	6/1	1190	151	151	115	90
Cockle	2	7	45	4	6/1	1860	228	228	150	120
Janthina	1/0	7	60	2	6/1	2853	366	366	205	160
Ranella	1/0	9	60	2	6/1	2853	360	360	205	160
Cavolinia	2/0	7	60	1	6/1	3550	453	453	235	185
Clio	2/0	11	60	1	6/1	3550	444	444	235	185
Aega	3/0	17	60	1/0	6/1	4380	549	549	275	215
Cerapus	4/0	18	60	2/0	6/1	5310	681	681	315	245

Triplex Service Drop Cable – Aluminum Conductor AAAC – Alloy Neutral Messenger

Code* Word	Phase Conductor			Bare Neutral Messenger				Weight Per 1000		Allowable Ampacities+
	Size (AWG)	Strand- ing	Insul. Thick. (mils)	Equiv. Dia. (AWG)++	Size（ AWG kcmil)	Strand- ing	Rated Strength (lbs).	XLP	POLY	XLP	POLY
6201 Alloy Neutal-Messenger
Minex	6	1	45	6	30.58	7	1110	101	101	85	70
Hippa	6	7	45	6	30.58	7	1110	107	107	85	70
Prawn	4	1	45	4	48.69	7	1760	152	152	115	90
Barnacle	4	7	45	4	48.69	7	1760	160	160	115	90
Shrimp	2	7	45	2	77.47	7	2800	243	243	150	120
Gammarus	1/0	7	60	1/0	123.3	7	4460	390	390	205	160
Leda	1/0	9	60	1/0	123.3	7	4460	384	384	205	160
Dungenese	2/0	7	60	2/0	155.4	7	5390	483	483	235	185
Cyclops	2/0	11	60	2/0	155.4	7	5390	474	474	235	185
Flustra	3/0	17	60	3/0	195.7	7	6790	587	587	275	215
Lepas	4/0	18	60	4/0	246.9	7	8560	728	728	315	245
6201 Alloy Reduced Neutral-Messenger
Artemia	4	1	45	6	30.58	7	1110	135	135	115	90
Crab	4	7	45	6	30.58	7	1110	143	143	115	90
Solaster	2	7	45	4	48.69	7	1760	216	216	150	120
Sandcrab	1/0	7	60	2	77.47	7	2800	347	347	205	160
Echinus	1/0	9	60	2	77.47	7	2800	341	341	205	160
Fulgar	3/0	17	60	1/0	123.3	7	4460	519	519	275	215
Arca	4/0	18	60	2/0	155.4	7	5390	643	643	315	245

Few More thing you should know

* Note: Designated sizes are ACSR 6/1 diameter equivalent resistivity per ASTM-B-399 for 6201. Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9; 2ft/sec. wind in sun.
** To determine current ampacity by conductor size, please consult The National Electric Code, latest edition.
The data is approximate and subject to normal manufacturing tolerances.
