Triplex Overhead Service Drop Cable 600V PE / XLPE Insulation Black Color

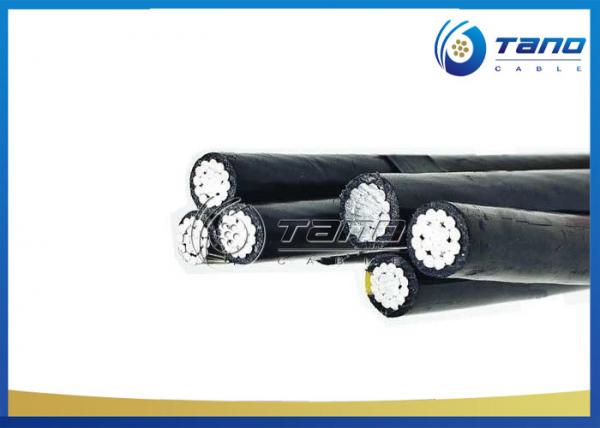

Triplex Overhead Service Drop Cable 600V PE / XLPE Insulation Black Color image
Brand Name :
TANO CABLE
Model Number :
Service drop cable
Certification :
ISO,CE
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000KM per month
Delivery Time :
7-20 working days
Packaging Details :
by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Insulation :
XLPE/PE
Color :
Black
Key words :
Service Drop Cable
Conductor :
All aluminum alloy wire and All aluminum wire
Voltage :
0.6/1kV
Core :
four cores
TANO CABLE Triplex Service Drop Aluminum aerial cable
Description
Triplex Service Drop
600V Triplex Aluminum Conductor PE or XLPE Insulation
Standards of triplex cable
ASTM – B-230 Aluminum Wire,1350-H19 for electrical purposes ASTM – B-231 Aluminum Conductors, Concentric-Lay-Stranded ASTM – B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced ICEA S-61-402 and ICEA S66-524
Construction of aluminum xlpe cable
Conductor: Concentrically stranded, compressed 1350-H19 aluminum/ 6201 all aluminum conductor
Insulation: Polyethylene or cross-linked polyethylene
Assembly: Two insulated aluminum conductors with a bare neutral-messenger
Jacket: None
Technical Specification
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
|||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Equiv. Dia. (AWG)++ |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Bay | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 137 | 137 | 75 | 60 |
| French Coach | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 146 | 146 | 75 | 60 |
| German Coach | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 205 | 205 | 100 | 80 |
| Arabian | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 217 | 217 | 100 | 80 |
| Belgian | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 328 | 328 | 135 | 105 |
| Shetland | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 519 | 519 | 180 | 140 |
| Thoroughbred | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 639 | 639 | 205 | 160 |
| Trotter | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 789 | 789 | 235 | 185 |
| Walking | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 977 | 977 | 275 | 210 |
* Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
Drawing:
We are China Triplex Overhead Service Drop Cable 600V PE / XLPE Insulation Black Color manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
