Triple Row Slewing Ring Bearing Rolling For Steel Plant 191.50.5600.990.41.1502

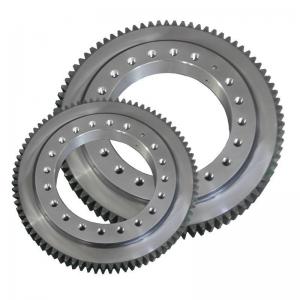

Triple Row Slewing Ring Bearing Rolling For Steel Plant 191.50.5600.990.41.1502 image

Product Description

Drawing No. Balltrackdia. DL [mm]								Tooth width	Permissible tangential forcesnormal	Permissible tangential forcesmaximum
	Weight	Outerdiameter	Innerdiameter	Overall	External	Internal	Number of bolt
		(O.D.)	(I.D)	height	bolt circle dia.	bolt circle dia.	holes per hole circle
		Da	Di	H	La	Li	n	b
	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]
011.20.0755.000.11.1504 011.20.0755.001.21.1504	101	862,8	679	82	800	706	24	50	1560 2400	3120 4800
011.20.0971.000.11.1504 011.20.0971.001.21.1504	128	1078,4	895	82	1015	922	30	50	2080 3200	4160 6400
011.20.1220.000.11.1504 011.20.1220.001.21.1504	178	1342,4	1140	82	1270	1170	48	58	2915 4483	5830 8966
011.20.1385.000.11.1504 011.20.1385.001.21.1504	201	1502,4	1305	82	1435	1335	54	58	2915 4483	5830 8966
011.25.1200.600.11.1503 011.25.1200.601.21.1503	301	1378,6	1100	102	1290	1135	36	76	4770 6975	9540 13950
011.25.1461.000.11.1503 011.25.1461.001.21.1503	381	1648,6	1360	102	1555	1395	40	76	4770 6975	9540 13950
011.25.1800.000.11.1503 011.25.1800.001.41.1503	488	2001,6	1700	102	1890	1735	48	76	5725 8371	11450 16742
011.30.1440.190.11.1503 011.30.1440.191.41.1503	520	1653,6	1320	120	1545	1365	36	91	685 1002	1371 2004
011.30.1734.000.11.1503 011.30.1734.001.41.1503	636	1953,6	1615	120	1845	1660	44	91	685 1002	1371 2004
011.30.2031.600.11.1503 011.30.2031.601.41.1503	755	2253,6	1910	120	2140	1955	48	91	685 1002	1371 2004
011.30.2235.000.11.1503 011.30.2235.001.41.1503	827	2457,6	2115	120	2345	2160	52	91	685 1002	1371 2004
011.35.1750.700.11.1503 011.35.1750.701.41.1503	789	1985,2	1620	138	1860	1670	44	104	914 1336	1828 2672
011.35.2220.000.11.1503 011.35.2220.001.41.1503	1019	2461,2	2090	138	2335	2135	60	104	914 1336	1828 2672
011.35.2620.000.11.1503 011.35.2620.001.41.1503	1244	2876,8	2490	138	2735	2540	60	104	1045 1527	2090 3054
011.40.2240.000.11.1502 011.40.2240.001.41.1502	1316	2524,8	2090	156	2375	2145	48	117	1175 1627	2351 3255
011.40.2619.000.11.1502 011.40.2619.001.41.1502	1615	2912,4	2465	156	2755	2520	52	117	1322 1831	2645 3662
011.40.2795.000.11.1502 011.40.2795.001.41.1502	1723	3096,0	2645	156	2930	2700	54	117	1469 2034	2939 4068
011.40.2915.000.11.1502 011.40.2915.001.41.1502	1790	3216,0	2765	156	3050	2820	60	117	1469 2034	2939 4068
011.40.3150.000.11.1502 011.40.3150.001.41.1502	1969	3456,0	3000	156	3285	3055	60	117	1469 2034	2939 4068
011.50.2987.001.49.1502	2288	3290,4	2820	185	3130	2880	66	138	2160	4320
011.50.3167.001.49.1502	2431	3470,4	3000	185	3310	3060	66	138	2160	4320
011.50.3347.001.49.1502	2566	3650,4	3180	185	3490	3240	72	138	2160	4320
011.50.3567.001.49.1502	2702	3866,4	3400	185	3710	3460	78	138	2160	4320
011.50.3747.001.49.1502	2837	4046,4	3580	185	3890	3640	84	138	2160	4320
011.50.4140.001.49.1502	3282	4456,0	3970	187	4285	4030	90	140	2434	4869
012.18.0748.000.11.1504 012.18.0748.002.21.1504	90	823	648	77	798	705	24	45	1520 2325	3040 4650
012.20.0895.000.11.1504 012.20.0895.001.21.1504	118	971	784	82	944	850	30	50	2260 3475	4520 6950
012.20.1085.000.11.1504 012.20.1085.001.21.1504	154	1161	960	90	1134	1040	36	55	3110 4800	6220 9600
012.20.1360.000.11.1504 012.20.1360.001.21.1504	213	1440	1210	82	1410	1300	54	58	3640 5600	7280 11200
012.25.1360.600.11.1503 012.25.1360.601.21.1503	336	1460	1180	102	1425	1270	36	76	4770 6975	9540 13950
012.25.1600.000.11.1503 012.25.1600.001.21.1503	405	1700	1404	102	1665	1510	42	76	5720 8370	11440 16740
012.30.1381.000.11.1503 012.30.1381.001.41.1503	474	1500	1164	120	1455	1275	36	91	685 1002	1370 2004
012.30.1630.000.11.1503 012.30.1630.001.41.1503	558	1750	1416	120	1705	1525	40	91	685 1002	1370 2004
012.30.1800.000.11.1503 012.30.1800.001.41.1503	643	1920	1568	120	1875	1695	48	91	685 1002	1370 2004
012.30.1995.000.11.1503 012.30.1995.001.41.1503	716	2115	1764	120	2070	1890	48	91	800 1169	1600 2338
012.30.2330.000.11.1503 012.30.2330.001.41.1503	839	2450	2100	120	2405	2225	54	91	800 1169	1600 2338
012.30.2538.000.11.1503 012.30.2538.001.41.1503	963	2660	2288	120	2615	2430	60	91	914 1336	1828 2672
012.35.1960.400.11.1503 012.35.1960.401.41.1503	851	2090	1722	138	2045	1850	52	104	914 1336	1828 2672
012.35.2500.000.11.1503 012.35.2500.001.41.1503	1112	2630	2254	138	2585	2385	66	104	914 1336	1828 2672
012.35.2690.000.11.1503 012.35.2690.001.41.1503	1225	2820	2432	138	2775	2580	72	104	1045 1527	2090 3054
012.40.2199.300.11.1502 012.40.2199.301.41.1502	1238	2350	1920	156	2295	2065	52	117	1175 1627	2350 3255
012.40.2622.400.11.1502 012.40.2622.401.41.1502	1495	2770	2336	156	2715	2485	60	117	1175 1627	2350 3255
012.40.2950.000.11.1502 012.40.2950.001.41.1502	1764	3100	2646	156	3045	2815	60	117	1322 1831	2645 3662
012.40.3300.000.11.1502 012.40.3300.001.41.1502	1935	3450	3006	156	3395	3165	66	117	1322 1831	2645 3662
012.45.2940.000.19.1502 012.45.2940.001.49.1502	1950	3100	2656	175	3045	2800	66	132	1326 1836	2652 3673
012.45.3400.100.19.1502 012.45.3400.101.49.1502	2435	3560	3080	175	3505	3260	72	132	1658 4591	3316 2295
012.50.2559.201.49.1502	1892	2725	2250	185	2670	2410	60	138	2160	4320
012.50.3520.001.49.1502	2657	3685	3200	185	3630	3370	78	138	2400	4800
012.50.3739.001.49.1502	2823	3905	3420	185	3850	3590	84	138	2400	4800
012.50.3839.001.49.1502	2905	4005	3520	185	3950	3690	84	138	2400	4800

We are China Triple Row Slewing Ring Bearing Rolling For Steel Plant 191.50.5600.990.41.1502 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
