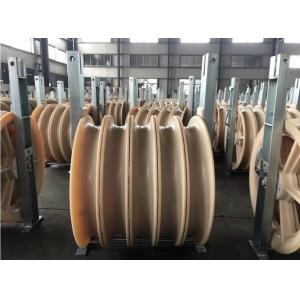

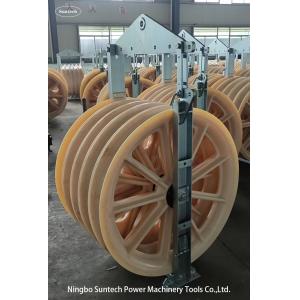

Transmission Nylon Wheel Bundled Conductor Stringing Blocks
750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing.
The sheave is made in MC Nylon.
750MM Nylon Sheaves Conductor Stringing Blocks
Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
10131 | SHDN750 | 500-600 | 30 | 39 | Nylon, optional can be lined with neoprene |
10132 | SHSQN750 | 500-600 | 60 | 98 | |
10133 | SHWQN750 | 500-600 | 100 | 156 |
Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors,
and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central
sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter
of sheave X width of sheave (mm).
2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
We are China Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

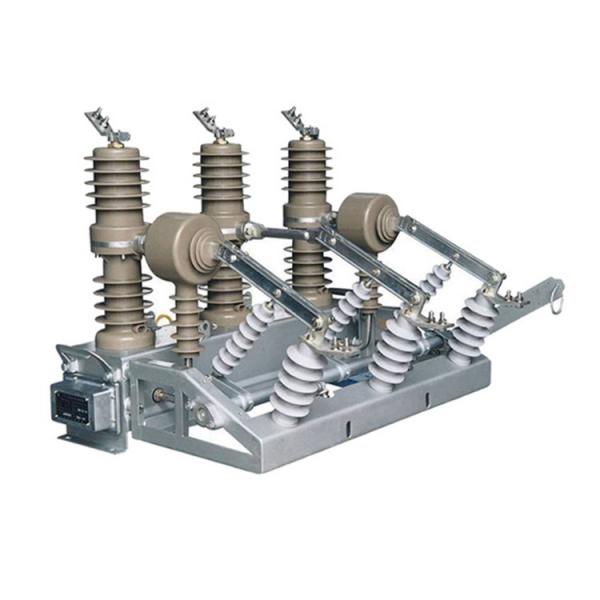

Tags: 24KV Outdoor Vacuum Circuit Breaker, 24KV Transmission Line Circuit Breaker, conductor stringing blocks, GB1102 Outdoor Vacuum Circuit Breaker
