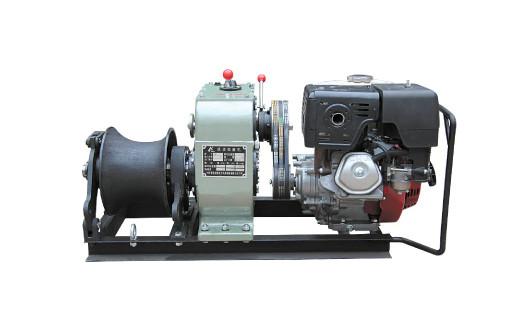

Transmission Line Wire Pulling Tools 5 Ton Cable Winch Puller Hoist
Transmission Line Wire Pulling Tools 5 Ton Cable Winch Puller Hoist image
Brand Name :
Suntech
Model Number :
JJQ-50
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 pcs
Price :
Get newest price
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
900 sets per month
Delivery Time :
5-7 workdays
Packaging Details :
Exported cartons or cases
Name :
Cable Pulling Winch
Rotation direction :
Corotation
rotational Speed :
6.5RPM
Application :
Power Transmission
Tractive force :
5Ton
Power :
Honda or Yamaha
Transmission Line Wire Pulling Tools 5 Ton Cable Winch Puller Hoist
Cable Winch with diesel engine is used to erecting pylon and sagging operation in the construction.This kind machine is cooled by air, so not adding water.
It’s mainly used for power transmission and transformation project (including underground power cable engineering), telecommunications, communications engineering construction tower erection,traction cable, tighten the wire, lifting weights and tools, especially suitable for small batch job in the city.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.
Specifications:
| Item number | Model | Rotation | Gear | (RPM) | (M/MIN) | (T) | (KW) | (MM) | (KG) |
| direction | rotational | Traction | Tractive | Power | Outline | Weight | |||
| speed | speed | force | size | ||||||
| 09121A | JJC-30 | Ⅰ | 11.5 | 5 | 3 | 2.94 | 840x600x500 | 108 | |
| corotation | Slow | ||||||||
| 170F | |||||||||
| Diesel | |||||||||
| Ⅱ | 21 | 9 | 1.8 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09121B | JJD-30 | Ⅰ | 8.5 | 4 | 3 | 3 | 770x600x460 | 108 | |
| corotation | Slow | ||||||||
| 3KW | |||||||||
| Ⅱ | 10.5 | 6.5 | 1.8 | ||||||
| Electromotor | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 9123 | JJQ-50 | Ⅰ | 6.5 | 4 | 5 | 6.61 | 1000x550x520 | 135 | |
| corotation | Slow | ||||||||
| 9HP | |||||||||
| Gasoline | |||||||||
| Ⅱ | 16 | 9 | 2.2 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09123A | JJC-50 | Ⅰ | 8 | 4.5 | 5 | 4.41 | 1000x750x600 | 168 | |
| corotation | Slow | ||||||||
| 6.6HP | |||||||||
| Diesel | |||||||||
| Ⅱ | 19 | 11 | 2.3 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09123B | JJD-50 | Ⅰ | 5.5 | 3.5 | 5 | 4 | 1000x850x520 | 160 | |
| corotation | Slow | ||||||||
| 4KW | |||||||||
| Ⅱ | 14 | 8 | 3 | ||||||
| Electromotor | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 9125 | JJQ-80 | Ⅰ | 5 | 3 | 8 | 9.6 | 1000x550x520 | 168 | |
| corotation | Slow | ||||||||
| 13HP | |||||||||
| Gasoline | |||||||||
| Ⅱ | 9 | 5 | 4.5 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting | |||||||||
| 09125A | JJC-80 | Ⅰ | 7 | 4 | 8 | 7.86 | 1000x750x630 | 230 | |
| corotation | Slow | ||||||||
| 10.5HP | |||||||||
| Diesel | |||||||||
| Ⅱ | 13 | 7.5 | 4 | ||||||
| engine | Fast | ||||||||
| reversal | Reverse | ||||||||
| No lifting |
We are China Transmission Line Wire Pulling Tools 5 Ton Cable Winch Puller Hoist manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 5 Ton Ratchet Cable Puller, Cable Winch Puller, Power Transmission 5 Ton Puller, Ratchet Cable Puller 6.5RPMSimilar Or Related
-
