Transmission Line Conductor Stringing Blocks 30 60 100KN With MC Nylon Wheels
Transmission Line Conductor Stringing Blocks 30 60 100KN With MC Nylon Wheels image
Brand Name :
Suntech
Model Number :
750X110mm stringing blocks
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C , T/T, Western Union, MoneyGram
Supply Ability :
3000 pcs per month
Delivery Time :
30days after Payment
Packaging Details :
Exported Cases and Containers
Name :
750MM STRINGING BLOCKS
Material :
MC Nylon Sheave
Block :
Transmission Line Stringing Block
Usage :
Construction Works
Capacity :
20KN-150KN
Term :
FOB,CIF,CFR
Overhead Line Conductor Stringing Blocks Nylon Wheels Stringing Of Transmission Line
Product Description
750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing. The sheave is made in MC Nylon.
750MM Nylon Sheaves Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10131 | SHDN750 | 500-600 | 30 | 39 | Nylon, optional can be lined with neoprene |
| 10132 | SHSQN750 | 500-600 | 60 | 98 | |
| 10133 | SHWQN750 | 500-600 | 100 | 156 |
Application: It is suitable to string single, two or four stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheave is made in high strength nylon. All the sheaves are mounted on ball bearings, the central sheave is specially strengthened for passing of steel wire rope. The frame is made in galvanized steel.
Note:
1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request. The data in the model means the outer diameter of sheave X width of sheave (mm).
2. The sheave size outer diameter X inner diameter X width: 750mm X 640mm X 110mm
We are China Transmission Line Conductor Stringing Blocks 30 60 100KN With MC Nylon Wheels manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

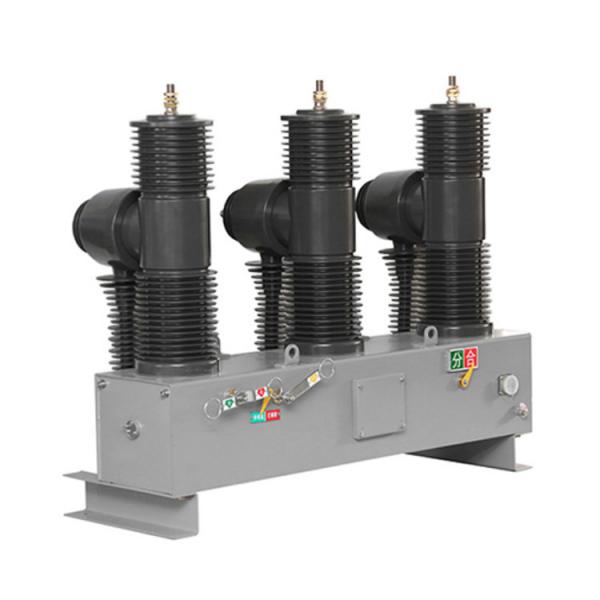

Tags: 3 Phase 1250A Circuit Breaker, conductor stringing blocks, Overhead Line 1250 Amp Circuit Breaker, WiFi 1250A Circuit BreakerSimilar Or Related
