Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope

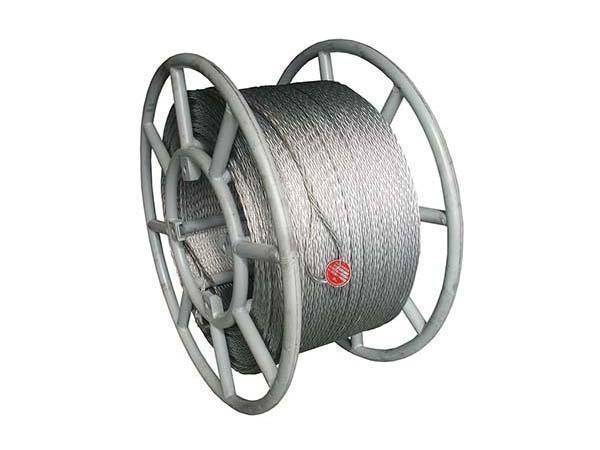

Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope image
Conductor Pulling Galvanised Steel Wire Rope / Anti Twisting Braided Steel Rope
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,
inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
●Uses :Applied to mechanical pulling and tensioning release conductors as pulling rope or leading rope.
●Feature: Braided 1960 Mpa high-strength galvanized steel wire .rotation resistance during pulling .
●The specification and length of the steel wire rope can be customized according to your request.
| Item number | Structure | Diameter (mm) | Single bundle diameter (mm) | Breaking force (kN) | Weight (kg/m) | Production length (m) |
| 18101 | Square eight strands | 7 | φ2.0 | 34.38 | 0.178 | 1000 |
| 18102 | 9 | φ2.5 | 53.9 | 0.305 | ||
| 18103 | 11 | φ3.0 | 76.94 | 0.386 | ||
| 18104 | 13 | φ3.5 | 105.04 | 0.552 | ||
| 18105 | 15 | φ4.0 | 137.51 | 0.692 | ||
| 18108 | Square twelve strands | 9 | φ2.0 | 51.57 | 0.25 | |
| 18109 | 11 | φ2.5 | 80.8 | 0.458 | ||
| 18110 | 13 | φ3.0 | 115.4 | 0.579 | ||
| 18111 | 15 | φ3.5 | 157.55 | 0.828 | ||
| 18112 | 18 | φ4.0 | 206.27 | 1.038 | ||
| 18113 | 20 | φ4.5 | 260.3 | 1.331 | 800 | |
| 18114 | 23 | φ5.0 | 320.82 | 1.557 | ||
| 18115 | 25 | φ5.5 | 387.83 | 1.882 | ||
| 18118 | Hexagon twelve strands | 11 | φ2.5 | 80.8 | 0.458 | 1000 |
| 18119 | 13 | φ3.0 | 115.4 | 0.579 | ||
| 18120 | 15 | φ3.5 | 157.5 | 0.828 | ||
| 18121 | 18 | φ4.0 | 205.71 | 1.038 | ||
| 18122 | 20 | φ4.5 | 260.34 | 1.331 | 800 | |
| 18123 | 23 | φ5.0 | 320.82 | 1.638 | ||
| 18124 | 25 | φ5.5 | 387.82 | 2.039 | 600 | |
| 18125 | 27 | φ6.0 | 461.5 | 2.373 | ||
| 18126 | 28 | φ6.2 | 520 | 2.6 | ||
| 18127 | 30 | φ6.5 | 560 | 3.12 | ||
| 18140 | Hexagon eighteen strands | 21 | φ3.0 | 173.1 | 0.87 | 800 |
| 18141 | 24 | φ3.5 | 236.33 | 1.242 | ||
| 18151 | 27 | φ4.0 | 309.4 | 1.557 | 600 | |
| 18152 | 30 | φ4.5 | 389.28 | 1.997 | ||
| 18153 | 33 | φ5.0 | 481.22 | 2.457 | ||
| 18154 | 36 | φ5.5 | 581.75 | 3.059 | ||
| 18154A | 39 | φ6.0 | 692.26 | 3.56 | ||
| 18154B | 42 | φ6.5 | 817 | 4.227 |
We are China Transmission Line Anti Twisting Braided Galvanised Conductor Steel Pilot Wire Rope manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Anti Twist Wire Rope, anti twisting galvanised steel wire rope, braided galvanised steel wire rope, conductor pulling 9mm galvanised wire ropeSimilar Or Related
-
