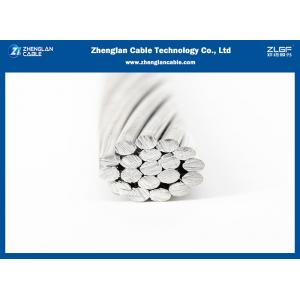

Transmission aAC Bare Aluminum Conductor 10mm/100mm/315mm/630mm Hard Drawn 1350 IEC61089 image

Get a Quote Email to us

All Aluminum Conductor 10mm/100mm/315mm/630mmAAC Bare Conductor Cable As Per IEC61089

AAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Rated Voltage: 35kv/110kv/220kv/500kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

STANDARD

Hard drawn Aluminium wires, stranded in successive layers, in opposite direction to form the Aluminium stranded A.A.C. conductor. As per BS EN 50182 or IEC 61089.

Application

Concentric lay stranded Aluminium Conductor (AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized. All aluminium conductors are made up of one or more strands of aluminium wire dep.

Technical data sheet

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
Peachbell 6 13.3 7/1.56 4.68 36.6 2.53 2.1477 75
Rose 4 21.1 7/1.96 5.88 58.2 3.91 1.3606 99
Iris 2 33.6 7/2.47 7.41 92.6 5.99 0.8567 132
Pansy 1 42.4 7/2.78 8.34 116.6 7.3 0.6763 153
1/0.0 53.5 7/3.12 9.36 147.2 8.84 0.5369 176
Aster 2/0.0 67.4 7/3.50 10.5 185.7 11.1 0.4267 203
Phlox 3/0.0 85 7/3.93 11.79 233.9 13.5 0.3384 234
Oxlip 4/0.0 107.2 7/4.42 13.26 295.2 17 0.2675 270
Valerian 250 126.7 19/2.91 14.55 348.6 20.7 0.2274 299
Sneezewort 250 126.7 7/4.80 14.4 348.8 20.1 0.2269 299
Laurel 266.8 135.2 19/3.01 15.05 372.2 22.1 0.2125 312
Daisy 266.8 135.2 7/4.96 14.88 372.3 21.4 0.2125 311
Peony 300 152 19/3.19 15.95 418.3 24.3 0.1892 335
Tulip 336.4 170.5 19/3.38 16.9 469.5 27.3 0.1686 359
Daffodil 350 177.3 19/3.45 17.25 487.9 28.4 0.1618 369
Canna 397.5 201.4 19/3.67 18.35 554.9 31.6 0.143 397
Goldentuft 450 228 19/3.91 19.55 627.6 35 0.126 429
Syringa 477 241.7 37/2.88 20.16 664.8 38.6 0.1192 444
Cosmos 477 241.7 19/4.02 20.1 664.8 37 0.1192 444
Hyacinth 500 253.3 37/2.95 20.65 696.8 40.5 0.1136 458
Zinnia 500 253.3 19/4.12 20.6 697.1 38.9 0.1134 458
Dahlia 556.5 282 19/4.35 21.75 775.8 43.3 0.1018 489
Mistletoe 556.5 282 37/3.12 21.84 775.7 44.3 0.1016 490
Meadowsweet 600 304 37/3.23 22.61 836.3 47.5 0.0948 511
Orchid 636 322.3 37/3.33 23.31 886.9 50.4 0.0892 530
Heuchera 650 329.4 37/3.37 23.59 907.4 51.7 0.0871 538
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
Flag 700 354.7 61/2.72 24.48 975.8 57.1 0.0811 561
Varbena 700 354.7 37/3.49 24.43 975.7 55.4 0.0812 561
Nasturtium 715.5 362.6 61/2.75 24.75 998.5 58.4 0.0793 569
Violet 715.5 362.6 37/3.53 24.71 998.5 56.7 0.0794 568
Cattail 750 380 61/2.82 25.38 1046 60.3 0.0754 587
Petunia 750 380 37/3.62 25.34 1046 58.6 0.0755 586
Lilac 795 402.8 61/2.90 26.1 1110 63.8 0.0713 607
Arbutus 795 402.8 37/3.72 26.04 1109 61.8 0.0715 605
Snapdragon 900 456 61/3.09 27.81 1256 70.8 0.0628 654
Cockscomb 900 456 37/3.96 27.72 1256 68.4 0.0631 652
Goldenrod 954 483.4 61/3.18 28.62 1331 75 0.0593 677
Magnolia 954 483.4 37/4.08 28.56 1331 72.6 0.0594 676
Camellia 1000 506.7 61/3.25 29.25 1394 78.3 0.0568 695
Hawkweed 1000 506.7 37/4.18 29.26 1395 76.2 0.0566 696
Larkspur 1033.5 523.7 61/3.31 29.79 1442 81.3 0.0547 710
Bluebell 1033.5 523.7 37/4.25 29.75 1441 78.8 0.0547 710
Marigold 1113 564 61/3.43 30.87 1553 87.3 0.051 740
Hawthorn 1192.5 604.2 61/3.55 31.95 1662 93.5 0.0476 771
Narsissus 1272 644.5 61/3.67 33.03 1774 98.1 0.0445 802
Columbine 1351 694.8 61/3.78 34.02 1884 104 0.042 829
Carnation 1431 725.1 61/3.89 35.01 1997 108 0.0396 858
Gladiolus 1510.5 765.4 61/4.00 36 2108 114 0.0375 885
Coreopsis 1590 805.7 61/4.10 36.9 2216 120 0.0357 911
Jassamine 1750 886.7 61/4.30 38.7 2442 132 0.0324 962
Cowslip* 2000 1013 91/3.77 41.47 2787 153 0.0286 1032
Sagebrush* 2250 1140 91/3.99 43.89 3166 167 0.0255 1099
Lupine* 2500 1267 91/4.21 46.31 3519 186 0.0229 1163
Bitterrot* 2750 1393 91/4.42 48.62 3872 205 0.0208 1223
Trillium* 3000 1520 127/3.90 50.7 4226 223 0.0193 1271
Bluebonnet* 3500 1773 127/4.22 54.86 4977 261 0.0165 1373

Packing info

Why you choose us?
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
