Tinned Copper Photovoltaic Solar Cable Dc 1.5mm 2.5mm 4mm 6mm 8mm 10mm

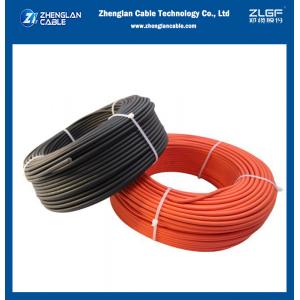

Tinned Copper Photovoltaic Solar Cable Dc 1.5mm 2.5mm 4mm 6mm 8mm 10mm image
Tinned Copper DC Solar PV Wire 1.5MM 2.5MM 4MM 6MM 8MM10MM Solar Cable for Solar Panel
Solar cables are the designated cable used for rooftop PV installations. They are suitable for free hanging, movable, fixed installation and buried in ground in constructional covered systems indoor, outdoor or in hazard explosion areas, in industry and agriculture.
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
Tinned Copper DC Solar PV Wire 1.5MM 2.5MM 4MM 6MM 8MM10MM Solar Cable for Solar Panel CHARACTERISTICS:
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
Tinned Copper DC Solar PV Wire 1.5MM 2.5MM 4MM 6MM 8MM10MM Solar Cable for Solar Panel Technical Date:
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
Tinned Copper DC Solar PV Wire 1.5MM 2.5MM 4MM 6MM 8MM10MM Solar Cable for Solar Panel specification:
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1×16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1×25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1×35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |
Tinned Copper DC Solar PV Wire 1.5MM 2.5MM 4MM 6MM 8MM10MM Solar Cable for Solar Panel images:
We are China Tinned Copper Photovoltaic Solar Cable Dc 1.5mm 2.5mm 4mm 6mm 8mm 10mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 6mm2 photovoltaic solar cable, Photovoltaic Solar Cable, tinned copper 4mm2 pv cable, XLPO Insulation Cu photovoltaic solar cableSimilar Or Related
