Tinned Copper Conductor 500V Silicone Multi Core Cable

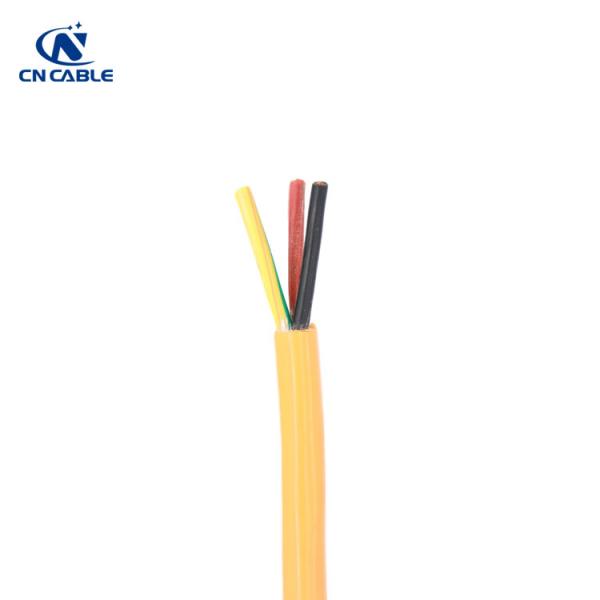

Tinned Copper Conductor 500V Silicone Multi Core Cable image
H05SS-F/H05SST-F Heavy Duty 300/500V Silicone Multi-Core Cable
APPLICATION
The harmonization approval on these cables makes them ideal for export to or use in European countries and markets.
These cables are mainly found in steel mills, foundries, glass factories, baking equipment, burners, heating and lighting systems. The cables have improved characteristics against mechanical stress and are ideal for permanent mechanically protected cable for lighting in industrial applications.
APPLICABLE STANDARD
<HAR> HD 22.15 S1
VDE-0282 Part 15
CABLE CONSTRUCTION
Conductor: Fine tinned copper strands
TECHNICAL DATA
| Working voltage | 300/500V |
| Test voltage | 2000V |
| Flexing bending radius | 7.5×O |
| Static bending radius | 4 x O |
| Temperature range | -60 oC to +180 oC |
| Short circuit temperature | +220 oC |
| Flame retardant | IEC 60332 -1 |
| Insulation resistance | 200 MΩ x km |
| Halogen-free | IEC 60754-1 |
| Low smoke | IEC 60754-2 |
PACKING MATERIAL
Coil, Box, Pallet, Drum
CABLE PARAMETER
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| H05SS-F | ||||||
| 18(24/32) | 2×0.75 | 0.6 | 0.8 | 6.2 | 14.4 | 59.0 |
| 18(24/32) | 3×0.75 | 0.6 | 0.9 | 6.8 | 21.6 | 71.0 |
| 18(24/32) | 4×0.75 | 0.6 | 0.9 | 7.4 | 28.8 | 93.0 |
| 18(24/32) | 5×0.75 | 0.6 | 1.0 | 8.9 | 36.0 | 113.0 |
| 17(32/32) | 2×1.0 | 0.6 | 0.9 | 6.7 | 19.2 | 67.0 |
| 17(32/32) | 3×1.0 | 0.6 | 0.9 | 7.1 | 29.0 | 86.0 |
| 17(32/32) | 4×1.0 | 0.6 | 0.9 | 7.8 | 38.4 | 105.0 |
| 17(32/32) | 5×1.0 | 0.6 | 1.0 | 8.9 | 48.0 | 129.0 |
| 16(30/30) | 2×1.5 | 0.8 | 1.0 | 7.9 | 29.0 | 91.0 |
| 16(30/30) | 3×1.5 | 0.8 | 1.0 | 8.4 | 43.0 | 110.0 |
| 16(30/30) | 4×1.5 | 0.8 | 1.1 | 9.4 | 58.0 | 137.0 |
| 16(30/30) | 5×1.5 | 0.8 | 1.1 | 11.0 | 72.0 | 165.0 |
| 14(50/30) | 2×2.5 | 0.9 | 1.1 | 9.3 | 48.0 | 150.0 |
| 14(50/30) | 3×2.5 | 0.9 | 1.1 | 9.9 | 72.0 | 170.0 |
| 14(50/30) | 4×2.5 | 0.9 | 1.1 | 11.0 | 96.0 | 211.0 |
| 14(50/30) | 5×2.5 | 0.9 | 1.1 | 13.3 | 120.0 | 255.0 |
| 12(56/28) | 3×4.0 | 1.0 | 1.2 | 12.4 | 115.0 | 251.0 |
| 12(56/28) | 4×4.0 | 1.0 | 1.3 | 13.8 | 154.0 | 330.0 |
| 10(84/28) | 3×6.0 | 1.0 | 1.4 | 15.0 | 173.0 | 379.0 |
| 10(84/28) | 4×6.0 | 1.0 | 1.5 | 16.6 | 230.0 | 494.0 |
| H05SST-F | ||||||
| 18(24/32) | 2×0.75 | 0.6 | 0.8 | 7.2 | 14.4 | 63.0 |
| 18(24/32) | 3×0.75 | 0.6 | 0.9 | 7.8 | 21.6 | 75.0 |
| 18(24/32) | 4×0.75 | 0.6 | 0.9 | 8.4 | 28.8 | 99.0 |
| 18(24/32) | 5×0.75 | 0.6 | 1.0 | 9.9 | 36.0 | 120.0 |
| 17(32/32) | 2×1.0 | 0.6 | 0.9 | 7.7 | 19.2 | 71.0 |
| 17(32/32) | 3×1.0 | 0.6 | 0.9 | 8.1 | 29.0 | 91.0 |
| 17(32/32) | 4×1.0 | 0.6 | 0.9 | 8.8 | 38.4 | 111.0 |
| 17(32/32) | 5×1.0 | 0.6 | 1.0 | 10.4 | 48.0 | 137.0 |
| 16(30/30) | 2×1.5 | 0.8 | 1.0 | 8.9 | 29.0 | 97.0 |
| 16(30/30) | 3×1.5 | 0.8 | 1.0 | 9.4 | 43.0 | 117.0 |
| 16(30/30) | 4×1.5 | 0.8 | 1.1 | 10.4 | 58.0 | 145.0 |
| 16(30/30) | 5×1.5 | 0.8 | 1.1 | 12.0 | 72.0 | 175.0 |
| 14(50/30) | 2×2.5 | 0.9 | 1.1 | 10.3 | 48.0 | 159.0 |
| 14(50/30) | 3×2.5 | 0.9 | 1.1 | 10.9 | 72.0 | 180.0 |
| 14(50/30) | 4×2.5 | 0.9 | 1.1 | 12.0 | 96.0 | 224.0 |
| 14(50/30) | 5×2.5 | 0.9 | 1.1 | 14.3 | 120.0 | 270.0 |
| 12(56/28) | 3×4.0 | 1.0 | 1.2 | 13.4 | 115.0 | 266.0 |
| 12(56/28) | 4×4.0 | 1.0 | 1.3 | 14.8 | 154.0 | 350.0 |
| 10(84/28) | 3×6.0 | 1.0 | 1.4 | 16.0 | 173.0 | 402.0 |
| 10(84/28) | 4×6.0 | 1.0 | 1.5 | 17.6 | 230.0 | 524.0 |
We are China Tinned Copper Conductor 500V Silicone Multi Core Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
