THW-90 14 AWG 450/750V 90℃ Building Wire And Cable Stranded Copper Wire

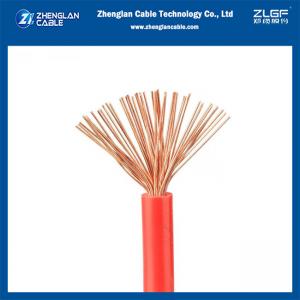

THW-90 14 AWG 450/750V 90℃ Building Wire And Cable Stranded Copper Wire image
THW-90 14 AWG 450/750V 90℃ pvc insulated stranded copper wire NTP 370.252 NTP-IEC 60228
General purpose in industrial and public buildings,Warehouse and all necessary facilities. Usually installed in pipes.
Place of Origin:Henan, China (Mainland)
Brand Name: ZHENGLAN
Model Number: BV
Type: Insulated
Application: fix installation use
Shelf Life: 30 years
Color: Red/Yellow/Blue/Green/Black…
Conductor Material: 99.99% oxygen-free Copper
Conductor Type: Solid type catagory 1 or stranded catagory 2
Insulation Material: PVC
Packaging Details: 100m in coil or other as customized
Descriptions
Code designation: 60227 IEC (International)
Electrical BV Cable Conductor
conductor are solid or stranded, high conductivity plain annealed copper wires meeting the requirements of the class in BS 6360 and IEC 228 specifications for "Conductors in insulated cables with solid copper conductors are offered up to 1 Sq.mm.
Electrical BV Cable Insulation
Halogen free and fire retardant insulation insulation with operation temperature 90℃
A–stands for solid annealed copper class 1; B– stands for Stranded copper, class 2
THW-90 14 AWG 450/750V 90℃ pvc insulated stranded copper wire NTP 370.252 NTP-IEC 60228 reference parameters
| Core number/sectional area(mm²) | Core no./diameter(mm) | Outer diameter(mm) | Weight (kg/km) | 20℃conductor resistance(Ω/km) | ||
| Cu | Al | Cu | Al | |||
| 1×1.5(A) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
| 1×1.5(B) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
| 1×2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 7.41 | 11.80 |
| 1×2.5(B) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
| 1×4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 4.61 | 7.39 |
| 1×4(B) | 7/0.85 | 4.6 | 50.3 | |||
| 1×6(A) | 1/2.76 | 5.0 | 50.3 | 29 | 3.08 | 4.91 |
| 1×6(B) | 7/1.04 | 5.2 | 53.7 | 3.08 | ||
| 1×10 | 7/1.35 | 6.4 | 119 | 62 | 1.83 | 3.08 |
| 1×16 | 7/1.70 | 7.8 | 179 | 78 | 1.15 | 1.91 |
| 1×25 | 27/2.04 | 9.7 | 281 | 118 | 0.727 | 1.20 |
| 1×35 | 27/2.52 | 10.9 | 381 | 156 | 0.524 | 0.866 |
| 1×50 | 19/1.78 | 12.8 | 521 | 215 | 0.387 | 0.641 |
| 1×70 | 19/2.14 | 14.4 | 734 | 282 | 0.268 | 0.443 |
| 1×95 | 19/2.52 | 17.1 | 962 | 385 | 0.193 | 0.320 |
| 1×120 | 37/2.03 | 18.8 | 1180 | 431 | 0.153 | 0.253 |
| 1×150 | 37/2.25 | 20.9 | 1470 | 539 | 0.124 | 0.208 |
| 1×185 | 37/2.52 | 23.3 | 1810 | 666 | 0.0991 | 0.164 |
| 1×240 | 61/2.25 | 26.6 | 2350 | 857 | 0.0754 | 0.125 |
| 1×300 | 61/2.52 | 29.6 | 2930 | 1070 | 0.0601 | 0.100 |
| 1×400 | 61/2.85 | 33.2 | 3870 | 1390 | 0.0470 | 0.0778 |
A–stands for solid annealed copper class 1; B– stands for Stranded copper, class 2
