Three Cores 450V / 750V Fire Resistant Cable Mica Tape PE Insulation PVC Sheath FR Cable

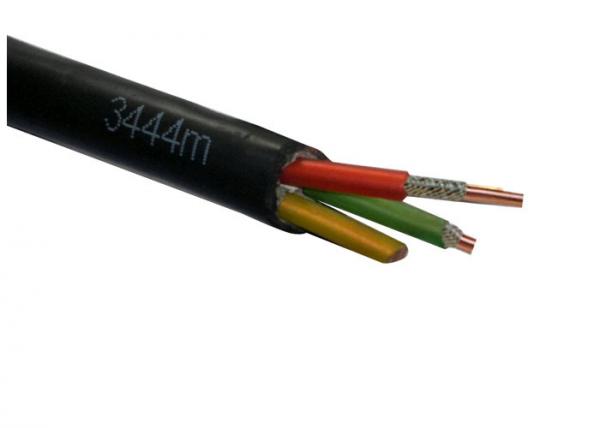

Three Cores 450V / 750V Fire Resistant Cable Mica Tape PE Insulation PVC Sheath FR Cable image
Brand Name :
SHANCABLE
Model Number :
NH-BVV
Certification :
CE/KEMA/ISO
Place of Origin :
SHANGHAI,CHINA
MOQ :
2000m
Price :
0.18-39.8US$/M
Supply Ability :
10KM per Week
Delivery Time :
As per schedule
Packaging Details :
100m/roll or customized
Standard :
IEC60227,IEC60332-1
Color :
Red ,Black,Yellow,Brown,Blue or customized
Size :
1.5mm2 ,2.5mm2,4mm2,6mm2,10mm2
Rated Voltage :
300/500V,450/750V
Insulation :
PE/PVC
Sample :
Free for 1.5 meter
Number of cores :
2,3,4,5
Sheath :
PVC/PE
Function :
FRC
Conductor :
Copper
Three Cores or More 450V / 750V Fire Resistant Cables Mica Tape PE Insulation PVC Sheath FR Cable
Structure
Conductor : Class 1, 2, 5 as per IEC60228 Copper Conductor
Screen: Mica tape
Insulation: PVC or PE
Sheath: PVC/PE/LSOH
Rated Voltage : 450/750V
Standards
International: IEC 60227
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Application
Flexible cable for medium mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in household, kitchens and offices in dry and damp conditions, for inst. washing-machines, dryers, refrigerators etc., as long as the cable is adapted to essential specifications of the device. Also suitable for cookers, i.e. hot devices, on condition that it does not get in direct contact with hot parts of the device and is not exposed to heat irradiation. Suitable for fixed installation in furniture, partition walls, decorative linings and cavities in prefabricated construction elements
Technical Data
Temperature range :
during installationi : +5 °C up to +70 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 – 12 mm
6D for D > 12 mm
Specifications for flexible fire cable wires
| corexsection mm2 | conductor structure | External diameter mm | Insulation thickness mm | Sheath thickness mm | Conductor resistance at 20 °C Ω/km | Specific. el. resistance of insulation at 70°C MΩkm |
| 2×0.75 | 24×0.2 | 5.7-7.2 | 0.6 | 0.8 | 26.0 | 0.011 |
| 2×1 | 32×0.2 | 5.9-7.5 | 0.6 | 0.8 | 19.5 | 0.010 |
| 2×1.5 | 30×0.25 | 6.8-8.6 | 0.7 | 0.8 | 13.3 | 0.010 |
| 2×2.5 | 50×0.25 | 8.4-10.6 | 0.8 | 1.0 | 7.98 | 0.0095 |
| 3×0.75 | 24×0.2 | 6.0-7.6 | 0.6 | 0.8 | 26.0 | 0.011 |
| 3×1 | 32×0.2 | 6.3-8.0 | 0.6 | 0.8 | 19.5 | 0.010 |
| 3×1.5 | 30×0.25 | 7.4-9.4 | 0.7 | 0.9 | 13.3 | 0.010 |
| 3×2.5 | 50×0.25 | 9.2-11.4 | 0.8 | 1.1 | 7.98 | 0.0095 |
| 3×4 | 56×0.3 | 10.5-13.1 | 0.8 | 1.2 | 4.95 | 0.0078 |
| 4×0.75 | 24×0.2 | 6.6-8.3 | 0.6 | 0.8 | 26.0 | 0.011 |
| 4×1 | 32 x 0,20 | 7,1 – 09,0 | 0.6 | 0.9 | 19.5 | 0.010 |
| 4×1.5 | 30 x 0,25 | 8,4 – 10,5 | 0.7 | 1.0 | 13,3 | 0,010 |
| 4×2.5 | 50 x 0,25 | 10,1 – 12,5 | 0,8 | 1.1 | 7,98 | 0,0095 |
| 4×4 | 56 x 0,30 | 11,5 – 14,3 | 0,8 | 1.2 | 4,95 | 0,0078 |
| 4×6 | 84 x 0,30 | 14,7 | 0.8 | 1.2 | 3,30 | 0,0068 |
| 5×0.75 | 24 x 0,20 | 7,4 – 9,3 | 0.6 | 0.9 | 26.0 | 0.011 |
| 5×1 | 32 x 0,20 | 7,8 – 9,8 | 0.6 | 0.9 | 19.5 | 0,010 |
| 5×1.5 | 30 x 0,25 | 9,3 – 11,6 | 0.7 | 1.1 | 13.3 | 0,010 |
| 5×2.5 | 50 x 0,25 | 11,2 – 13,9 | 0.8 | 1.2 | 7,98 | 0,0095 |
Operation Feature
1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;
2. Installing temperature of cable should not be less than 0°C;
3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;
4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
Choose US!
- Advanced connectors & assembly cables machines and testing equipments.
- Large production capacity, short delivery.
- Strict QC checking before delivery.
- OEM/ODM service available, help you on designing.
- Prompt quotation for your inquiry.
- More than 20 years experiences in cable and wire field.
- Professional connector and cable manufacturer, with good quality and competitive price.
- Samples are available for further evaluation and you are highly welcome to visit our factory at any time!!
We are China Three Cores 450V / 750V Fire Resistant Cable Mica Tape PE Insulation PVC Sheath FR Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
