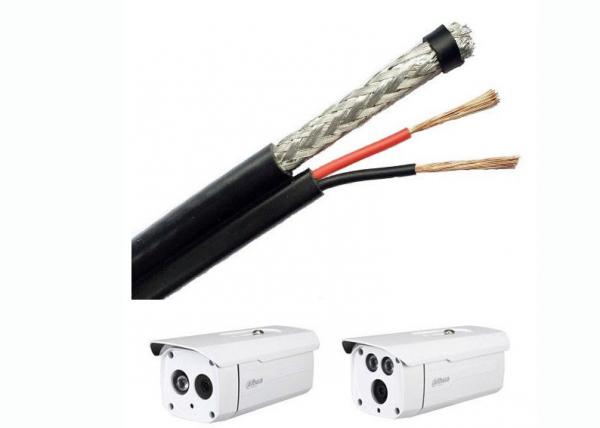

Thick Digital Coaxial Cable , RG59U Siamese Cable For Security Cameras
Thick Digital Coaxial Cable , RG59U Siamese Cable For Security Cameras image
Brand Name :
Shenzhen Chengtiantai
Model Number :
RG 59/U
Certification :
CE,UL& ROHS
Place of Origin :
Guangdong，China（Mainland）
MOQ :
100 units
Price :
on request
Payment Terms :
L/C, T/T
Supply Ability :
50,000 m/day
Delivery Time :
7 / 15 working days
Packaging Details :
coil in box or reel
Conductor :
Bare Copper
2nd Shiled :
Mg-Al Braiding
Insulation :
Foamed PE
power cable :
2 x 0.5
1st Shield :
Aluminum Foil
Jacket Material :
PVC
CCTV Cable RG59/U Type Siamese RG59+2*0.5
|
Siamese Construction:This cable contains 1 coax unit plus 1 pair 0.75 mm2 Unshielded Product Description Coax: Solid bare copper conductor, foam polyolefin insulation, Al-Mg braid shield. Black PVC jacket Pair: Stranded bare copper conductor, PVC insulation, Black PVC jacket. Color coded: Black & Red. Applications: • CCTV • Security Baseband Video |
| Inner conductor | Solid bare copper | 1 x 0.5 mm |
| Dielectric | Low density Polyethylene (PE) | Φ3.50 ± 0.10 mm |
| Inner shield (tape) metaerial | Al foil bonded | 100% coverage |
| Outer conductor (shield) | Al-Mg Braid Wire | 64 x 0.10 mm |
| Shield coverage | – | 86% |
| Sheath | PVC or LSZH |
Φ6.0 ± 0.10 mm |
| Frequency(MHZ) | 1 |
10 |
50 |
100 |
200 |
400 |
700 |
900 |
1000 |
| Attenuation (dB/100m) | 0.98 | 2.76 | 6.17 | 8.89 | 12.92 | 19.19 | 27.62 | 32.24 | 33.46 |
| Attenuation (dB/100ft) | 0.30 | 0.84 | 1.88 | 2.71 | 3.94 | 5.85 | 8.42 | 9.83 | 10.20 |
| Impedance | Capacitance | Velocity of Propagation | frequency range (max.) |
| 75±3Ω | 56 pF/m | 80 % | 3 GHz |
| Frequency(MHZ) | 30-300 MHz | 300-600 MHz | 600-900 MHz |
| Return Loss | >25dB | >24dB | >20dB |
please concact Customer service for packaging and color options
| STOMER SERVICES: | |
|
We manufactures a comprehensive array of wires and cables to meet diverse market needs. we supply a wide range of 75 Ohms RG 6 / U RG 11 / U RG 59 / U cable. For more information please contact Customer service. We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have. |
Shenzhen chengtiantai cable operates certified management systems compliant with: ISO 9001:2008 / ISO 14001:200]4 / OHSAS 18001:2007 ● Cable production started 1983 ● Sales in 2016 about 500 million USD ● 100,000 m2 Production area ● 8 workshop Head office: chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106 |
Note:Copper clad steel(CCS) and LSZH Sheath is also aviable
Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
We are China Thick Digital Coaxial Cable , RG59U Siamese Cable For Security Cameras manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: cctv coaxial cable, Copper Coaxial Cable, satellite coaxial cableSimilar Or Related
-

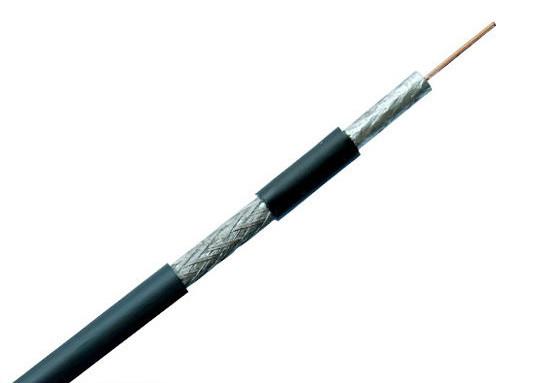

14 AWG Solid Bare Copper Coaxial Cable For Satellite TV Low Density PE Dielectric
-

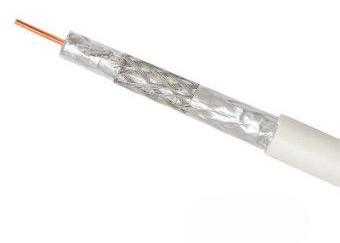

Rg6u Coaxial Cable 75 Ohm , Tri – Shield Satellite Coaxial Cable Foam PE Insulation
-

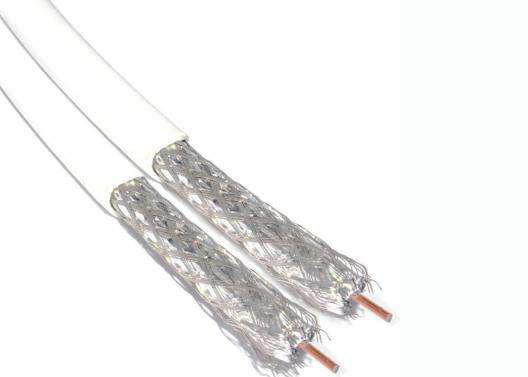

Digital TV Coaxial Cable , Rg59u Twin Coaxial Cable Dual Al Foil + Al-Mg Wire Braid
-

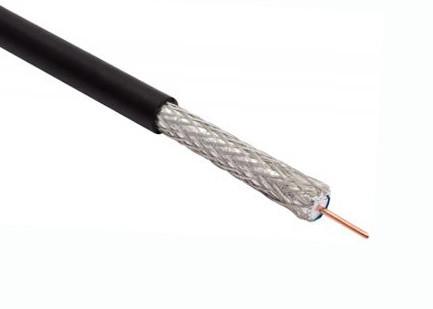

Double Shielded Copper Coaxial Cable RG11 / U 14 AWG Al Foil + Al-Mg Braid Shield
