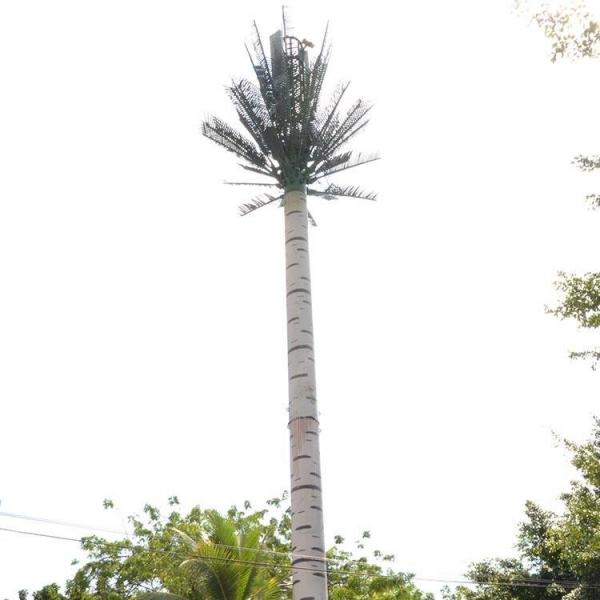

Telecommunication Steel Pipe Tower Optical Fiber Cable Galvanized
Telecommunication Steel Pipe Tower Optical Fiber Cable Galvanized image
Brand Name :
Suntech Tower
Model Number :
Palm Tree Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotitation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Model :
Palm Tree Tower
Item :
Telecommunication Steel Tower
Material :
Steel Q345 Q420
Wind Speed :
110~160km/h_3 second gust
Application :
Telecom Tower
Height :
15m~50m
Optical Fiber Cable Galvanized Telecommunication Steel Pipe Tower
Telecommunication Optical Fiber Cable Galvanized Steel Pipe Tower
Welcome to visit our website. Ningbo Suntech Power Machinery Co.,Ltd. is one of the largest professional manufacturers of transmission line tower in East of China. The company provides various galvanized steel structures, Stringing tools and equipments specialized in 500kV and below the line of power tower, substation structure, communication tower, electrified railway structure,stringing blocks,come clong clamp,gin pole,cable rolles,hydraulic puller tensioner,etc.
We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 80 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
| Telecommunication Tower- Goods description and major parameters | ||
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. |
| 2. Wind speed as per requested by the clients. | ||
| 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. | ||
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR | ||
| 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR | ||
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type | 1. 3 Leg Self supported Angular Towers |
| 2. 3 Leg Self supported Tubular Towers | ||
| 3. 4 Leg Self supported Angular Towers | ||
| 4. 4 Leg Self supported Tubular Towers | ||
| 5. Guyed Mast | ||
| 6. Monopole Tower | ||
| 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree | ||
| 8. RDS Tower: Rapid Deploy Site/Tower | ||
| 9. Rooftop Towers | ||
| 10. Smart Poles | ||
| 10 | Warranty | 1. Tower structures: 10 years |
| 2. Camouflaged towers | ||
| a. Barks: 10 years | ||
| b. Branches and leaves: 3 years | ||
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
| 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light | ||
| 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. | ||
| 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. | ||
| 5. ACDB as per specified by clients | ||
| 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. | ||
| 7. Fall arrest system: GB and CE certificate fall arrest system. | ||
| 8. Optical Fiber Cable: as per specified by client | ||
| 9. Generator: as per specified by client | ||
| 10. Canopy and Generator Cage: as per specified by clients | ||
We are China Telecommunication Steel Pipe Tower Optical Fiber Cable Galvanized manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
