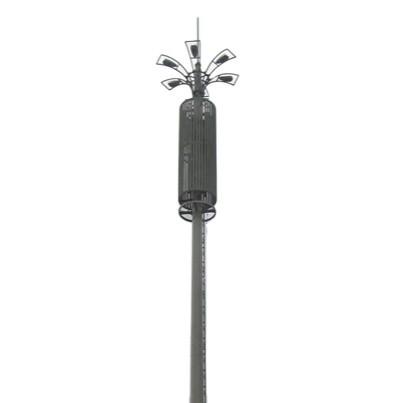

Telecommunication Steel Monopole Tower With Hot Dip Galvanized
Telecommunication Steel Monopole Tower With Hot Dip Galvanized image
Brand Name :
Suntech Tower
Model Number :
Light High Monopole Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Product Name :
Light High Monopole Tower
Material List :
Steel
Height :
10-120m
Surface Treatment :
Hot Dip Galvanized
Wind Speed :
110~160km/h 3 second gust
Usage :
Monopole Tower
Telecommunication Steel Light High Monopole Tower With Hot Dip Galvanized
Quick Detail:
Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This
fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.
As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe
capacity issues on their networks. While new technology and better wireless antennas can help, the best solution
is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more
stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles
and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more
aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.
Monopole advantages:
Small tower footprint and foundation
Fast and easy to erect
Aesthetically pleasing
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in field of electric power more than 26 years.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
FAQ:
1. Are you a manufacturer or a trading company?
We are a professional electrical manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
We are China Telecommunication Steel Monopole Tower With Hot Dip Galvanized manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
