Telecommunication Steel Galvanized Monopole Tower 0 – 80 Meter

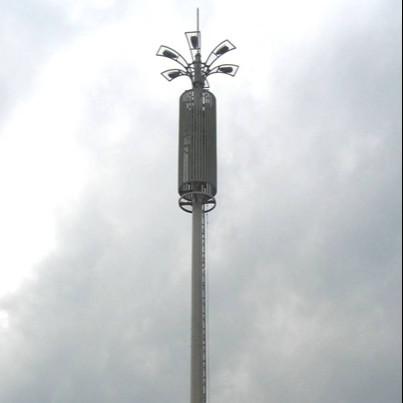

Telecommunication Steel Galvanized Monopole Tower 0 – 80 Meter image
Brand Name :
Suntech Tower
Model Number :
Steel Galvanized Monopole Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Product Name :
Steel Galvanized Monopole Tower
Material List :
Steel Q345 Q245 Q420
Height :
0-80m
Surface Treatment :
Hot Dip Galvanized
Wind Speed :
80~160km/h 3 second gust
Usage :
Monopole Steel Tower
0-80 Meter Telecommunication Steel Galvanized Monopole Tower
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in field of electric power more than 26 years.
Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.
Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles Cell Phone Radios Monopole TowerContainer bag for Connection Bolts.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Quick Detail:
1. Design Code TIA/EIA-222-G/F Structure Steel
2. GradeMild SteelHigh Tensile Steel GB/T 700:Q235B, Q235C,Q235DGB/T1591:Q345B, Q345C, Q3455D,
ASTM A36, ASTM A572, Gr50EN10025: S235JR, S235J0, S235J2EN10025: S355JR, S355J0, S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree operational speed
5. Tension strength (Mpa) 360~510470~630
6. Yield strength (t≤16mm) (Mpa) 355235
7. Elongation (%) 2024
8. Impact strength KV (J) 27(20°C) —Q235B(S235JR)27(20°C)— Q345B(S355JR)27(0°C)— Q235C(S235J0)27(0°C)— Q345C(S355J0)27(-20°C)— Q235D(S235J2)27(-20°C)— Q345D(S355J2)
9. Bolts & Nuts Grade 4.8, 6.8, 8.8
10. Standards formechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933;
11.2 Nuts ISO4032, ISO4034;
11.3 Washers DIN7989, DIN127B, ISO7091
12. Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding (SAW)
We are China Telecommunication Steel Galvanized Monopole Tower 0 – 80 Meter manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 80 Meter Monopole Tower, Galvanized Monopole Tower, Q345 Material Monopole Tower, Telecommunication Steel Tower
