Telecommunication Galvanized Steel Tower 3 Legged Tubular

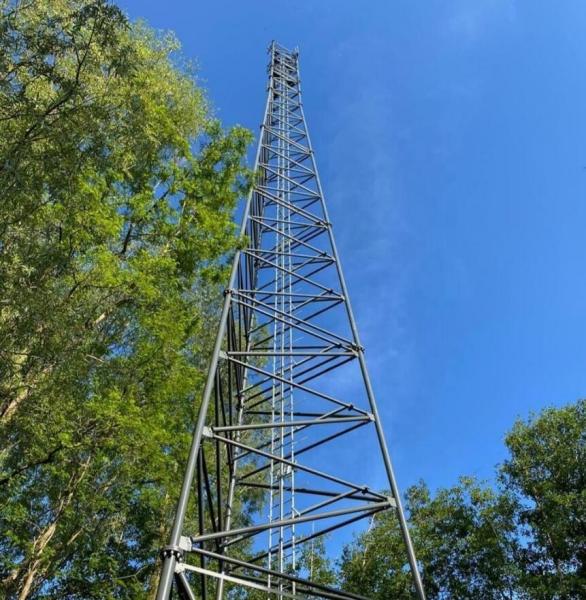

Telecommunication Galvanized Steel Tower 3 Legged Tubular image
Brand Name :
Suntech Tower
Model Number :
Steel Tubular Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after payment
Packaging Details :
Exported Containers
Product Name :
Steel Tubular Tower
Material :
Steel Q235,Q345,Q420
Height :
10-120M
Surface Treatment :
Galvanized
Wind Speed :
110~160km/h_3 second gust
Lifetime :
20-30 years
3 Legged Tubular Telecommunication Steel Galvanized Tower With Brackets,Fall Arrest,Aircraft Warning Light Etc
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.
Monopole tower
Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance,
covering an small area of 9 to 18 square meter, cost – effective , and is adopted by majority of the
construction. Tower body adopt more reasonable section, which is connected through high strength
bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.
Guyed Tower
Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire.
Guyed tower is a common type of communication tower which is economical and practical. It is lighter and
cheaper than the others. It is very suitable for the geographical wide areas.
Self Supporting Tower
Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the
connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading |
1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type |
1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty |
1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories |
1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds
of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting
,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent
standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
We are China Telecommunication Galvanized Steel Tower 3 Legged Tubular manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
