TANO CABLE Aluminum Service Drop Cable Overhead Distribution Line For Construction Sites

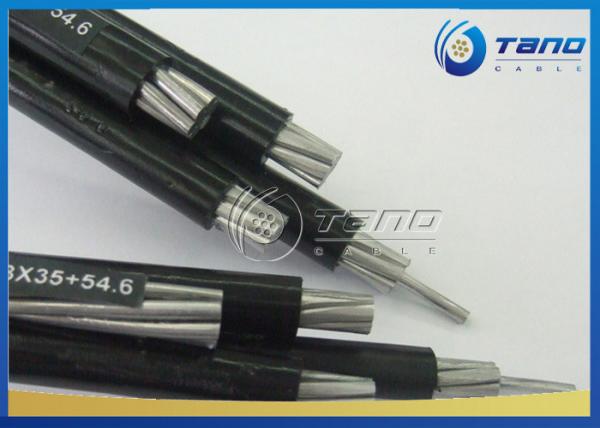

TANO CABLE Aluminum Service Drop Cable Overhead Distribution Line For Construction Sites image
Brand Name :
TANO CABLE
Model Number :
Service drop cable
Certification :
ISO
Place of Origin :
Henan, China (Mainland)
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000KM per month
Delivery Time :
7-20 working days
Packaging Details :
by wooden drum/reel
Key words :
Service Drop Cable
Core :
Triplex
rating voltage :
0.6 / 1kV
Code name :
Lepas
Size :
4/0awg
TANO CABLE 4/0 AWG AAAC Conductor Triplex Aluminum Cable Leps ICEA S-76-474 Overhead Distribution Line
Application
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.
Technical Specification of Overhead Service Drop Aluminum Conductor
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
|||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Equiv. Dia. (AWG)++ |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Minex | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 101 | 101 | 85 | 70 |
| Hippa | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 107 | 107 | 85 | 70 |
| Prawn | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 152 | 152 | 115 | 90 |
| Barnacle | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 160 | 160 | 115 | 90 |
| Shrimp | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 243 | 243 | 150 | 120 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 123.3 | 7 | 4460 | 390 | 390 | 205 | 160 |
| Leda | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 384 | 384 | 205 | 160 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 155.4 | 7 | 5390 | 483 | 483 | 235 | 185 |
| Cyclops | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 474 | 474 | 235 | 185 |
| Flustra | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 587 | 587 | 275 | 215 |
| Lepas | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 728 | 728 | 315 | 245 |

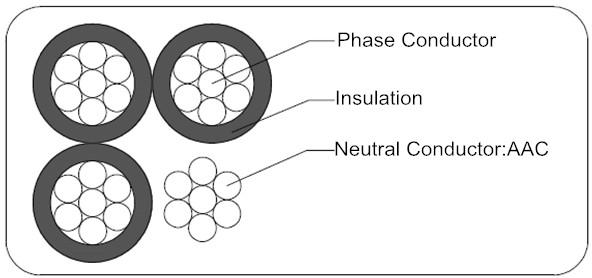

Construction
Phase Conductor: aluminum 1350-H19
Neutral Conductor:Aluminum alloy 6201-T81
Installation:
For service at 600 volts or less (phase to phase) at a maximum conductor temperature of 75C for Polyethylene insulation or 90C for Cross-Linked (XLPE) insulation
Standards of Overhead Service Drop Aluminum Conductor
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
4. Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
FAQ of Overhead Service Drop Aluminum Conductor
Q: How long does it take get my inquiry replied?
A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.
Q: Can I get samples before placing the order?
A: You will get a sample for free if we have the storage of that cable.
Q: What's the MOQ of your cable?
A: The MOQ of our most cable is 500 meters. But if there's any exceptional situation, we can make some negotiations.
We are China TANO CABLE Aluminum Service Drop Cable Overhead Distribution Line For Construction Sites manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
