TACSR-Thermal Resistant Aluminum-alloy Conductor Steel ReinforcedOverhead Conductors, Overhead Transmission Conductor

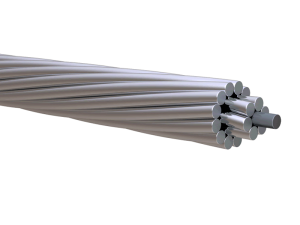

The TACSR (thermal resistant aluminum-alloy conductor steel reinforced) could withstand high tensile load to be used mainly for overhead transmission lines, overhead distribution wires.
The center wire or wires are of galvanized steel and the outer layer or layers of thermal-resistant aluminum-alloy. TACSR conductors are very similar in construction to a conventional ACSR conductor, but the EC Grade aluminum wires are replaced with hard drawn aluminum wires of heat resistant aluminum alloy (generally known as TAL).
JEC 197, JPFEC A 24 ,JEC C 3406 : 1995
Get all the answers to the most frequently asked questions (FAQs) regarding TACSR Conductor chart,TACSR Conductor sizes,TACSR Conductor full form,TACSR Conductor ampacity,TACSR Conductor diameter,TACSR Conductor manufacturers and much, much more.
TACSR Conductor manufactured by GE Cable meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc
| Nominal Cross Sectional Area | No/Dia of Wire | Cross Sectional Area | Approximately | DC Resistance at 20 ℃ , max | Calculated Breaking Load, min | Current Carrying Capacity *) | Standard Delivery Length | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAL Wire | AS Wire | TAL Wire | AS Wire | Total | Overall Dia. | Net Weight | ||||||
| No./mm | mm2 | mm2 | mm2 | mm | kg/km | Ω/km | Kgf | N | A | m | ||
| 58 | 6/3.5 | 1/3.5 | 57.73 | 9.52 | 67.35 | 10.5 | 234 | 0.5050 | 1,980 | 19,423 | 375 | 5,000 |
| 80 | 6/4.2 | 1/4.2 | 83.13 | 13.85 | 96.98 | 12.6 | 336 | 0.3500 | 2,770 | 27,173 | 480 | 5,000 |
| 80 | 15/2.6 | 4/2.6 | 79.64 | 21.24 | 100.88 | 13.0 | 386 | 0.3680 | 3,810 | 37,376 | 470 | 5,000 |
| 95 | 6/4.5 | 1/4.5 | 95.43 | 15.90 | 111.33 | 13.5 | 386 | 0.3050 | 3,180 | 31,195 | 525 | 5,000 |
| 100 | 15/2.9 | 4/2.9 | 99.08 | 26.42 | 125.50 | 14.5 | 480 | 0.2960 | 4,740 | 46,499 | 545 | 5,000 |
| 120 | 15/3.2 | 4/3.2 | 120.64 | 32.17 | 152.81 | 16.0 | 585 | 0.2430 | 5,550 | 54,445 | 620 | 5,000 |
| 120 | 30/2.3 | 7/2.3 | 124.64 | 29.08 | 153.72 | 16.1 | 574 | 0.2370 | 5,460 | 53,562 | 630 | 5,000 |
| 160 | 30/2.6 | 7/2.6 | 159.28 | 37.17 | 196.45 | 18.2 | 734 | 0.1850 | 6,980 | 68,473 | 745 | 3,000 |
| 200 | 30/2.9 | 7/2.9 | 198.16 | 46.24 | 244.40 | 20.3 | 912 | 0.1490 | 8,680 | 85,150 | 860 | 3,000 |
| 240 | 30/3.2 | 7/3.2 | 241.27 | 56.30 | 297.57 | 22.4 | 1111 | 0.1220 | 10,170 | 99,767 | 980 | 2,000 |
| 330 | 26/4.0 | 7/3.1 | 326.73 | 52.83 | 379.56 | 25.3 | 1320 | 0.0901 | 10,940 | 107,321 | 1,190 | 2,000 |
| 410 | 26/4.5 | 7/3.5 | 413.51 | 67.35 | 480.86 | 28.5 | 1674 | 0.0712 | 13,900 | 136,359 | 1,390 | 1,500 |
| 520 | 54/3.5 | 7/3.5 | 519.54 | 67.35 | 586.89 | 31.5 | 1969 | 0.0567 | 15,590 | 152,937 | 1,610 | 1,500 |
| 610 | 54/3.8 | 7/3.8 | 612.42 | 79.39 | 691.81 | 34.2 | 2321 | 0.0481 | 18,380 | 180,307 | 1,795 | 1,000 |
| 680 | 54/4.0 | 7/4.0 | 678.58 | 87.96 | 766.54 | 36.0 | 2572 | 0.0434 | 19,790 | 194,139 | 1,920 | 1,000 |
| 680 | 45/4.4 | 7/2.9 | 684.24 | 46.24 | 730.48 | 35.1 | 2260 | 0.0431 | 15,590 | 152,937 | 1,910 | 1,000 |
| 810 | 45/4.8 | 7/3.2 | 814.30 | 56.30 | 870.60 | 38.4 | 2700 | 0.0362 | 18,460 | 181,092 | 2,145 | 1,000 |
| 1160 | 84/4.2 | 7/4.2 | 1163.77 | 96.98 | 1,260.75 | 46.2 | 3997 | 0.0254 | 27,870 | 273,404 | 2,700 | 500 |
| 1520 | 84/4.8 | 7/4.8 | 1520.03 | 126.67 | 1,646.70 | 52.8 | 5221 | 0.0195 | 36,410 | 357,182 | 3,185 | 500 |
| Note: Continuous operating temperature of conductor = 80 ℃ , Air temperature = 35 ℃ , wind velocity = 0.6 m/sec | ||||||||||||
