Stranded Reinforced Aluminum Alloy Al Conductor DIN

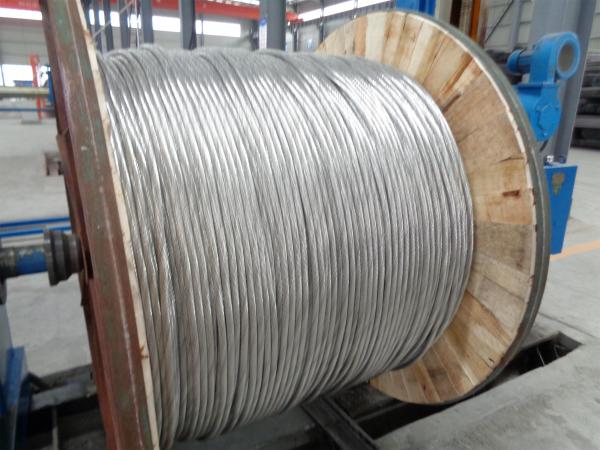

Stranded Reinforced Aluminum Alloy Al Conductor DIN image
Brand Name :
Sanwu
Model Number :
ACAR
Certification :
ISO CCC
Place of Origin :
Henan
MOQ :
1000M
Price :
USD 0.2-20 per meter
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
wooden drums
Conductor :
Aluminum
Core :
Aluminum alloy
Color :
Silver
Insulation :
Bare
Rated Voltage :
0.6-1kv;1-35KV
Application :
Aerial power distribution lines
Service Life :
70 years
Warranty :
1 year
Insulation material :
Bare
Jacket :
Bare
Standard :
ASTM,IEC,IEC60502,BS,DIN
Stranded Bare Aluminum Conductor ACAR Conductor Alloy Reinforced Aluminum Alloy
Our main products: ACSR, AAC, AAAC conductors, ABC cables, power cables, Aluminum rod, etc., in all standard like IEC, ASTM, BS, DIN and CSA. We also provide OEM/ODM service.
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer.
ACAR is an excellent conductor choice where current carrying capacity ,higher strenghth and lower conductor weight are critical to the line design.
| Product Name | Aluminum Conductor Alloy Reinforced (ACAR) |
| Conductor | Aluminum/Copper |
| Construction | Aluminum Stranded & Aluminum Alloy Reinforce |
| Colors | Assorted upon request |
| Voltage | 600-1000V, 1KV-35KV |
| Application | Used as bare overhead conductor for power distribution lines |
| Standards | GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request |
1.Standard
ASTM B524 ,B 230, B 398, IEC61089, etc Application
2.Construction
ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer
3.Features
1. ACAR offers excellent balance mechanical and electrical properties.
2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.
3.It is a compromise choice between AAC,ACSR,and AAAC.
4.It has 1350 designates grade of pure aluminium.
5. It has 6201 designates aluminium alloy grade.
4.Part of ACAR(6201) conductors of ASTM sizes.
| Size Kcmil | Stranding No.& Dia.(In.) | Cross Sectional Area(Square In.) | Nominal Conductor Dia. (In.) |
Nominal weight (Lbs/1000FT) |
Rated Strength ( Lbs) |
|||
| 1350 | 6201 | 1350 | 6201 | Total | ||||
| 503.6 | 15*0.1628 | 4*0.1628 | 0.3122 | 0.0833 | 0.3955 | 0.814 | 473 | 10500 |
| 587.2 | 15*0.1758 | 4*0.1758 | 0.3644 | 0.0971 | 0.4612 | 0.879 | 551 | 12200 |
| 649.5 | 18*0.1325 | 19*0.1325 | 0.2482 | 0.2620 | 0.5102 | 0.927 | 608 | 16600 |
| 653.1 | 12*0.1854 | 7*0.1854 | 0.3240 | 0.1890 | 0.5130 | 0.927 | 612 | 15400 |
| 739.8 | 18*0.1414 | 19*0.1414 | 0.2827 | 0.2983 | 0.5810 | 0.990 | 693 | 18800 |
| 853.7 | 30*0.1519 | 7*0.1519 | 0.5437 | 0.1268 | 0.6705 | 1.063 | 801 | 17500 |
| 853.7 | 24*0.1519 | 13*0.1519 | 0.4349 | 0.2356 | 0.6705 | 1.063 | 800 | 19300 |
| 927.2 | 24*0.1583 | 13*0.1583 | 0.4723 | 0.2559 | 0.7282 | 1.108 | 869 | 20900 |
5.Packaging and Delivery:
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
We are China Stranded Reinforced Aluminum Alloy Al Conductor DIN manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
