Stranded ASTM B231 EN 51082 AAC All Aluminum Conductor

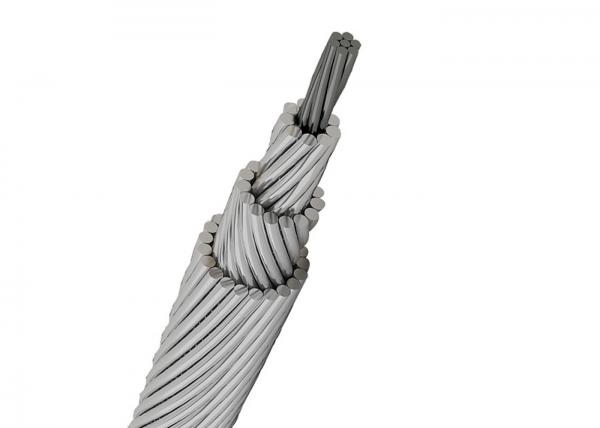

Stranded ASTM B231 EN 51082 AAC All Aluminum Conductor image
Brand Name :
SHANCABLE
Model Number :
AAC
Certification :
ASTM B231, EN 51082
Place of Origin :
China
MOQ :
500 m
Price :
0.19-10.99USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50000 Kilometers per Month
Delivery Time :
15 Days or More
Packaging Details :
Wooden Drum/ Steel Drum
Conductor :
Aluminium
Application :
Overhead Power Line
Type :
High Voltage
No. of Wires :
7pcs/…/61pcs
| Material: | Aluminium | Application: | Overhead Power Line |
|---|---|---|---|
| Sectional Area: | 16mm²/…/800mm² | No. Of Single Wire: | 7pcs/…/61pcs |
| Insulation& Sheatrh: | No | Type: | AAC |
AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC | |||||||
| All Aluminium Stranded Conductors (Class A & Class AA) ASTM B-231 | |||||||
| Code name | Area | Stranding and wire diameter | Approox. Overall diameter | Weight | Nominal breaking load | Nom. DC resistance at 20 deg. | |
| Nominal | Actual | ||||||
| AWG or MCM | mm2 | mm | mm | kg/km | kN | ohm/km | |
| PEACHBELL | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 2.49 | 2.1692 |
| ROSE | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 3.96 | 1.3624 |
| IRIS | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 5.97 | 0.8577 |
| PANSY | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 7.32 | 0.6801 |
| POPPY | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 8.73 | 0.539 |
| ASTER | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 11.00 | 0.4276 |
| PHLOX | 3/0 | 85.03 | 7/3.932 | 11.80 | 234 | 13.47 | 0.339 |
| OXLIP | 4/0 | 107.23 | 7/4.417 | 13.26 | 296 | 16.98 | 0.2688 |
| VALERIAN | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 20.62 | 0.2275 |
| SNEEZEWORT | 250 | 126.71 | 7/4.80 | 14.40 | 349 | 20.07 | 0.2275 |
| LAUREL | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 22.00 | 0.2133 |
| DAISY | 266.8 | 135.16 | 7/4.96 | 14.90 | 373 | 21.41 | 0.2133 |
| PEONY | 300 | 152.0 | 19/3.193 | 15.97 | 419 | 24.03 | 0.1896 |
| TULIP | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 26.95 | 0.1691 |
| DAFFODIL | 350 | 177.35 | 19/3.447 | 17.24 | 489 | 28.04 | 0.1625 |
| CANNA | 397.5 | 201.42 | 19/3.673 | 18.36 | 555 | 31.84 | 0.1431 |
| GOLDENTUFT | 450 | 228.0 | 19/3.909 | 19.55 | 629 | 34.99 | 0.1264 |
| SYRINGA | 477 | 241.68 | 37/2.882 | 20.19 | 666 | 38.49 | 0.1193 |
| COSMOS | 477 | 241.68 | 19/4.023 | 20.12 | 666 | 37.08 | 0.1193 |
| HYACINTH | 500 | 253.35 | 37/2.951 | 20.65 | 698 | 40.35 | 0.1138 |
| ZINNIA | 500 | 253.35 | 19/4.12 | 20.60 | 698 | 38.88 | 0.1138 |
| DAHLIA | 556.5 | 282 | 19/4.346 | 21.73 | 777 | 43.27 | 0.1022 |
| MISTLETOE | 556.5 | 282 | 37/3.114 | 21.79 | 777 | 43.62 | 0.1022 |
| MEADOWSWEET | 600 | 304 | 37/3.233 | 22.63 | 838 | 47.03 | 0.0948 |
| ORCHID | 636 | 322.25 | 37/3.33 | 23.31 | 888 | 49.85 | 0.0894 |
| HEUCHERA | 650 | 329.35 | 37/3.366 | 23.56 | 908 | 50.95 | 0.0875 |
| FLAG | 700 | 354.71 | 61/2.72 | 24.48 | 978 | 51.46 | 0.0813 |
| VERBENA | 700 | 354.71 | 37/3.493 | 24.45 | 978 | 54.87 | 0.0813 |
| NASTURTIUM | 715.5 | 362.58 | 61/2.75 | 24.76 | 1000 | 58.74 | 0.0795 |
| VIOLET | 715.5 | 362.58 | 37/3.533 | 24.74 | 1000 | 56.09 | 0.0795 |
| CATTAIL | 750 | 380 | 61/2.817 | 25.35 | 1048 | 59.85 | 0.0759 |
| PETUNIA | 750 | 380 | 37/3.617 | 25.32 | 1048 | 58.75 | 0.0759 |
| LILAC | 795 | 402.84 | 61/2.90 | 26.11 | 1111 | 63.45 | 0.0715 |
| ARBUTUS | 795 | 402.84 | 37/3.724 | 26.06 | 1111 | 62.32 | 0.0715 |
| SNAPDRAGON | 900 | 456.06 | 61/3.086 | 27.78 | 1257 | 69.78 | 0.0632 |
| COCKSCOMB | 900 | 456.06 | 37/3.962 | 27.73 | 1257 | 68.48 | 0.0632 |
| GOLDENROD | 954 | 483.42 | 61/3.177 | 28.60 | 1333 | 78.96 | 0.0596 |
| MAGNOLIA | 954 | 483.42 | 37/4.079 | 28.55 | 1333 | 72.58 | 0.0596 |
| CAMELLIA | 1000 | 506.71 | 61/3.251 | 29.36 | 1397 | 77.53 | 0.0569 |
| HAWKWEED | 1000 | 506.71 | 37/4.176 | 29.23 | 1397 | 76.08 | 0.0569 |
| LARKSPUR | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 80.12 | 0.055 |
| BLUEBELL | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 78.63 | 0.055 |
| MARIGOLD | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 86.28 | 0.0511 |
| HAWTHORN | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 92.45 | 0.0477 |
| NARCISSUS | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 98.61 | 0.0447 |
| COLUMBINE | 1351.5 | 684.84 | 61/3.78 | 34.01 | 1888 | 104.78 | 0.0421 |
| CARNATION | 1431 | 725.1 | 61/3.89 | 35.03 | 1999 | 107.68 | 0.0398 |
| GLADIOLUS | 1510.5 | 765.35 | 61/4.00 | 35.09 | 2110 | 113.65 | 0.0376 |
| COREOPSIS | 1590 | 805.68 | 61/4.099 | 36.51 | 2221 | 119.64 | 0.0358 |
| JESSAMINE | 1750 | 886.71 | 61/4.302 | 38.73 | 2445 | 131.68 |
0.0325 |
We are China Stranded ASTM B231 EN 51082 AAC All Aluminum Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
