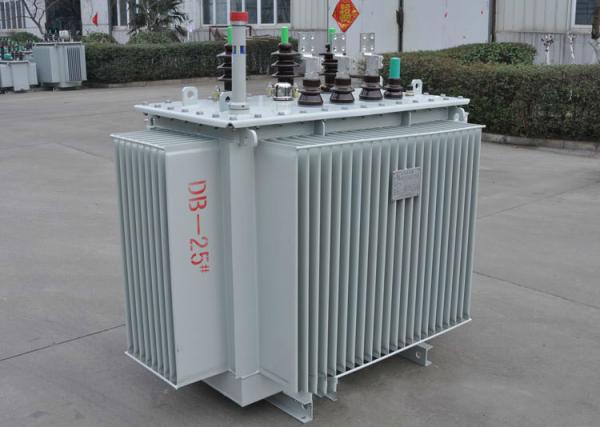

step up transformers 150kva 400v 3kv
step up transformers 150kva 400v 3kv image
Brand Name :
KSI
Model Number :
S9/S11
Certification :
CE
Place of Origin :
China
Quick Details
| Place of Origin: |
China (Mainland)
|
Brand Name: |
KSI
|
Model Number: |
S9/S11
|
| Usage: |
Power
|
Phase: |
Three
|
Coil Structure: |
Toroidal
|
| Coil Number: |
Three
|
Product feature: |
power transformer
|
Type: |
Oil-immersed type
|
| Standard: |
IEC60076
|
Rated capacity: |
150kva
|
Primary Voltage: |
400V~3KV
|
| Frequency: |
50HZ or 60HZ
|
Winding material: |
Copper or aluminum
|
Vector Group: |
Dyn11, Yyno, etc.
|
| OEM: |
Accepted
|
Color: |
customized
|
Packaging & Delivery
| Packaging Details: | plywood case, container |
Step up transformers 150kva 400v 3kv
Our transformers sell well all over the world, with buyers from Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa, etc.We will provide more high-quality products and services for you in the future!
1.Primary Voltage:6kv,11kv,15kv,22kv,33kv,35kv,40.5kv
2.Second Voktage:0.4kv
3.Tapping:± 5%, ± 2× 2.5%
4.Frequency:50Hz; 60Hz
5.Connection:Yyn0, Dyn11,etc
Ambient temerature: then highest temperature+40°C, the highest monthly mean temperature+30°C;
The lowest temperature-10°C, the highest yearly mean temperature+20°C
| Rated capacity(KVA) | Load loss(KW) | No-load loss(KW) | No-load current(%) | Overall weight(kg) | Dimension(mm) |
| 10 | 0.26 | 0.09 | 3.2 | 172 | 915x450x935 |
| 20 | 0.44 | 0.1 | 3.0 | 230 | 915x450x975 |
| 30 | 0.63 | 0.13 | 2.3 | 275 | 930x587x995 |
| 50 | 0.91 | 0.17 | 2.0 | 360 | 995x595x1035 |
| 63 | 1.09 | 0.2 | 1.9 | 415 | 1020x75x1050 |
| 80 | 1.31 | 0.25 | 1.9 | 470 | 1035x750x1095 |
| 100 | 1.58 | 0.29 | 1.8 | 545 | 1040x760x1145 |
| 125 | 1.89 | 0.34 | 1.7 | 640 | 1080x770x1210 |
| 160 | 2.31 | 0.4 | 1.6 | 745 | 1120x785x1230 |
| 200 | 2.73 | 0.48 | 1.5 | 880 | 1210x810x1270 |
| 250 | 3.20 | 0.56 | 1.4 | 1035 | 1270x825x1420 |
| 315 | 3.85 | 0.67 | 1.4 | 1220 | 1310x840x1490 |
| 400 | 4.52 | 0.8 | 1.3 | 1405 | 1365x1010x1525 |
| 500 | 5.41 | 0.96 | 1.2 | 1655 | 1395x1025x1590 |
| 630 | 6.2 | 1.2 | 1.1 | 1975 | 1515x1060x1625 |
| 800 | 7.5 | 1.4 | 1.1 | 2355 | 1850x1180x1780 |
| 1000 | 10.30 | 1.7 | 1.0 | 2715 | 1890x1350x1840 |
| 1250 | 12.00 | 1.95 | 1.0 | 3335 | 1845x1420x1890 |
| 1600 | 14.5 | 2.4 | 0.8 | 3855 | 2295x1400x1980 |
| Low voltage products: | 7 days |
| Medium voltage products: | 7 days |
| High voltage products: | 7 days |
| Payment: | T/T or L/C |
| Port: | NA |
| Packing: | Plywood case |
1.Your inquiry related to our product & price will be replied within 24 hours
2.Well-trained & experienced staff are to answer all your inquiries in English
3.Working time: 8:00am ~17:45pm, Monday to Saturday(UTC+8)
4.Perfect after-sale service, quick reponse
5.Your business relationship with us will be confidential to any third party
If you want to know more about us,Please kindly contact with me at any time:
Tell:+86-15140416961
Whatsapp:+86-15140416961
Skype:merryjiangli1129@sina.cn
QQ:445260894
Wechat:qq-572708227
Emai:Letitia@ksipower.com
We are China step up transformers 150kva 400v 3kv manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
