Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV

Steel Tape Armoured Low Smoke Zero Halogen Cable For Power Distribution 3.6/ 6 KV image

Get a Quote Email to us

Brand Name :
Chengtiantai

Model Number :
YJV22-3.6/6-3C

Certification :
CE, ISO, IEC

Place of Origin :
Shenzhen, China (mainland)

MOQ :
500 m

Price :
On Request

Payment Terms :
L/C, T/T

Supply Ability :
18,000 m per month

Delivery Time :
7/15 working days

Packaging Details :
Iron wooden drum or as required

Nominal Voltage :
3.6/6 kV

Insulation :
XLPE

No. of Conductor :
3 core

Sheath :
PVC Compound

Conductor Material :
Bare Copper Class 2

Manufacturer :
Shenzhen Chengtiantai

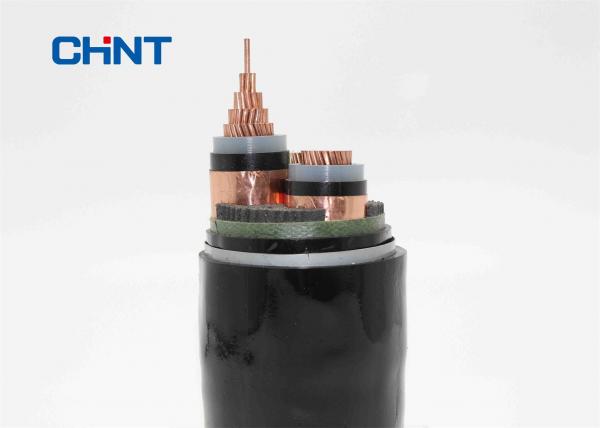

3,6/ 6 kV 3 core XLPE Insulated LSZH SHEATHED Steel Tape Armoured 3 core

Annealed Stranded Copper Conductor,XLPE Insulation,Copper Tape Screened, Core laid up, PVC Innersheathed, Armoured and PVC outer sheathed power cable.

The 3 cores cables are designed for distribution of electrical power with nominal voltage Uo/ U:3.6/6 KV and frequency 50Hz.

CONSTRUCTION:

1. CONDUCTOR

– Bare copper class 2 to IEC 60228, round, multiwire stranded and compact

2. CONDUCTOR SCREEN

– Inner semi-conducting coating

3. INSULATION

– Core insulation of cross-linked polyethylene (XLPE)

4. INSULATION SCREEN

– Outer conductive layer extruded and per-manently welded with the core insulation

Semi-conducting type
– Over the outer semi-conducting layer, a semiconducting tape must be used.

5. METAL SCREEN

– copper tapes helically with a minimum thickness of 0,1 mm.

6. FILLER

– PP filler

7. WRAPPING TAPE

INNER SHEATH

– LSZH Compound

ARMOR WITH

– Galvanized Double Steel Tape minimum thickness of 0,1 mm

8. SHEATH

– Outer sheath of LSZH compound

Core identification:

– colored tapes under screen.

STANDER

International:IEC60502-2

National:GB/T 12706.1-2008

TECHNICAL DATA

Temperature range
– during installation up to -5°C

Operating temperature
– max. +90°C

Short circuit temperature
+250°C (short circuit duration max. 5 s)

Minimum bending radius
– 15 x cable Ø

Nominal voltage
– U0/U 3.6/6 kV

Operating voltage, 50 Hz
– for 3.6/6 kV = max. 7.2 kV

Test voltage(V/5 min)
– for3.6/6 kV = 12 kV

Breaking strength:

– min. 200%
Tensile strength:

– min. 12,5 N/mm²

3.6/ 6 kV XLPE Insulated, Copper conductor, single core, screened, PVC sheathed

No.cores x cross-sec.	Insulation thickness	Inner Sheath thickness	Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃
mm²	mm	mm	mm	mm	kg / km	A	A
3 x 35	2.5	1.3	2.3	43.5	2993	144	181
3 x 50	2.5	1.3	2.4	46.5	3601	172	215
3 x 70	2.5	1.4	2.5	49.3	4368	213	263
3 x 95	2.5	1.4	2.6	54.3	5348	261	315
3 x 120	2.5	1.5	2.8	57.9	6303	301	358
3 x 150	2.5	1.6	2.9	61.7	7405	341	402
3 x 185	2.5	1.6	3.0	65.4	8646	392	456
3 x 240	2.6	1.7	3.2	70.7	10573	459	527
3 x 300	2.8	1.8	3.4	77.3	12779	532	599
3 x 400	3.0	2.0	3.7	88.1	17225	624	685

*Dimensions and specifications may be changed without prior notice.

MEDIUM VOLTAGE CABLE TESTING

Routine tests:	Sample tests:	Type tests:
These non-destructive tests are normally carried out on all lengths manufactured. – Conductor resistivity – Spark test on oversheath – Voltage tests on sheath – D.C. voltage test on oversheath	These potentially destructive tests are normally carried out on every production run. – Examination of conductor and dimensions – Hot set test for XLPE insulation – Insulation and oversheath thickness – Four hour voltage test	These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design. – Electrical type tests including bending and heat cycle – Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.

PACKING AND SHIPPING

Packing: steel wooden drum, other as required ; standard delivery length is 300 m

Packaging details :		Delivery :

Steel Wooden Drums	Cable Drum In container	shipped in 15 days after payment

Cable Drum Data

CABLE DRUMS	D1=Flange Diameter(mm)	W=Useful Width (mm)	D2=Barrel Diameter(mm)
	1000	700	500
	1100	700	550
	1200	700	600
	1400	750	710
	1600	900	900
	1800	1120	1000
	2400	1150	1300

Delivery Port:


Port of Shenzhen	Port of Hongkong	Port of Guangzhou

Our production in numbers

● Cable production started 1983
● 35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

● 100,000 m² Production area
● 350 Will-trained employees
● Exported more than 22 countries
● 2 Manufacturing plant
● 1 R&D Center

● 200 Sets Of Testing Equipment

● 100 Testing Items
● 8 workshop
● 40 wire drawing machines
● 10 bunching machines
● 28 Extruder system
● 42 stranding machines
● 10 Braiding machines

Shenzhen chengtiantai cable operates certified management systems compliant with:

	Certificat	Information
	ISO 9001:2008 Quality management systems	Certificat ISO 9001:2008 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019
	ISO 14001:2004 Environmental management systems	Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019
	OHSAS 18001:2007 Assessment specification for occupational health & safety management systemsenvironmental management systems	Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019

Manufacturing Process Of Medium Voltage Power Cable


1. copper rod	2. wire drawing	3. wire stranding

4.Triple Extrusion Insulation	5.Screening Process	6. outer covering Process

7. Sheath Marking	8. Packing	9. Partial discharge Inspection

Some great shot on our manufacturing plant

Located in: Chengtiantai Industrial Park, Guangming New District, Shen zhen P. R. China 518106

Customer services:

RECOMMENDED ORDERING PARAMETERS

CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 – International or Special Standard. (Alternatively, the precise usage of the cable.)
2 – Rated voltage.
3 – Copper or Aluminium conductors.
4 – Size of each conductor.
5 – Insulation material : XLPE or others.
6 – Number and identification of conductors.
7 – Other requirements.
8 – Packing.
9 – Required delivery time.
10 – Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : [email protected]
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106

WARRANTY

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
