Steel Q345 Monopole Communication Tower Hot Dip Galvanized

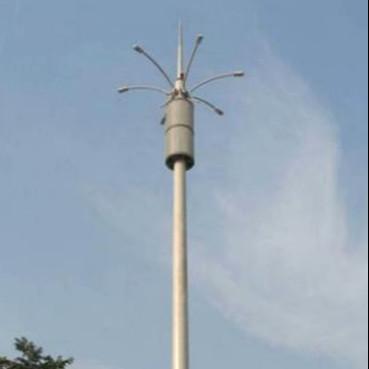

Steel Q345 Monopole Communication Tower Hot Dip Galvanized image
Brand Name :
Suntech Tower
Model Number :
Steel Light High Monopole Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Product Name :
Steel Light High Monopole Tower
Material List :
Steel Q345 Q245 Q420
Height :
10-150m
Surface Treatment :
Hot Dip Galvanized
Wind Speed :
110~180km/h 3 second gust
Usage :
Monopole Tower
Communication Steel Light High Monopole Tower With Related Accessories And Hot Dip Galvanized
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.
Our group branch company and factory have already engaged in field of electric power more than 26 years
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.
Technical Data
| Design | ||
| 1. Design Code | TIA/EIA-222-G/F | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
| 3. Design Wind Speed | Up to 250 km/h | |
| 4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| 7. Elongation (%) | 20 | 24 |
| 8. Impact strength KV (J) | 27(20°C)—Q235B(S235JR) | 27(20°C)—Q345B(S355JR) |
| 27(0°C)—Q235C(S235J0) | 27(0°C)—Q345C(S355J0) | |
| 27(-20°C)—Q235D(S235J2) | 27(-20°C)—Q345D(S355J2) | |
| Bolts & Nuts | ||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 11. Standards for Dimensions | ||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |
| 11.2 Nuts | ISO4032, ISO4034 | |
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |
| Welding | ||
| 12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
| 13. Standard | AWS D1.1 | |
| Marking | ||
| 14. Method of marking of the members | Hydraulic Press Stamping | |
| Galvanizing | ||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
| Test | ||
| 17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
| Capacity | ||
| 18. Maximum Production Capacity | 50,000 TON per annum | |
We are China Steel Q345 Monopole Communication Tower Hot Dip Galvanized manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Hot Dip Galvanized Monopole Communication Tower, Q245 Material Monopole Tower, Steel Q345 Monopole Communication Tower, Telecommunication Steel Tower
